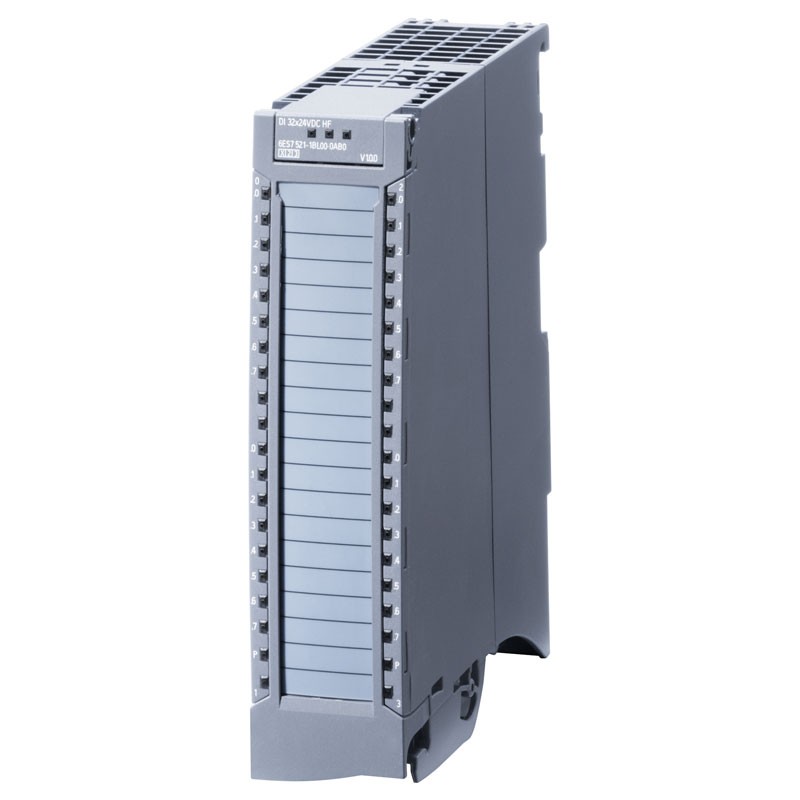

Siemens Simatic S7-1500 DI 32X24VDC HF Digital Input Module 6ES75211BL000AB0
SIE 6ES75211BL000AB0
4025515080015
Siemens Simatic S7-1500 DI 32X24VDC HF digital input module 32 channels in groups of 16; of which 2 inputs can be used for counting; input delay 0.05..20ms input type 3 (IEC 61131); diagnostics; process interrupt: front connector (screw terminals or push-in) to be ordered separately.
Siemens Simatic S7-1500 DI 32X24VDC HF Digital Input Module 6ES75211BL000AB0
€444.78
Tax included
€444.78
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 45
: 25
Features:
- DI 32x24VDC HF product type designation.
- Hardware version from FS04
- Firmware version V2.2.1 - FW upgrade possible Yes
- Product function I&M data Yes; I&M0 ... I&M3 - Clock synchronized operation Yes - Prioritized start Yes
- Engineering with: STEP 7 TIA Portal plannable/integrated from version V13 SP1 / - STEP 7 plannable/integrated from version V5.5 SP3 / - PROFIBUS from version GSD/revision GSD V1.0 / V5.1 PROFINET from version GSD/revision GSD V2.3 / -
- Operating mode DI Yes - Counter Yes - Oversampling No - MSI Yes
- Supply voltage: Nominal value (DC) 24 V - Permissible range, lower limit (DC) 19.2 V - Permissible range, upper limit (DC) 28.8 V - Reverse polarity protection Yes
- Current consumption, max. 40 mA; 20 mA per group at DC 24 V supply voltage
- Power withdrawal from the backplane bus 1.1 W
- Power loss, typ. 4,2 W
- Digital inputs: Number of inputs 32 - Digital inputs can be parameterized Yes - Reading on m/p Reading on P - Input characteristic according to IEC 61131, Type 3 Yes
- Dimensions Width 35 mm - Height 147 mm - Depth 129 mm
- Weight 260 g.
There are no reviews
Data sheet
- Type:
- Digital Input Modules
