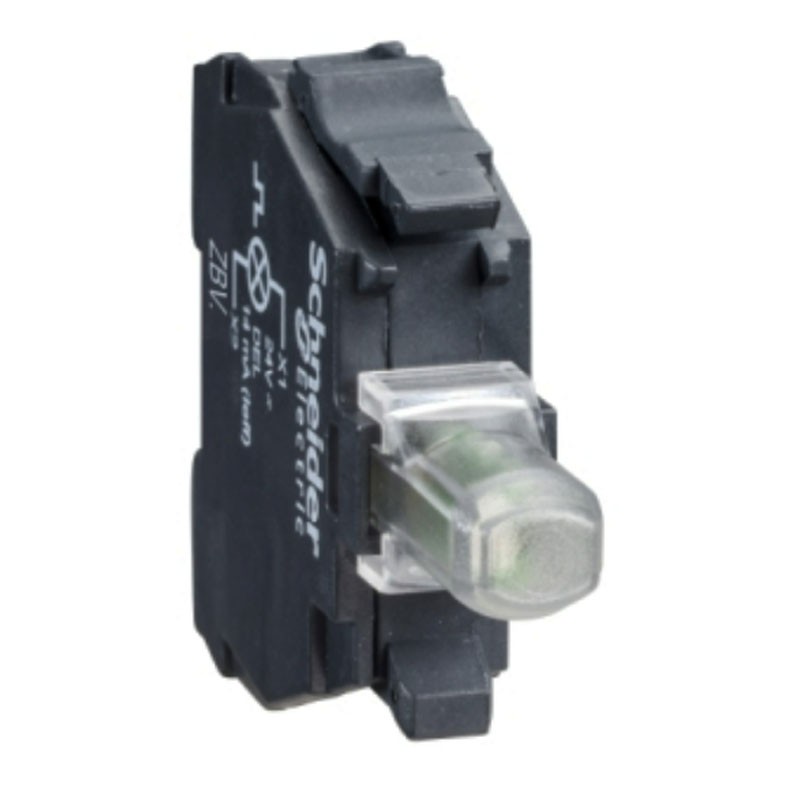

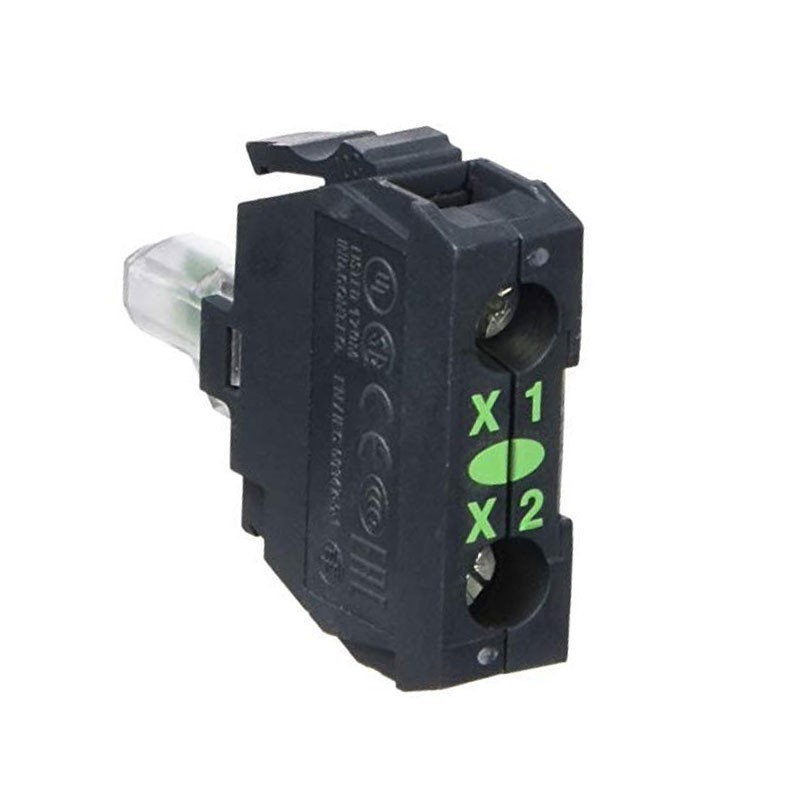

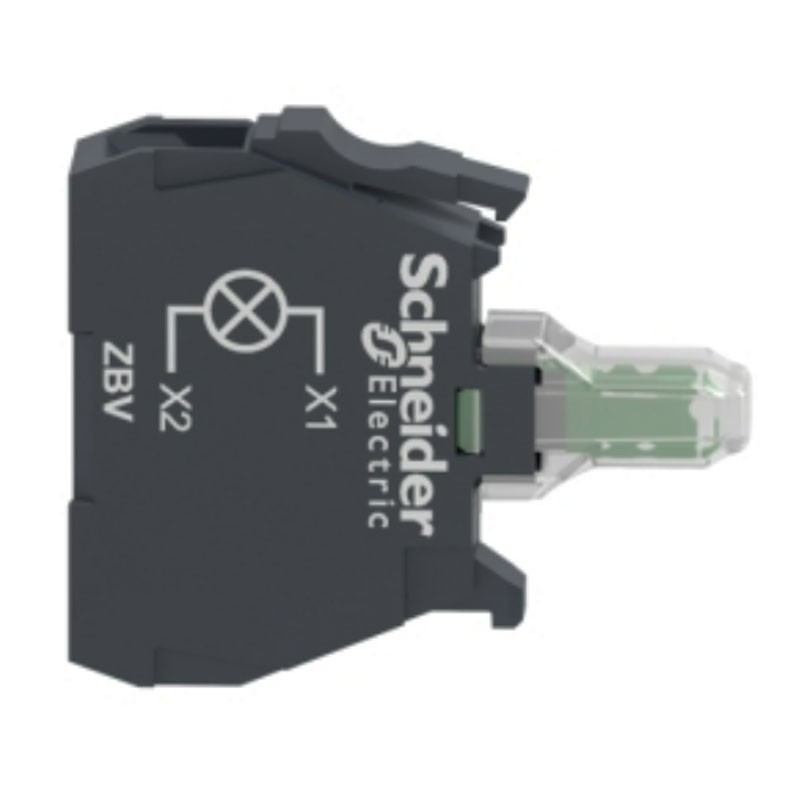

Schneider Telemecanique bright green LED element 230V ZBVM3
SNR ZBVM3
3389110090055
Schneider Telemecanique green LED light element with the following characteristics:
- Rated supply voltage [Us] 230...240V AC at 50/60 Hz
- Signaling type: fixed
- Light source: integrated LED
- Lamp socket: LED
- Light element power supply: direct
- Light source color: green
- Weight: 0.017 grams
- Tightening torque: 0.8 to 1.2 Nm in accordance with EN 60947-1
- Supply voltage limits: 195 to 264 V AC
- Power consumption 14 mA
Schneider Telemecanique bright green LED element 230V ZBVM3
€13.46
Tax included
€13.46
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 10
Pay in installments with Klarna
Schneider Electric's Harmony XB4 XB5 light element is green in color and operates with an integrated LED.
Advantages:
- It is powered from 230 to 240 V AC and uses screw terminals.
- It has a plastic body. This light element makes it easy and quick to replace and configure signaling units
- Can be easily installed and replaced on compatible selection units or light buttons by snap-on mounting and connected with simple screw connections
- Allows signaling units to be visually distinguished through integrated LED illumination
- Protects operators from accidental contact with live circuits through its IP20 rating
Connections-clamps:
- Screw fastening terminals, <= 2 x 1.5 mm² with cable end complying with EN 60947-1
- Screw fastening terminals, >= 1 x 0.22 mm² without cable end complying with EN 60947-1
Head shape (screw):
- Phillips head compatible with Philips no 1 screwdriver
- Phillips head compatible with pozidriv No 1 screwdriver
- Slot compatible with plate Ø 4 mm screwdriver
- Slotted compatible with Ø 5.5 mm screwdriver plate
Electrostatic discharge resistance:
- 6 kV on contact (on metal parts) in accordance with IEC 61000-4-2
- 8 kV in free air (in insulating parts) complies with IEC 61000-4-2
Other technical characteristics:
- Lifespan: 100000 hours at rated voltage and 25 °C
- Overvoltage resistance 1 kV complying with IEC 61000-4-5
- Contact or luminous element mounting: direct front mounting on pushbutton
- TH protection treatment
- Storage temperature: -40/+70 °C
- Operating ambient temperature: -40/+70 °C
- IP degree of protection: IP20 in accordance with IEC 60529
- Fast transient resistance: 2 kV complying with IEC 61000-4-4
- Electromagnetic field resistance: 10 V/m complying with IEC 61000-4-3
- Electromagnetic emission: Class B in accordance with IEC 55011
There are no reviews
Data sheet
- Type: Lamp holder
