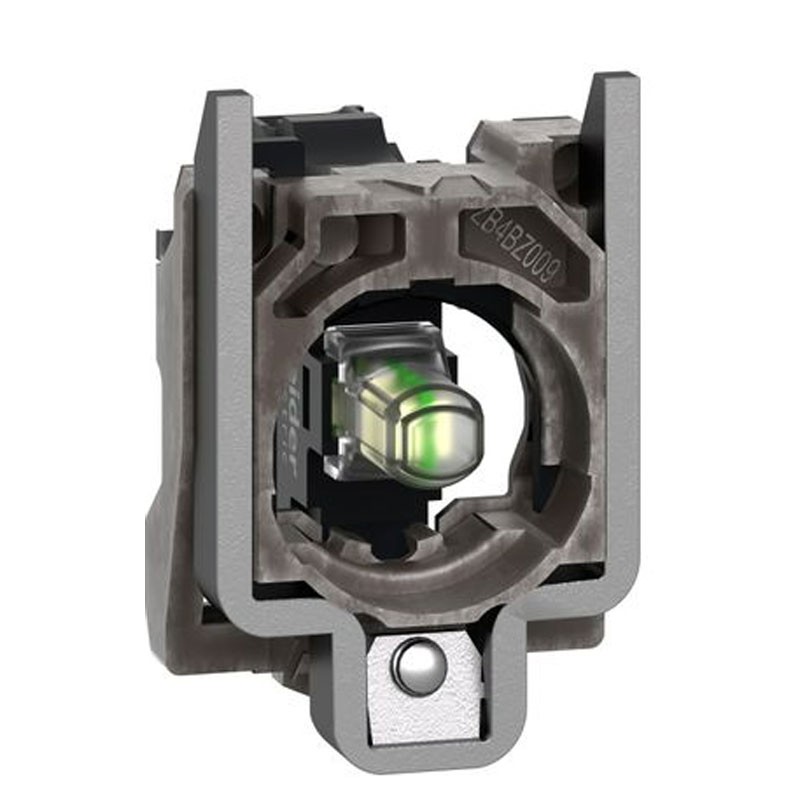

Telemecanique Body with White LED Indicator Lamp 240VAC ZB4BVM1
SNR ZB4BVM1
3389110892482
Schneider body for Indicator Lamps, with the following features:
- Fixing base material: Zamak
- Connections-clamps: Screw clamps, <= 2 x 1.5 mm² with cable end, Screw clamps, > = 1 x 0.22 mm² without cable end
- Light source: universal LED
- Lamp socket: LED
- Light source color: white
- Rated supply voltage [Us]: 230...240 V AC at 50/60 Hz
- CAD total width 30 mm
- Total CAD height 47 mm
- Total CAD depth 37 mm
Telemecanique Body with White LED Indicator Lamp 240VAC ZB4BVM1
€12.07
Tax included
€12.07
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 55
: 34
Frequently bought together
Schneider Electric's Harmony XB4 light element with fixing body/base is white and operates with a universal LED.
It is powered from 230 to 240 VAC/DC and uses screw terminals. It has a metal body and is compatible with Harmony XB4 indicator lamps. This light element allows for quick and easy replacement and configuration of warning units. It can be easily installed and replaced on compatible selector units or light buttons by snap-on mounting and connected with simple screw connections. Allows signaling units to be visually distinguished through integrated LED illumination. Protects operators from accidental contact with live circuits through its IP20 rating.
Head shape (screw):
- Phillips head compatible with Philips no 1 screwdriver
- Phillips head compatible with pozidriv No 1 screwdriver
- Slotted compatible with Ø 4 mm plate screwdriver
- Slotted compatible with plate Ø 5.5 mm screwdriver
Other Specifications:

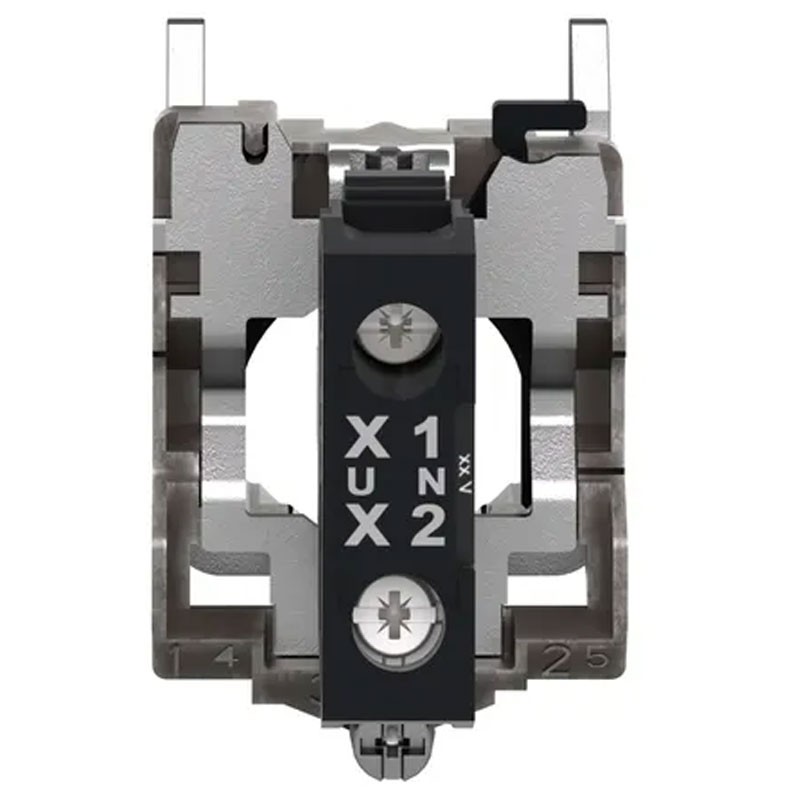

- Description ISO clamps No. 1 (X1-X2)PL
- Weight 0.054 kg
- Tightening torque: 0.8 to 1.2 Nm in accordance with EN 60947-1
- Rated insulation voltage [Ui]: 600 V (pollution degree 3) in accordance with EN 60947-1
- Rated impulse withstand voltage [Uimp]: 6 kV complies with EN 60947-1
- Signaling type: Fixed
- Protection treatment: TH
- Storage temperature: -40...70 °C
- Ambient temperature: -40...70 °C
- Protection class against electric shock: Class I in accordance with IEC 60536
- Vibration resistance: 5 gn (F= 2...500 Hz) in accordance with IEC 60068-2-6
- Shock resistance: 30 gn (duration = 18 ms) for half-sine-wave acceleration complies with IEC 60068-2-27, 50 gn (duration = 11 ms) for half-sine-wave acceleration complies with IEC 60068-2-27
- Fast transient resistance: 2 kV in accordance with IEC 61000-4-4
- Resistance to electromagnetic fields: 10 V/m complying with IEC 61000-4-3
- Electrostatic discharge resistance: 6 kV on contact (on metal parts) complies with IEC 61000-2-6, 8 kV in free air (in insulating parts) complies with IEC 61000-2-6
- Electromagnetic emission: Class B in accordance with IEC 55011
- Signaling type: Fixed
- Power consumption 14 mA
- Service life: 100000 hours at rated voltage at 25 °C
- Overvoltage resistance: 1 kV complying with IEC 61000-4-5
Data sheet
- Type:
- Lamp holder
