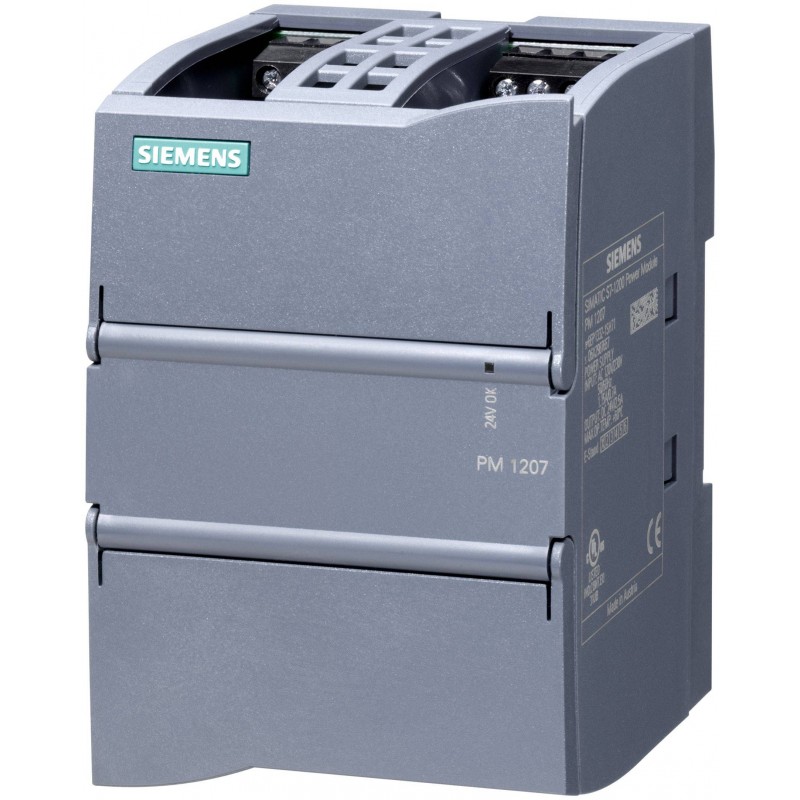

Siemens switching power supply unit SIMATIC 1F/24VDC 2.5A 6EP13321SH71
SIE 6EP13321SH71
4025515152446
Siemens stabilized switching power supply SIMATIC S7-1200 Power Modul PM1207, with the following characteristics:
- Power grid form: single-phase AC
- Supply voltage with AC: initial value automatic field switching
- Supply voltage: 1 with AC rated value 120V - 2 with AC rated value 230V
- Input voltage: 1 with AC 85 ... 132V - 2 with AC 176 ... 264V
- Rated frequency: 50/60 Hz
- Wide-range input execution No
- Overvoltage surge capability 2.3 x Ue nom, 1.3 ms
- Operating condition of plugging due to lack of line voltage With Ue = 93/187V
- Buffer time with nominal value of output current in case of mains voltage failure min. 20 ms
Siemens switching power supply unit SIMATIC 1F/24VDC 2.5A 6EP13321SH71
€150.21
Tax included
€150.21
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 37
Pay in installments with Klarna
Other technical characteristics:
- Operating condition of mains voltage failure plugging: With Ue = 93/187V
- Input current: with nominal value of input voltage 120V 1.2A - with nominal value of input voltage 230V 0.67A
- Current limitation of the inrush current at 25°C max. 13A
- Duration of inrush current limitation at 25 °C max. 3 ms
- I2t value max. 0.5 A²-s
- Degree of protection: IP20
- Output: voltage curve shape on the output potential-free regulated DC voltage
- Output voltage with DC nominal value 24V
- Voltage on output 1 with DC nominal value 24V
- Output current: rated value 2.5A
- Rated range 0 ... 2,5A
- Efficiency efficiency: 83 %
- Power dissipated with rated value of output voltage with rated value of output current tip: 12W
- Active power exported tip 60W
- Equipment protection class: class I
- Leakage current: max 3.5 mA
- Net weight: 0.3 kg
- Width of housing 70 mm
- Housing height 100 mm
- Depth of housing 75 mm
- Type of mounting: mounting on standardized EN 60715 35x7.5/15 profile rail Wall mounting
- MTBF at 40 °C 1 492 537 h
Ambient temperature:
- During operation 0/+60 °C; with natural convection (self-convection)
- During transport -40/+85 °C
- During storage -40/+85 °C
There are no reviews
Data sheet
- Type: Power supplies
