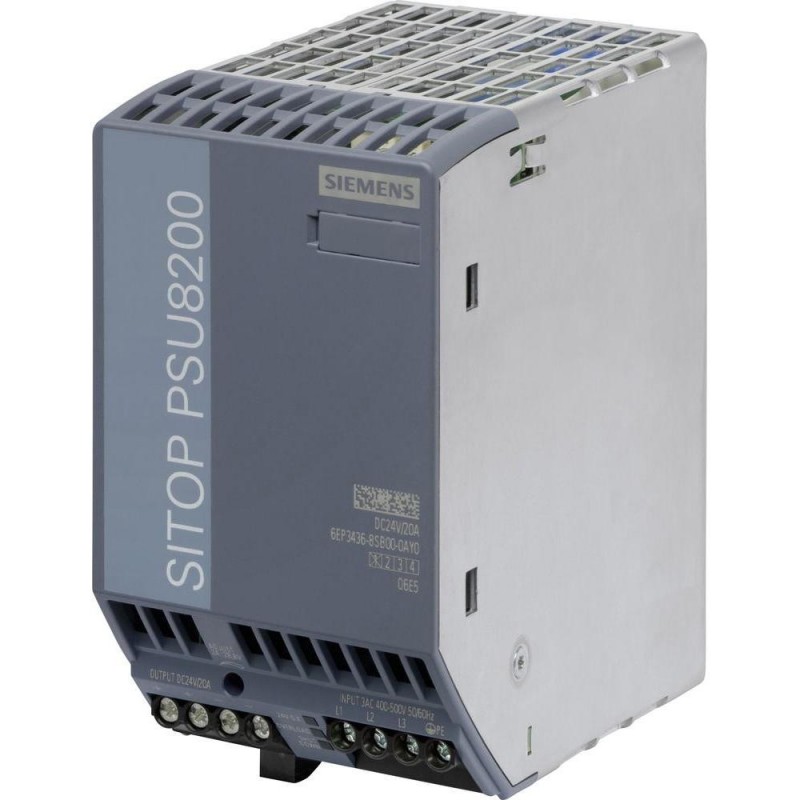

Siemens switching power supply SITOP 3F/24VDC 20A 6EP34368SB000AY0
SIE 6EP34368SB000AY0
4025515154440
Siemens switching power supply SITOP PSU8200, with the following features:
- Mains form: Three-phase AC
- Wide-range input execution: Yes
- Operating condition of mains voltage failure buffer With Ue = 400V
- With Ue = 400V Plugging time at nominal value of output current in case of mains voltage failure min. 15 ms
- With Ue = 400V Operating condition of fusing in the event of a mains power failure
- Mains frequency: 50 Hz- 60 Hz
- Mains frequency 47...63 Hz
Siemens switching power supply SITOP 3F/24VDC 20A 6EP34368SB000AY0
€430.88
Tax included
€430.88
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 55
: 11
Pay in installments with Klarna
Other features:
- Current limitation of switch-on current at 25 °C max 16A
- Max. I2t value: 0.8 A²-s
- Form of the voltage curve at the output potential-free regulated DC voltage
- Output voltage at DC nominal value 24V
- Type of mounting: mounting on EN 60715 35x7.5/15 standard profile rail
- Leakage current: max. 3.5 mA, typ. 0.9 mA
- Degree of protection IP20
- Design of overvoltage protection <32V
- Trip value of current limitation typ. 22A
- Voltage peak: max. 200 mV
- Adjustable output voltage ...28 V
- Product function adjustable output voltage Yes
- Type of output voltage setting via potentiometer; max. 480W
Input current: With rated input voltage 400V 1.2A, With rated input voltage 500V 1A
Supply voltage with AC:
- min nominal value 400V
- max. nominal value 500V
- initial value 320V
- final value 575V
Dimensions and weight:
- housing width 70 mm
- Housing height 125 mm
- Housing depth 125 mm
- net weight 1.2 kg
Environment temperature:
- during operation: -25/+70 °C; with natural convection; start-up tested from -40 °C rated voltage
- during transport -40/+85 °C
- during storage -40/+85 °C
