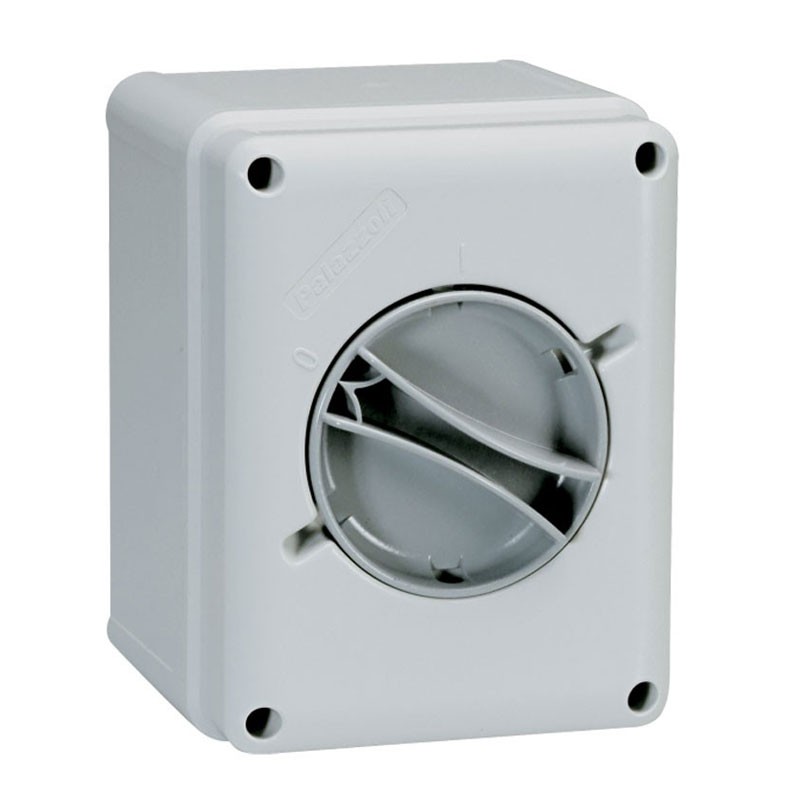

Palazzoli Wall-mounted Disconnector 4X63A IP65 209634
PAL 209634
8014950015092
Palazzoli rotary switch/disconnector, with the following characteristics:
- Rated insulation voltage 690V
- Rated voltage 690V
- Rated impulse withstand voltage 4 kV
- Rated current 63A
- Frequency 50/60Hz
- Degree of protection IP65
- Poles 4P
- Body material: thermoplastic
- Width 158 mm
- Design: wall-mounted
- Insulation class II
- Dimensions 250X158X138 mm
Palazzoli Wall-mounted Disconnector 4X63A IP65 209634
€71.22
Tax included
€71.22
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 4
: 1
Other technical features:
- With black handle/grey tag in insulated box
- CAM 3 scheme
- Net weight: 1.16 kg
- Color: gray RAL 7035
- Ambient storage temperature: -40/+80°C
- Minimum ambient temperature: -25/+60°C
- Max conductor cross-section: 35mm2
- Type of terminals: screw terminals: indirect clamping
- Impact resistance: IK08 according to IEC/EN 62262
