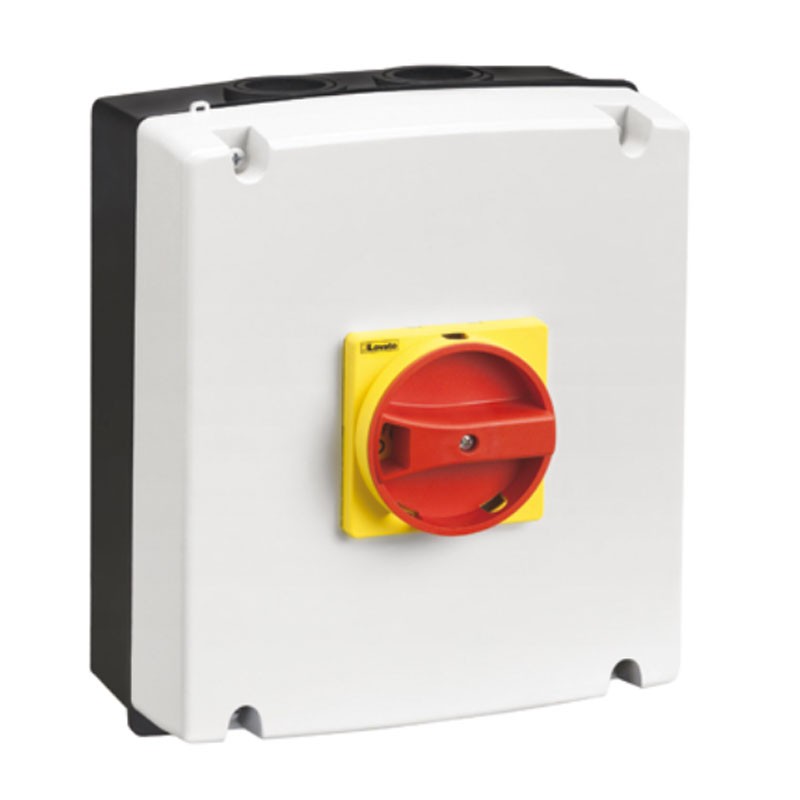

Lovato wall-mounted rotary disconnect switch 3X63A IP65 GAZ063SA
LOV GAZ063SA
8013975210024
Lovato rotary switch disconnector, with the following characteristics:
- IEC/EN rated insulation voltage Ui: 1000V
- Rated impulse withstand voltage Uimp: kV 8
- Type of operating voltage: alternating current
- IEC Conventional free air thermal current Ith: UN 63
- Power dissipation per pole max: 2.9W
- Rated operating power AC23A: 400V kW 22 - 690V kW 22
- Conditional short-circuit current (rms): kA 10
- Short-circuit protection with Class A fuse: gG63
- Closing capacity AC23A 400V: UN 450
- Interrupting capacity AC23A 400V: UN 360
- Mechanical life: 100000 cycles
- Electrical life AC21A: 15000 cycles
Lovato wall-mounted rotary disconnect switch 3X63A IP65 GAZ063SA
€66.55
Tax included
€66.55
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 1
Pay in installments with Klarna
Other technical characteristics:
- Operating position: normal vertical plane - permissible any
- Operating temperature: -25/+55°C
- Storage temperature: -40/+70°C
- Maximum altitude: m 3000
- Front IP rating: IP65
- IP65 degree of protection
- Pollution degree 3
- In non-metallic housing IEC/EN type IP65
- Three-pole
- With revolving handle red/yellow, 63A
- 3 poles
