Came BPT PLX V hands-free video intercom for X1 systems 840CH-0110
CMC 840CH-0110
8050456085788
Hands-free videointercom Came model BPT PLX V for X1 and XIP systems:
- Soft-touch keys
- 5" LCD display with OSD
- 4 keys for intercom calls or auxiliary commands
- White color
- Concealed signaling LEDs
- Video auto switchover of door stations
- Quality hands-free audio
- Soft-touch buttons
- Master/Slave function and Video dribble function between extensions in simultaneous call
Came BPT PLX V hands-free video intercom for X1 systems 840CH-0110
€135.32
Tax included
€135.32
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 3
Frequently bought together

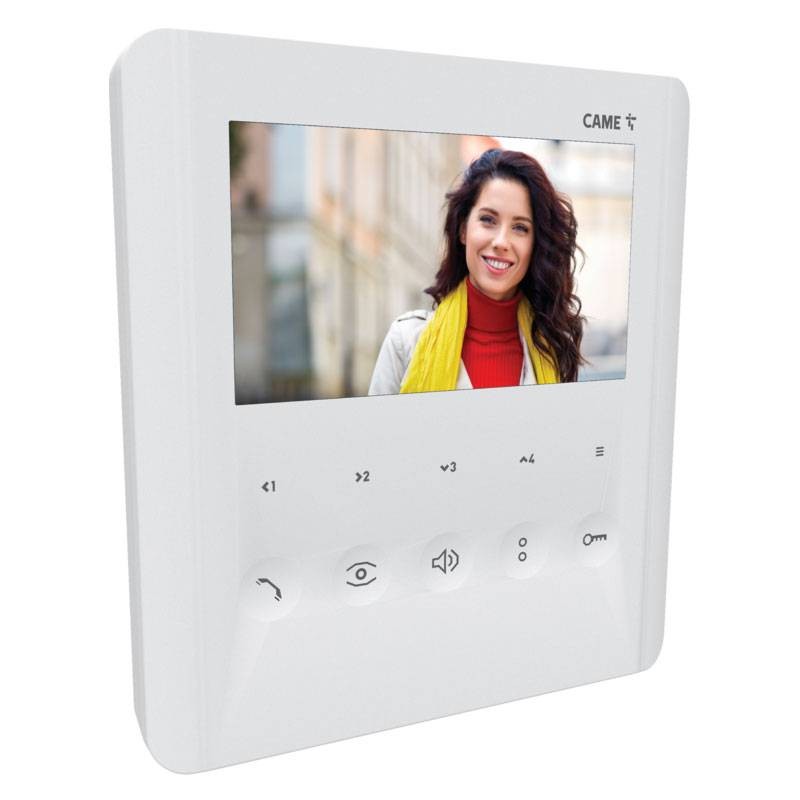

PLX is the hands-free video intercom with a modern, minimalist design, a sleek matte white finish, and a 5-inch display. It features soft-touch buttons with hidden indication LEDs, no holes in the front for audio speaker and microphone, and only 24 millimeters thick. The large display with 480 x 272 pixel resolution has OSD for color, brightness and contrast adjustment.
Features and Benefits:
- Equipped with ringer adjustment/exclusion button
- Wall monitor with 5? color LCD display equipped with OSD for adjusting video parameters (brightness, color, contrast)
- The 5 main touch buttons allow management of primary functions such as communication answering and hanging up, door opening, video self-connection of door stations, ringer adjustment/exclusion (with LED signaling when excluded), and sending a programmable auxiliary command
- Suitable for multi-user systems as it enables up to 6 intercom calls and the sending of "Panic" signaling for the doorman's distress call
- If configured enables up to 4 additional auxiliary commands, alternative to intercom calls
- Enables management of "gate-opener" function and display of controlled gate status via signaling LEDs
- Bracket for wall installation on 503 box (horizontal or vertical) and on Ø 60 mm round box is included
Technical data:

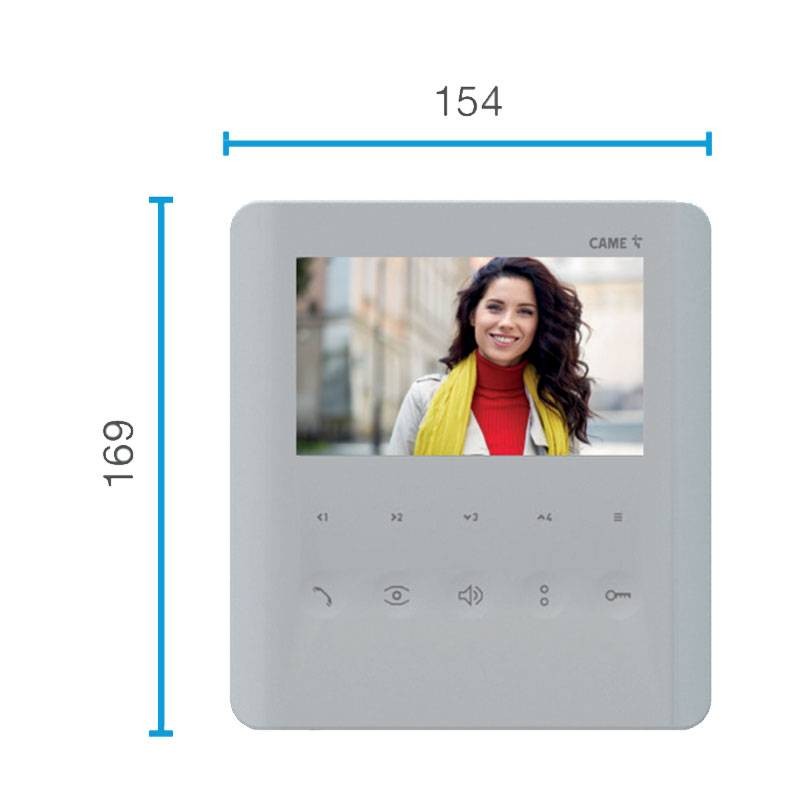

- Dimensions (mm) 155 x 170 x 25
- Power supply from BUS (V) 15 ÷ 20 DC
- Absorption from BUS (mA) 200
- Stand-by absorption (mA) <1
- Operating temperature (°C) +5 ÷ + 40
- Degree of protection (IP) 30
- Video standard PAL/NTSC
- Color White
There are no reviews
Data sheet
- Type:
- Video Intercoms
- System:
- 2-Wire
- WIFI:
- No
