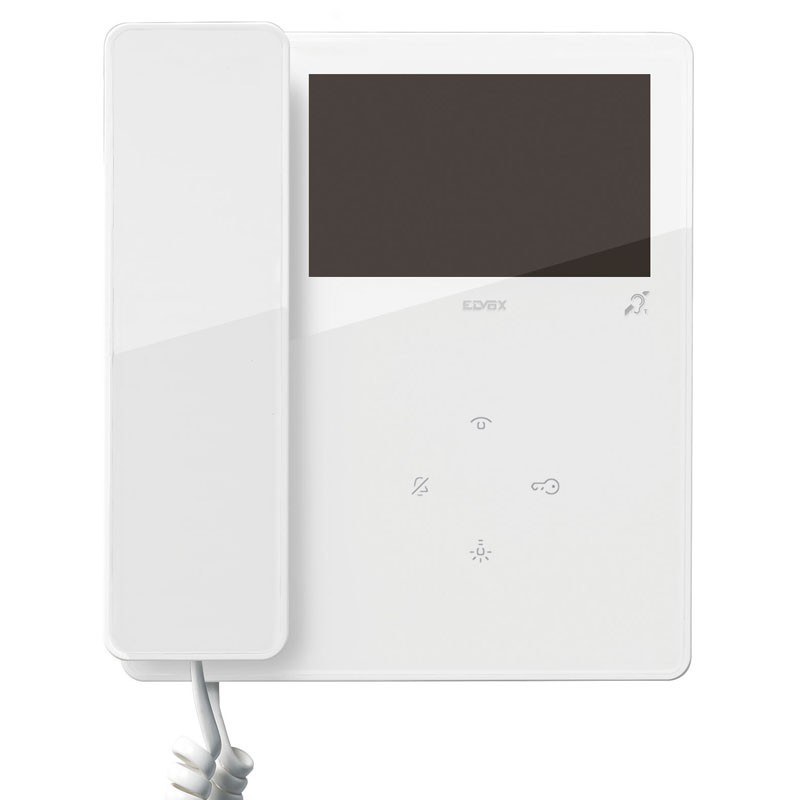

Vimar Elvox Video intercom TAB 4.3 with handset 2 wires 7548
VIW 7548
8013406307637
Vimar Elvox Video intercom TAB 4.3 wall system Two-Wires Plus with handset and color display LCD 4.3 in, speaker for calls electronic, capacitive keypad for audio entry system functions, teleloop for hearing aids, the bracket for the fastening to a box of rectangular or round, white.
Vimar Elvox Video intercom TAB 4.3 with handset 2 wires 7548
€154.23
Tax included
€154.23
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 155
: 3
Video intercom Tab wall-mounting for Two Wires Plus system, colour display LCD 4.3, handset, loudspeaker for signalling calls, capacitive keypad for audio entry system functions: lock opening, auto ignition, auxiliary services intercom call and adjustments volume, brightness, contrast. And can differentiate between the ringtones for calls. The visual signals are to the door/gate open and missed Calls user absent (only configurable via SaveProg), exclusion ring.
Features:
- External installation, wall or box mounting. Applicable to the wall with dowels or with a flush-mounted box 3 modules, Vimar V71303, V71703) round 60 mm (Vimar V71701).
- Display 4.3" LCD 16:9, resolution 480x272 pixels
- Minimum signal level to the bus receiving: -20 dBm
- Capacitive keyboard with symbols, backlit
- BUS power, terminals 1, 2 - rated voltage 28Vdc
- Power consumption: standby: 10mA current - maximum talk time: 180mA peak current limited to call time: 180mA
- Environmental class: Class A1 (internal use)
- Protection IP30
- Operating temperature: -5 °C - +40 °C (internal use)
- Humidity range operating 10 - 80% (without condensation)
- Ringtone electronic with diversification of melodies (10)
- The entrance to call out the door
- Size: 160x180x45,4 mm
- The Dip switch for the terminating impedance of line.
There are no reviews
Data sheet
- Type:
- Video Intercoms
- System:
- 2-Wire
