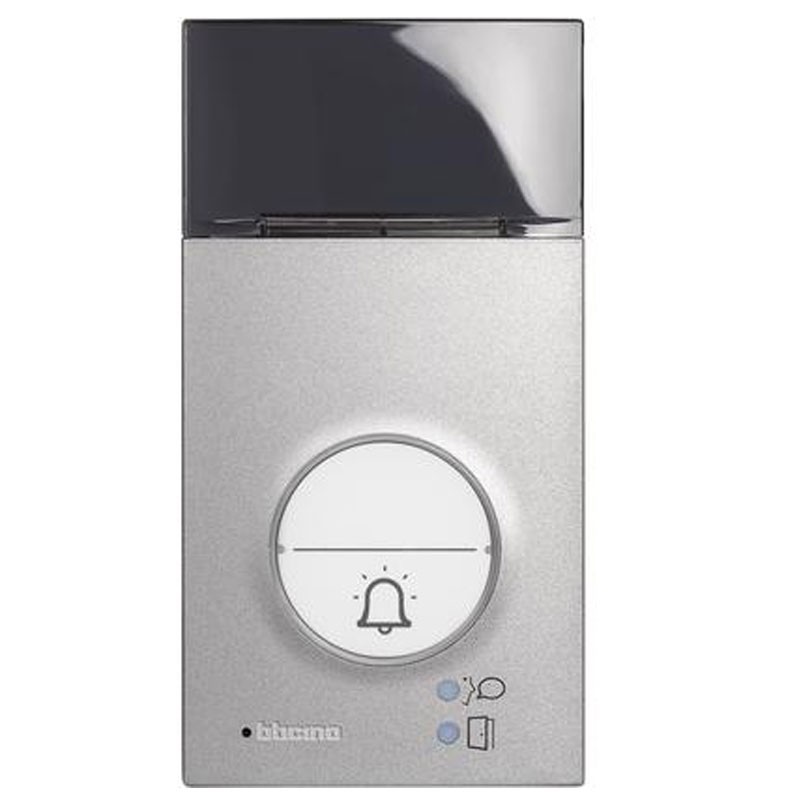

Bticino audio 2-wire wall-mounted one- or two-family control panel 343071
BTI 343071
8005543565216
Bticino 2-WIRE wall-mounted audio control panel with zamak front panel. Configurable for single-family or two-family installations.
Bticino audio 2-wire wall-mounted one- or two-family control panel 343071
€135.45
Tax included
€135.45
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 12
: 4
Pay in installments with Klarna
Frequently bought together
Advantages and characteristics:
- Allows opening of an electric lock connected directly between terminals S+ and S- (18 V 4 A impulsive, 250 mA holding, 30 Ohm max)
- Illumination of the name tag with white LEDs
- Meets IP54 degree of protection - IK10 strength rating
- Degree of protection IP54
- Dimensions Height 190 mm - Width 100 mm - Depth 26.65 mm
- Calls 2
- Series IT Line 3000
Technical data:
- Power supply from SCS BUS: 18 - 27 Vdc
- Absorption in stand-by (with backlighting LEDs off): 15 mA
- Stand-by absorption (with backlighting LEDs on): 25 mA
- Maximum absorption in operation: 70 mA
- Operating temperature: (-25) - (+70) °C
Veloci e prodotto come da descrizione ...............
Das Produkt ist vokll OK. Das Produkt ist vokll OK.
Wir konnten die Sendung verfolgen und wußten, wann sie ankommt.
Good price features balance . Compatible with class 100 interior stations
Ok ottimo prodotto originale .............
Data sheet
- Type: Door stations/Outdoor Intercoms
- System: 2-Wire
