Bticino sound module base SFERA 2 WIRES 351000

Bticino TEST
BTI 351000 8005543441541

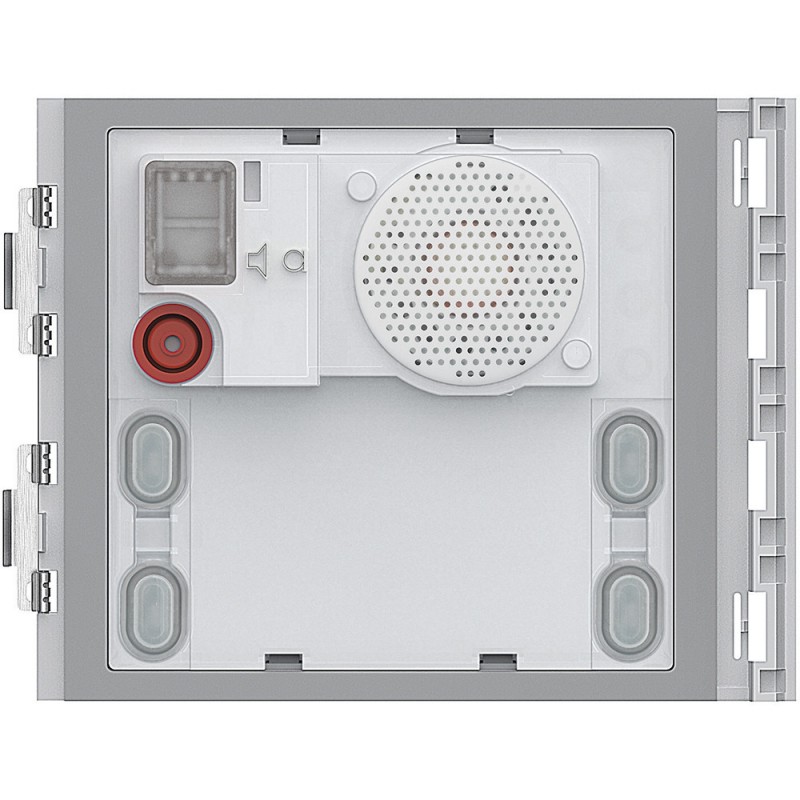

Basic sound module Bticino SFERA series for the realization of 2 wires intercom systems. Equipped with loudspeaker and microphone volume adjustments. Manages up to a maximum of 100 button calls, using additional double row button modules. It allows the opening of an electric lock connected directly to terminals S+ and S- (18 V 4 A impulsive - 250 mA maintenance on 30 ohm max) and the connection of a local door opener button on terminals PL.

To be completed with finishing front plate.

The device must be physically configured.


Request info about this product

Bticino sound module base SFERA 2 WIRES 351000

€134.55 Tax included
€134.55

Bticino sound module base SFERA 2 WIRES 351000

€134.55
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion
qty

Bticino sound module base SFERA 2 WIRES 351000

€134.55

Buy it within and receive it from Thursday, 18 December
klarna Pay in installments with Klarna
Two-year warranty
Easy return within 14 days

Technical characteristics:

  • Power supply from SCS BUS: 18 - 27 Vdc
  • Absorption in stand by: 15 mA
  • Maximum absorption in operation: 65 mA
  • Operating temperature: (-25) - (+70) °C
  • Degree of protection (assembled push-button panel): IP54
  • 1 module

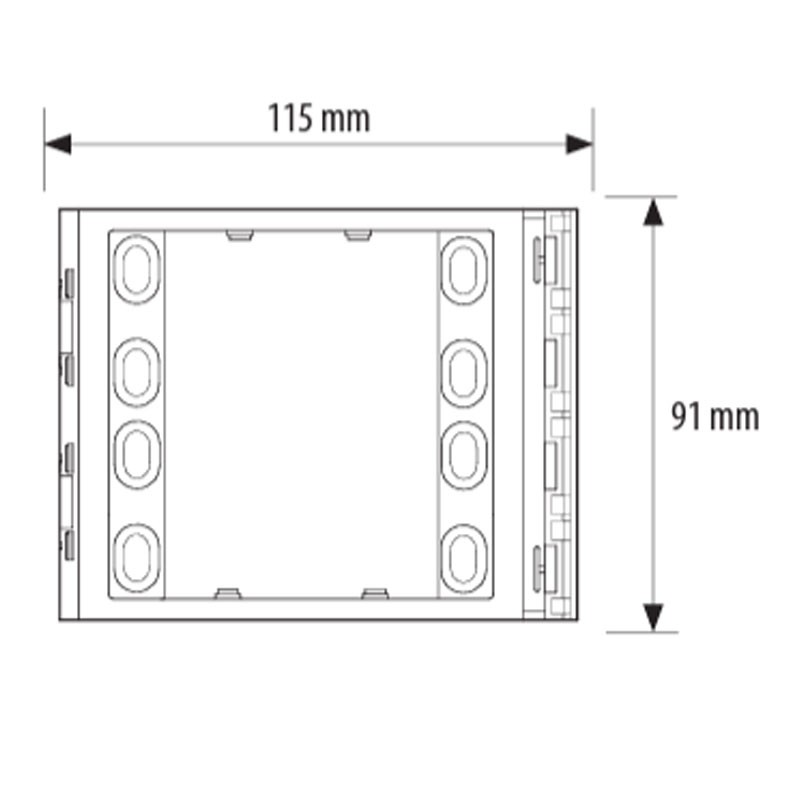

  • Height 91 mm
  • Width 115 mm
  • Connection: SCS-BUS 2 WIRES
  • System type: 2 wire system

Data sheet

Type:
Door stations/Outdoor Intercoms
Components:
Modules
