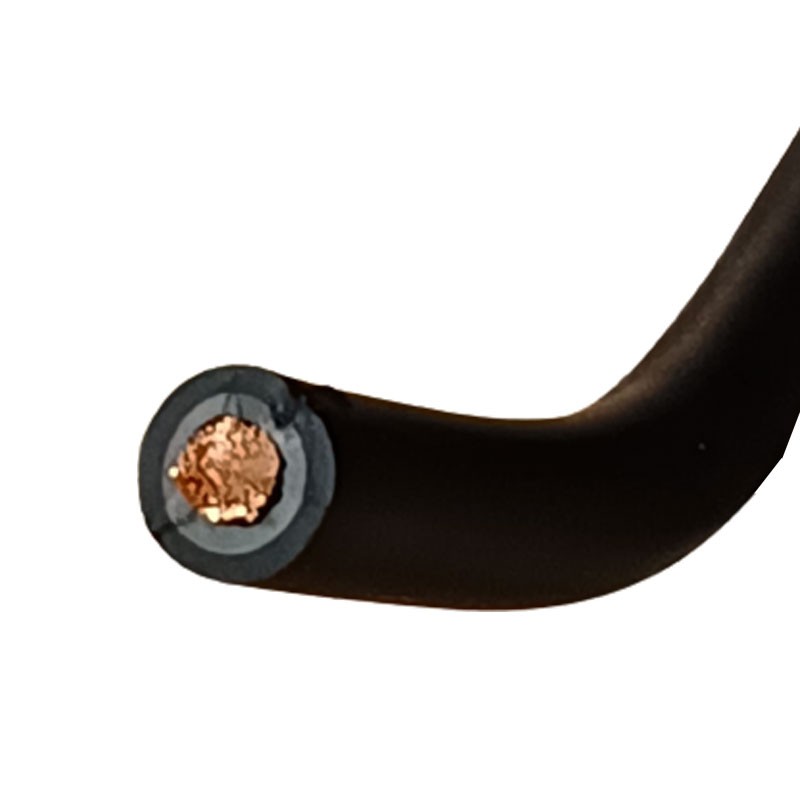

Polychloroprene Sheathed Cable 1x50 mmq Black H07RNF1X50
9X9 H07RNF1X50
Flexible single-core cable, for heavy mobile service, in wet rooms, workshops or outdoors. Can be used for connections of industrial or agricultural equipment such as large kettles, heating plates, portable lamps, power tools, motors and transportable generators. Mandatory for temporary installations at construction sites in accordance with IEC 64-8 part 7 third edition.
Usable in fixed installations. Class 5 annealed red copper flexible conductor, elastomeric compound insulation quality EI4, EM2 quality polychloroprene sheath.
The selling price is intended per meter.
This product doesn t benefit from the right of withdrawal Cable cut and therefore non-refundable
Polychloroprene Sheathed Cable 1x50 mmq Black H07RNF1X50
€8.41
Tax included
€8.41
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 19
: 59
Pay in installments with Klarna
Two-year warranty
Characteristics:
- Rated voltage U0: 450V
- Rated voltage U: 750V
- Test voltage: 2500V
- Maximum operating temperature: +60 degrees
- Maximum short circuit temperature: +200 degrees
- Minimum operating temperature (without mechanical shock): -40 degrees
- Minimum installation and handling temperature: -25 degrees
Core colors:
- Unipolar: copper
Sheath color:
- Black
Notes:
- Current ratings for unipolar cables were calculated considering 3 cables spaced apart
- Current ratings were calculated in the case of a conduit consisting of 3-4 loaded conductors
- The cable is usable up to +85°C (in a protected position)
Data sheet
- Colour: Black
- Section: 50mmq
- Number of cables: 1
