Magnetic contact with 2 inputs Elkron DC6002I 80MM1G00113

Brand: Elkron

Cod: EKO 80MM1G00113 EAN: 8034034445744

Micro magnetic contact with wired input Elkron DC6002I, with the following features:

Power supply: 1 lithium battery 3V type CR2
Battery life: 5 years (typical value, may vary with use)
2 programmable auxiliary inputs
Two-way radio frequency: 868.6375 MHz
Operating temperature: -10 °C to +45 °C
Dimensions (H x W x D): 107 x 32 x 22 mm
Weight: 100 grams
Performance level: EN50131 Grade 2, Class 2
White color

Compatible with ER600 radio expansion and EGON radio system.

Istructions for use IT-EN-FR-DE

Installation IT-EN-FR-DE

Magnetic contact with 2 inputs Elkron DC6002I 80MM1G00113

€58.80 Tax included

€58.80

Magnetic contact with 2 inputs Elkron DC6002I 80MM1G00113

€58.80
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion

Items Available: 44

: 3

Altre disponibilità dal produttore

Pay in installments with Klarna

Two-year warranty

Easy return within 14 days

Purchase with tax breaks

Are you a professional ?

Request access to

Description

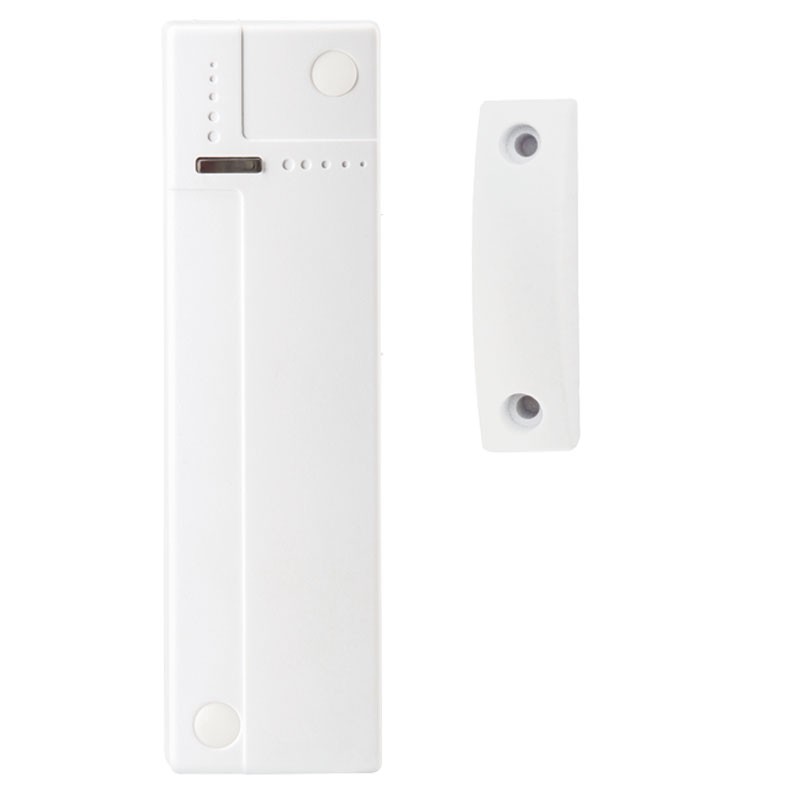

The DC6002I wired input magnetic contact controls the opening/closing of specific devices (such as a door or window).

The contacts are fixed on the door or window frame, while the actuation magnets are to be fixed on the door or window itself. When the door or window is opened, the magnet moves away from the contact, triggering the internal magnetic switch and triggering the transmission of an alarm signal to the control unit. The device also has the ability to send information regarding anomalies and low battery warning. The contact consists of a cover and a base. The cover contains all the electronic components, while the base is used to install the device. An internal tamper switch provides protection against unauthorized attempts to open or remove the device.

Installation: The contact should be placed on the door frame, while the magnet should be placed on the door. If the contact is placed on the door and the door is opened too quickly, the transmission distance may be reduced. With the door closed, the magnet should not be more than 15 mm from the contact.
