Body for Telemecanique contacts 2NC diameter 22mm ZB4BZ104
SNR ZB4BZ104
3389110889406

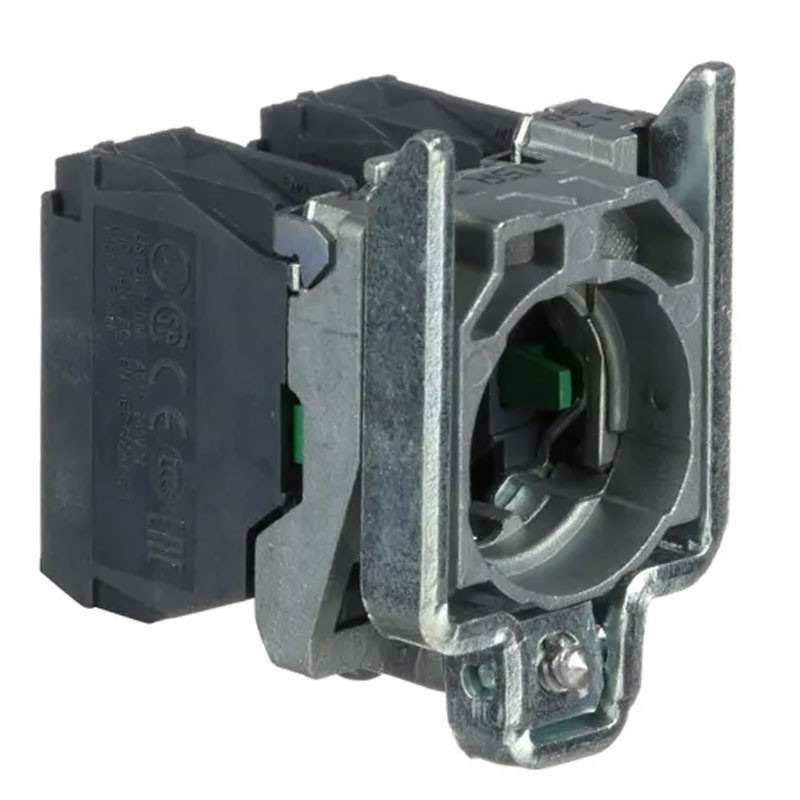

Schneider contact body, with the following characteristics:
- Fixing base material: Zamak
- Head type: Standard
- Contact composition and type: 2 NC
- Contact operation: Slow opening
- Contact block type: Single
- Device composition: Body - Fixing base
- Connections - terminals: Screw-fixing terminals, <= 2 x 1.5 mm² with cable end complying with EN 60947-1, Screw-fixing terminals, > = 1 x 0.22 mm² without cable end complying with EN 60947-1
- CAD total width: 30 mm
- CAD total height:47 mm
- CAD total depth:37 mm
- ISO Terminal Description #1: (11-12)NC
Body for Telemecanique contacts 2NC diameter 22mm ZB4BZ104
€10.70
Tax included
€10.70
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 38
: 5
Pay in installments with Klarna
Frequently bought together
Advantages:
- The basic unit to start assembling your own metal button or switch
- Wide operating temperature range of -40°C to 70°C ensures versatility of product use
- Environmentally friendly product performance
Schneider Electric's Harmony XB4 single contact element is pre-assembled on a base mounting unit. It has 2 NC contacts.
This fixing base unit is preassembled with a contact element. Simply add a head to this assembly to get a complete, ready-to-use pushbutton.
Other technical features:
- Weight 0.062 kg
- Contact use: standard contacts
- Positive opening: With conforms to EN/IEC 60947-5-1 appendix K
- Operating stroke: 1.5 mm (NC with electrical state change) - 4.3 mm (total stroke)
- Operating force: 2 N NC with change in electrical state
- Mechanical service life: 5000000 cycles
- Tightening torque: 0.8 to 1.2 Nm in accordance with EN 60947-1
- Contact material: Silver alloy (Ag/Ni)
- Short-circuit protection: 10 A cartridge fuse type gG complying with EN/IEC 60947-5-1
- Conventional thermal current in air [Ith]: 10 A complying with EN/IEC 60947-5-1
- Rated insulation voltage [Ui]: 600V (pollution degree 3) complies with EN 60947-1
- Rated impulse withstand voltage [Uimp]: 6 kV complying with EN 60947-1
- TH protection treatment.
- Storage temperature: -40...70 °C
- Ambient temperature: -40...70 °C
- IP degree of protection: IP20 complying with IEC 60529
Head shape (screw):
- Phillips head compatible with Philips no 1 screwdriver
- Phillips head compatible with pozidriv No 1 screwdriver
- Slotted compatible with plate Ø 4 mm screwdriver
- Slot compatible with Ø 5.5 mm plate screwdriver
Rated use current [Ie]:
- 3 A at 240 V, AC-15, A600 complying with EN/IEC 60947-5-1
- 6 A at 120 V, AC-15, A600 complying with EN/IEC 60947-5-1
- 0.1 A at 600 V, DC-13, Q600 complies with EN/IEC 60947-5-1
- 0.27 A at 250 V, DC-13, Q600 complies with EN/IEC 60947-5-1
- 0.55 A at 125 V, DC-13, Q600 complies with EN/IEC 60947-5-1
- 1.2 A at 600 V, AC-15, A600 complying with EN/IEC 60947-5-1
Electrical durability:
- 10000000 cycles, AC-15, 2 A at 230 V, operating range <3600 cycles/h, load factor: 0.5 complies with EN/IEC 60947-5-1 appendix C
- 10000000 cycles, AC-15, 3 A at 120 V, operating range <3600 cycles/h, load factor: 0.5 complies with EN/IEC 60947-5-1 appendix C
- 10000000 cycles, AC-15, 4 A at 24 V, operating range <3600 cycles/h, load factor: 0.5 complies with EN/IEC 60947-5-1 appendix C
- 10000000 cycles, DC-13, 0.2 A at 110 V, operating range <3600 cycles/h, load factor: 0.5 complies with EN/IEC 60947-5-1 appendix C
- 10000000 cycles, DC-13, 0.5 A at 24 V, operating range <3600 cycles/h, load factor: 0.5 complies with EN/IEC 60947-5-1 appendix C
Electrical reliability:
- Λ < 10exp(-6) at 5 V, 1 mA in clean environment complies with EN/IEC 60947-5-4
- Λ < 10exp(-8) at 17 V, 5 mA in clean environment complies with EN/IEC 60947-5-4
Shock resistance:
- 30 gn (duration = 18 ms) for half-sine wave acceleration complies with IEC 60068-2-27
- 50 gn (duration = 11 ms) for half-sine wave acceleration in accordance with IEC 60068-2-27
There are no reviews
Data sheet
- Type: Contacts
