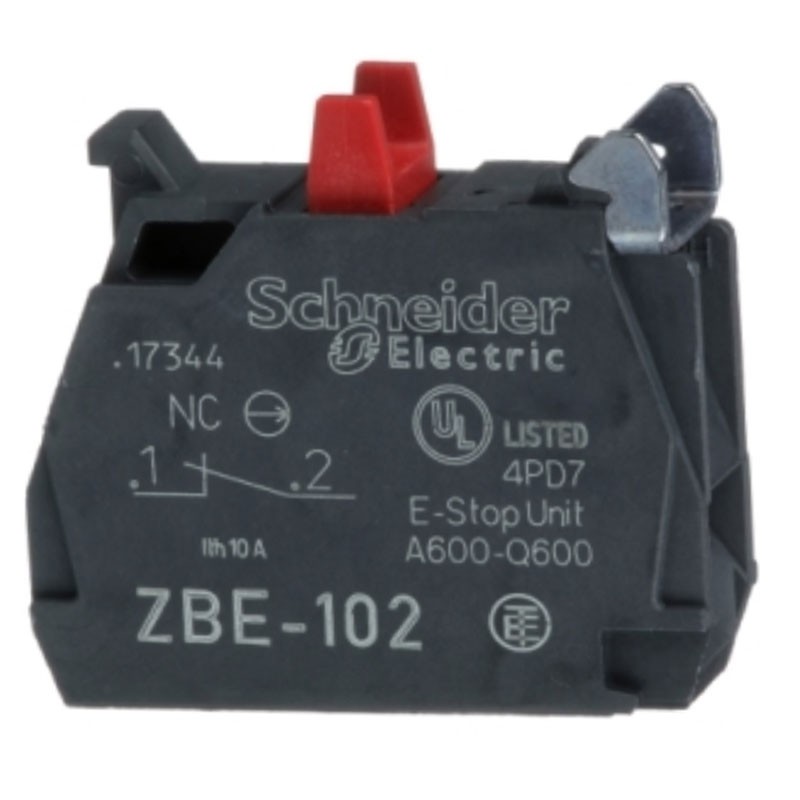

Telemecanique Harmony XB4 1NC Supplementary Contact ZBE102

Brand: Schneider

Cod: SNR ZBE102 EAN: 3389110089486

Schneider Telemecanique Supplementary Contact, with the following characteristics:

Rated insulation voltage [Ui]: 600V (pollution degree 3) complying with EN 60947-1
Rated impulse withstand voltage [Uimp]: 6 kV complying with EN 60947-1
Degree of protection IP20 conforming to IEC 60529
Contact operation: slow opening
Contact block type: single
Contact use: standard contacts
Weight 0.011 kg
Contact composition and type: 1 NC
Positive opening: with in accordance with EN/IEC 60947-5-1 appendix K
Operating stroke: 1.5 mm (NC with electrical state change), 4.3 mm (total stroke)

Telemecanique Harmony XB4 1NC Supplementary Contact ZBE102

€3.24 Tax included

€3.24

Telemecanique Harmony XB4 1NC Supplementary Contact ZBE102

€3.24
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion

Items Available: 1318

: 71

Altre disponibilità dal produttore

Pay in installments with Klarna

Two-year warranty

Easy return within 14 days

Purchase with tax breaks

Are you a professional ?

Request access to

Description

Uses screw terminals. It has 1 NC contact and plastic body. This contact element enables quick and easy replacement and configuration of pushbuttons and selector switches. It can be easily installed and replaced on complete XB5 selector switches and pushbutton units via clip-on assembly and connects to control circuits with simple screw terminal connections. It protects operators from accidental contact with live circuits with its IP20 rating.

Other technical features:

Operating force: 2 N NC with change of electrical state
Mechanical durability: 10000000 cycles
Tightening torque: 0.8 to 1.2 Nm in accordance with EN 60947-1
Contact material: Silver alloy (Ag/Ni)
Short-circuit protection: 10A cartridge fuse type gG complying with EN/IEC 60947-5-1
Conventional thermal current in air [Ith]: 10A complying with EN/IEC 60947-5-1
Contact or luminous element mounting: Direct front mounting on pushbutton
Protection treatment: TH
Storage temperature: -40/+70 °C
Operating ambient temperature: -40/+70 °C
Vibration resistance: 5 gn (F= 2...500 Hz) in accordance with IEC 60068-2-6

Connections-clamps:

Screw-fixing terminals, <= 2 x 1.5 mm² with cable end complies with EN 60947-1
Screw-fixing terminals, >= 1 x 0.22 mm² without cable end complies with EN 60947-1

Impact resistance:

30 gn (duration = 18 ms) for half-sine wave acceleration complying with IEC 60068-2-27
50 gn (duration = 11 ms) for half-sine wave acceleration in accordance with IEC 60068-2-27

Rated use current [Ie]:

3 A at 240 V, AC-15, A600 complying with EN/IEC 60947-5-1
6 A at 120 V, AC-15, A600 complying with EN/IEC 60947-5-1
0.1 A at 600 V, DC-13, Q600 complies with EN/IEC 60947-5-1
0.27 A at 250 V, DC-13, Q600 complies with EN/IEC 60947-5-1
0.55 A at 125 V, DC-13, Q600 complies with EN/IEC 60947-5-1
1.2 A at 600 V, AC-15, A600 complying with EN/IEC 60947-5-1

Electrical durability:

1000000 cycles, AC-15, 2 A at 230 V, operating range <3600 cycles/h, load factor: 0.5 complies with EN/IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 3 A at 120 V, operating range <3600 cycles/h, load factor: 0.5 complies with EN/IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 4 A at 24 V, operating range <3600 cycles/h, load factor: 0.5 complies with EN/IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.2 A at 110 V, operating range <3600 cycles/h, load factor: 0.5 complies with EN/IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.5 A at 24 V, operating range <3600 cycles/h, load factor: 0.5 complies with EN/IEC 60947-5-1 appendix C

Head shape (screw):
