Telemecanique Contact Body 2NO ZB4BZ103
SNR ZB4BZ103
3389110889390

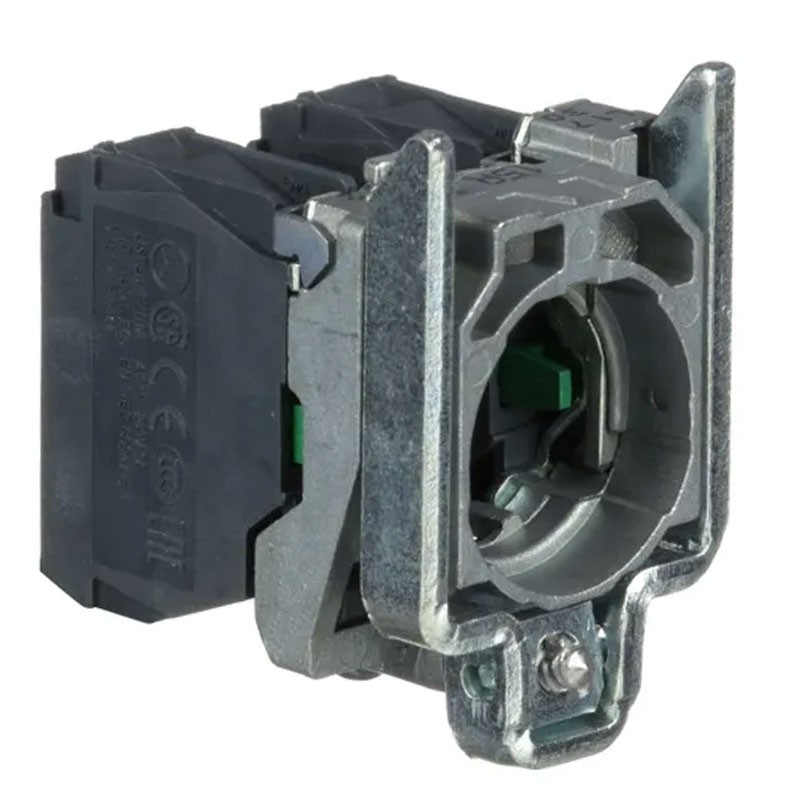

Schneider Telemecanique Contact Body, with the following features:
- Fixing base material: Zamak
- Head type: Standard
- Contact composition and type: 2 NO
- Contact operation: slow opening
- Contact block type: single
- Device composition: Body - Fixing base
- CAD total width: 30 mm
- CAD total height: 47 mm
- CAD total depth: 37 mm
- Description ISO Terminal No. 1: (13-14)NO
- Weight 0.062 kg
- Contact use: standard contacts
- Positive opening: without
Telemecanique Contact Body 2NO ZB4BZ103
€10.70
Tax included
€10.70
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 273
: 3
Frequently bought together
Other technical features:
- Operating stroke: 2.6 mm (NO with electrical state change) - 4.3 mm (total stroke)
- Operating torque: 0.05 Nm NO with change in electrical state
- Mechanical life: 5000000 cycles
- Tightening torque: 0.8 to 1.2 Nm in accordance with EN 60947-1
- Contact material: Silver alloy (Ag/Ni)
- Short-circuit protection: 10 A cartridge fuse type gG complying with EN/IEC 60947-5-1
- Conventional thermal current in air [Ith]: 10 A complying with EN/IEC 60947-5-1
- Rated insulation voltage [Ui]: 600 V (pollution degree 3) complies with EN 60947-1
- Rated impulse withstand voltage [Uimp]: 6 kV complying with EN 60947-1
- Electrical reliability: Λ < 10exp(-6) at 5 V, 1 mA in clean environment complies with EN/IEC 60947-5-4 - Λ < 10exp(-8) at 17 V, 5 mA in clean environment complies with EN/IEC 60947-5-4
- Protection treatment: TH
- Storage temperature: -40/+70 °C
- Operating ambient temperature: -40/+70 °C
- IP degree of protection: IP20 in accordance with IEC 60529
- Vibration resistance: 5 gn (F= 2...500 Hz) complying with IEC 60068-2-6
Strengths:
- The basic unit to start assembling your own pushbutton or switch.
- Simple modular design facilitates post-installation maintenance, modification and adaptation of machines
- High durability with 1 million cycles ensures low maintenance and less damage to the system
- Vivid color combination for NO and NC contact elements
- Wide operating temperature range from -40°C to 70°C ensures versatility of product use
Environmentally friendly product performance
Connections-clamps:
- Screw fastening terminals, <= 2 x 1.5 mm² with cable end complying with EN 60947-1
- Screw clamp terminals, >= 1 x 0.22 mm² without cable end complying with EN 60947-1
Head shape (screw):
- Phillips head compatible with Philips no 1 screwdriver
- Phillips head compatible with pozidriv No 1 screwdriver
- Slotted compatible with plate Ø 4 mm screwdriver
- Slotted compatible with Ø 5.5 mm screwdriver plate
Impact resistance:
- 30 gn (duration = 18 ms) for half-sine wave acceleration in accordance with IEC 60068-2-27
- 50 gn (duration = 11 ms) for half-sine wave acceleration in accordance with IEC 60068-2-27
Rated use current [Ie]:
- 3 A at 240 V, AC-15, A600 complying with EN/IEC 60947-5-1
- 6 A at 120 V, AC-15, A600 complying with EN/IEC 60947-5-1
- 0.1 A at 600 V, DC-13, Q600 complies with EN/IEC 60947-5-1
- 0.27 A at 250 V, DC-13, Q600 complies with EN/IEC 60947-5-1
- 0.55 A at 125 V, DC-13, Q600 complies with EN/IEC 60947-5-1
- 1.2 A at 600 V, AC-15, A600 complying with EN/IEC 60947-5-1
Electrical durability:
- 10000000 cycles, AC-15, 2 A at 230 V, operating range <3600 cycles/h, load factor: 0.5 complies with EN/IEC 60947-5-1 appendix C
- 10000000 cycles, AC-15, 3 A at 120 V, operating range <3600 cycles/h, load factor: 0.5 complies with EN/IEC 60947-5-1 appendix C
- 10000000 cycles, AC-15, 4 A at 24 V, operating range <3600 cycles/h, load factor: 0.5 complies with EN/IEC 60947-5-1 appendix C
- 10000000 cycles, DC-13, 0.2 A at 110 V, operating range <3600 cycles/h, load factor: 0.5 complies with EN/IEC 60947-5-1 appendix C
- 10000000 cycles, DC-13, 0.5 A at 24 V, operating range <3600 cycles/h, load factor: 0.5 complies with EN/IEC 60947-5-1 appendix C
