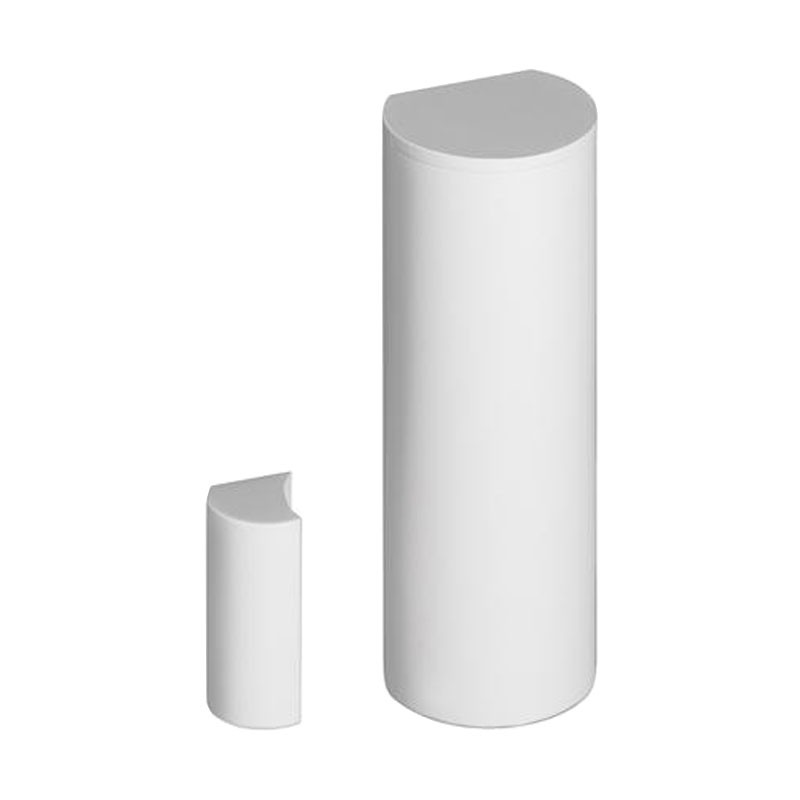

Bticino 868MHz radio magnetic contact with 2 inputs/zones 4283

Brand: Bticino TEST

Cod: BTI 4283 EAN: 8005543591116

Bticino 868MHz radio magnetic contact with 2 additional inputs/zones programmable separately, white color, lithium battery CR123A included for a maximum expected life up to 4 years. Contact dimensions: 30 x 90 x 30 mm ( H x W x D ). Magnet dimensions: 15 x 34 x 14 mm ( H x W x D ).

Installation Bticino 4283

Bticino 868MHz radio magnetic contact with 2 inputs/zones 4283

€62.50 Tax included

€62.50

Bticino 868MHz radio magnetic contact with 2 inputs/zones 4283

€62.50
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion

Items Available: 5

: 2

Altre disponibilità dal produttore

Pay in installments with Klarna

Two-year warranty

Easy return within 14 days

Purchase with tax breaks

Are you a professional ?

Request access to

Description

Magnetic contact radio (868MHz / bidirectional) with two 2 programmable inputs that can be used to connect external magnetic contacts wired rather than sensors type rolling shutter or break-glass, making it a small wireless expansion module (up to 3 zones). Thanks to two-way communication, is programmable with the software TiAlarm.

The magnetic contact 4283/4 implements the DPMS transmission power control, the possibility to program the supervision time from 1 minute up to 4 hours (default setting 5 minutes), the control of the battery charge status (with sending of the signal when battery replacement is necessary), as well as integrating the anti-opening and anti-tear protections.

It is highly recommended to fix the transmitter to the upper part of the frame and the magnet to the mobile part of the door/window. To take advantage of the tamper protection, it is necessary to fix the sensor and the magnet with screws suitable for the material on which the installation is made. Alternatively, use the double-sided adhesive tape supplied. (battery included).

Features:

Power supply voltage 1 lithium battery CR123A (3V) provided
Battery life 4 years max
Operating frequency 868 MHz
Radio range 400 mt in free field
(the signal quality is affected by several factors, check the measurement using the software TiAlarm)
Operating temperature 5 40 °C.
