Schneider Contacts Block 1NO diameter 22 ZB5AZ101
SNR ZB5AZ101
3389110924398
Schneider contact block with the following features
- Short-circuit protection: 10 A cartridge fuse type gG according to EN/IEC 60947-5-1
- Conventional thermal current in air: 10 A according to EN/IEC 60947-5-1
- Rated insulation voltage: 600 V (pollution degree 3) according to EN 60947-1
- Rated impulse withstand voltage: 6 kV according to EN 60947-1
- Product range: Harmony XB5
- Type of product or component: Complete body assembly/contacts
- Contact composition and type: 1 NO
- Contact operation: Slow opening
- Contact block type: Single
Schneider Contacts Block 1NO diameter 22 ZB5AZ101
€5.58
Tax included
€5.58
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 7
: 3
Frequently bought together

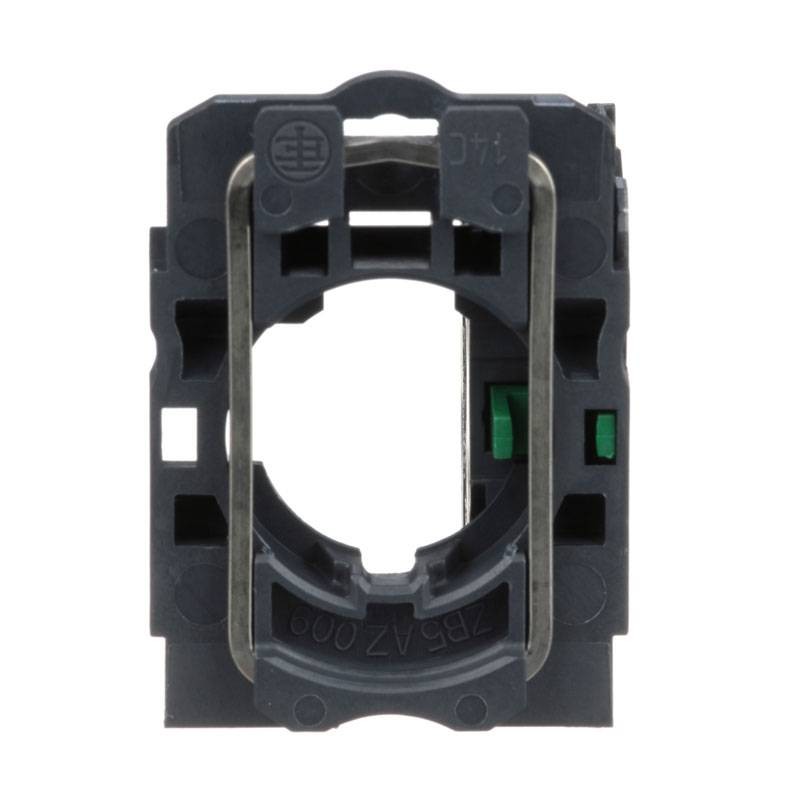

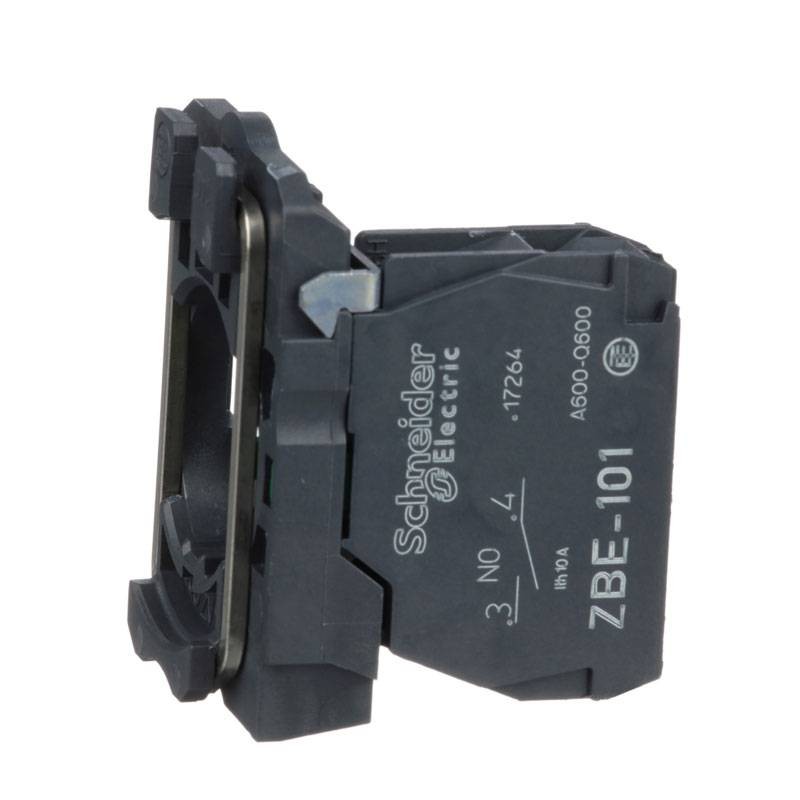

Schneider Electric's Harmony XB5 single contact element uses screw terminals. It has 1 NO contact and a plastic body. This contact element allows quick and easy replacement and configuration of pushbuttons and selector switches.
It can be easily installed and replaced on complete XB5 selector switches and pushbutton units using the clip-on assembly and connects to the control circuits with simple screw terminal connections. It protects operators from accidental contact with live circuits thanks to its IP20 protection rating.
More informations:
- The basic unit to start assembling your own plastic button or switch
- Wide operating temperature range from -40°C to 70°C ensures versatility of use of the product
Features:
- Operating stroke: 2.6 mm (NO with change of electrical state) - 4.3 mm (total stroke)
- Operating force: 2.3 N NO with change in electrical status
- Tightening torque: 0.81.2 Nm according to EN 60947-1
- Contact material Silver alloy (Ag/Ni)
- Storage temperature: -4070 °C
- Ambient operating temperature: -4070 °C
- IP rating: IP20 according to IEC 60529
- Vibration resistance: 5 gn (F= 2500 Hz) according to IEC 60068-2-6
- Shock resistance: 30 gn (duration = 18 ms) for half sine wave acceleration according to IEC 60068-2-27 - 50 gn (duration = 11 ms) for half sine wave acceleration according to IEC 60068-2-27
Head shape (screw):
- Phillips head compatible with Philips no 1 screwdriver
- Phillips head compatible with pozidriv No 1 screwdriver
- Slot compatible with Ø 4 mm plate screwdriver
- Slot compatible with Ø 5.5 mm screwdriver plate
Rated operating current:
- 3 A at 240 V, AC-15, A600 according to EN/IEC 60947-5-1
- 6 A at 120 V, AC-15, A600 according to EN/IEC 60947-5-1
- 0.1 A at 600 V, DC-13, Q600 according to EN/IEC 60947-5-1
- 0.27 A at 250 V, DC-13, Q600 according to EN/IEC 60947-5-1
- 0.55 A at 125 V, DC-13, Q600 according to EN/IEC 60947-5-1
- 1.2 A at 600 V, AC-15, A600 according to EN/IEC 60947-5-1
Electrical endurance:
- 1000000 cycles, AC-15, 2 A at 230 V, operating range <3600 cycles/h, load factor: 0.5 according to EN/IEC 60947-5-1 appendix C
- 1000000 cycles, AC-15, 3 A at 120 V, duty cycle <3600 cycles/h, load factor: 0.5 according to EN/IEC 60947-5-1 appendix C
- 1000000 cycles, AC-15, 4 A at 24 V, duty cycle <3600 cycles/h, load factor: 0.5 according to EN/IEC 60947-5-1 appendix C
- 1000000 cycles, DC-13, 0.2 A at 110 V, duty cycle <3600 cycles/h, load factor: 0.5 according to EN/IEC 60947-5-1 appendix C
- 1000000 cycles, DC-13, 0.5 A at 24 V, duty cycle <3600 cycles/h, load factor: 0.5 according to EN/IEC 60947-5-1 appendix C
There are no reviews
Data sheet
- Type:
- Contacts
