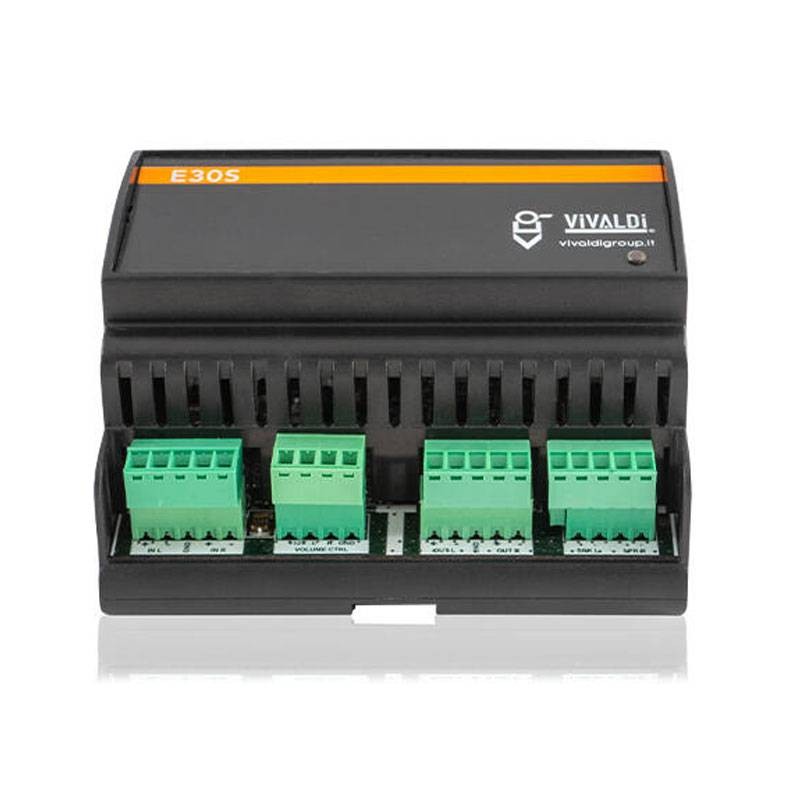

Vivaldi digital stereo audio amplifier with DSP 30+30W Wi-Fi E30S
VIL E30S
8051272188059
Vivaldi digital audio amplifier with DSP 30+30W Wi-Fi with the following features:
- Supply Voltage: 24 VDC - Max 26 VDC
- Protection fuse: T 3.15A
- Max Current (2 ch @ 4): 5A
- Average Current (2 ch @ 4): 2.7A
- Standby Current: 0.068 A
- Power @ 8 single channel: 30 Wrms / 43 W peak @ 24VDC alim
- Power @ 4 single channel: 50 Wrms / 70 W peak @ 24VDC alim
- THD+N @ 8 1 kHz: 0.31% - 1kHz @ 30 Wrms
- THD+N @ 4 1 kHz: 0.40% - 1kHz @ 50 Wrms
- DSP IN/OUT latency: <1 ms
- Input Sensitivity: Max 1 Vrms
- Input impedance: 14 k
- SUBWOOFER mode Freq. CUTOFF: 80 250 Hz
- 24Vdc power supply via Vivaldi Giove code AL5B (to be purchased separately)
Compatible products (to be purchased separately):
- Giove DIN rail power supply (code AL5B)
- Pair of mono potentiometers with clamp connections (code TVM)
- Stereo potentiometer with clamp connections (code TVS)
Vivaldi digital stereo audio amplifier with DSP 30+30W Wi-Fi E30S
€170.37
Tax included
€170.37
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 1
Frequently bought together
Features:
- Class-D amplifier power 30+30W @ 8Ohm, 50+50W @ 4Ohm
- Balanced stereo input
- Amplified output configurable as follows: Stereo linear with volume adjustment for individual channel, internal with Trimmer or external with Potentiometers (mono Vivaldi Giove TVM, stereo Vivaldi Giove TVS); Subwoofer mode with cutoff frequency and volume adjustment by Trimmer
- Balanced stereo line output for connection of active subwoofer or auxiliary amplifier Vivaldi WiFi E30S, Vivaldi WiFi E80S
- Ability to select master or fixed volume
- Device can be set to stereo or mono mode from on-board Dip Switch
- Standard DIN (6 modules)
- Dimensions: 106x90x63 mm WxHxD
- Weight: 140 grams
There are no reviews
Data sheet
- Type:
- Amplifiers
