Amplifier FTE 1 ING 2OUT VHF/UHF 22DB TAM1220L
FTE TAM1220L
8055271130767

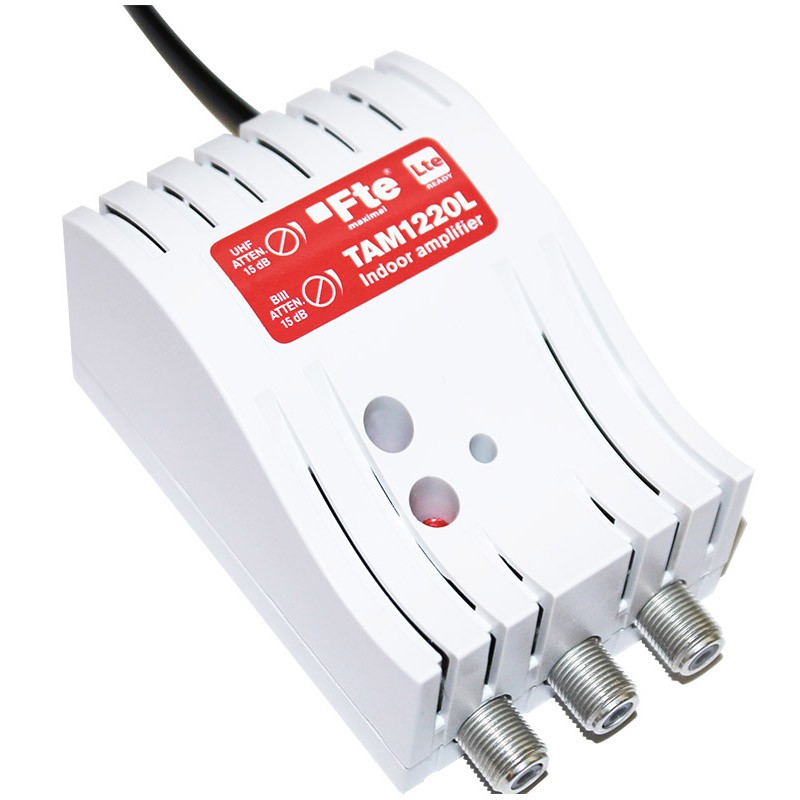

The TAM1220L is an indoor line amplifier that allows BIII and UHF signals to be amplified on two outputs. It guarantees an optimal signal level thanks to a separate BIII/UHF gain adjustment.
Amplifier FTE 1 ING 2OUT VHF/UHF 22DB TAM1220L
€36.96
Tax included
€36.96
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 10
: 3
Pay in installments with Klarna
Strengths
- Separate band amplification VHF / UHF
- 25 dB gain and 114 dBµV maximum output level
- VHF / UHF gain adjustment separated by 15 dB
- LTE/4G filter
- 230 VAC power supply with automatic protection circuit against short circuits
- Very compact dimensions
- 100% Made in Italy, high quality product.
Applications:
- Used for indoor installations in case of weak terrestrial signal in order to amplify it and make it optimal on all TV socket points of the system.
Technical Data:
- N° Inputs 1
- VHF + UHF bands
- Frequency range - MHz 47 ÷ 230 / 470 ÷ 790
- No. of outputs 2
- Gain - dB VHF: 10 - 25 / UHF: 10 - 25
- Adjustment - dB 15
- Noise figure - dB 5
- Max. output level VHF / UHF - dBµV 114
- Supply voltage - VAC / Hz 230 / 50 - 60
- Separate VHF / UHF Amplification Type
- Operating temperature - ° C - 10 to 35
- Dimensions ( W x H x D ) - mm 58 x 105 x 48
- Weight - g 240
- Complies with EN 60065, EN 55013.
There are no reviews
Data sheet
- Type: Amplifiers
- Version: 1IN/2OUT
