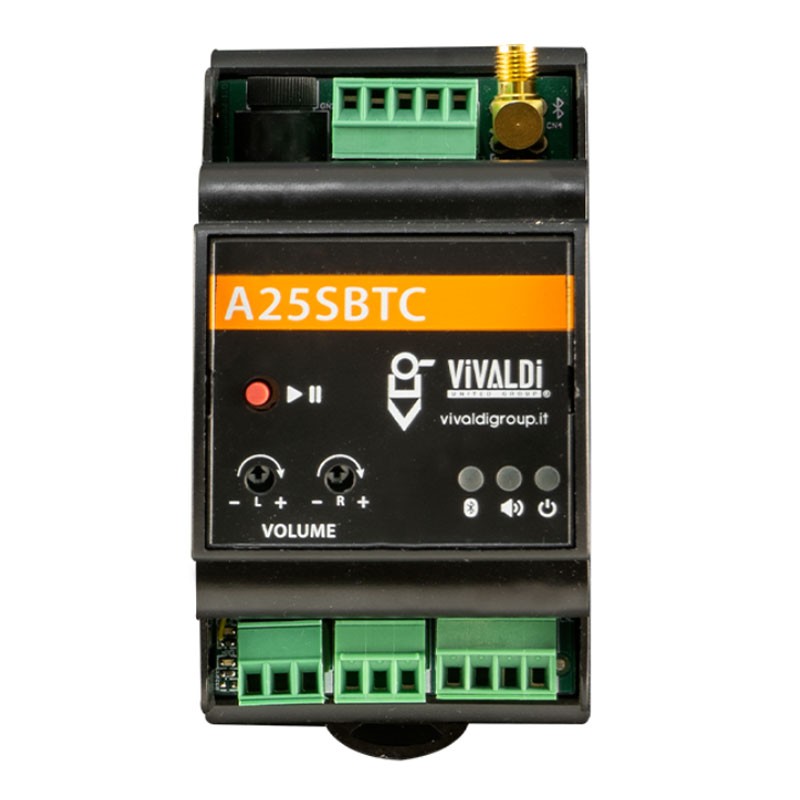

Power amplifier 25+25W Vivaldi Giove A25SBTC
VIL A25SBTC
8051272181364
Bluetooth stereo power amplifier for DIN bar Vivaldi Giove, with the following characteristics:
- Power 25+25W RMS
- Input sensitivity control according to the type of external source
- Power supply through Vivaldi Giove AL3B (not supplied)
- Current 1,2 ampere
- Dimensions (WxHxD) 54x90x63 mm (3 modules)
- Weight 0.10 Kg
- With analog audio input
- Integrated Bluetooth source
- Mono/stereo function selectable by DIP switch
- Built-in Bluetooth source has priority over input signal
- Built-in audio detector sensitivity adjustment
Power amplifier 25+25W Vivaldi Giove A25SBTC
€133.61
Tax included
€133.61
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 1
Frequently bought together
Selection of volume control mode by DIP switch. Internal volume (trimmer) or external potentiometers (mono Vivaldi Giove TVM, stereo Vivaldi Giove TVS).
Supplied with standard or customized PIN (factory programmed PIN code: name max 30 characters, password max 4 numbers) to be communicated when ordering.
STATUS LED:
- blue: bluetooth active
- green: presence of music signal
- red: power on
BUTTONS: play, pause
TECHNICAL DATA
- 1x local audio input terminal (stereo) and 24Vdc power supply
- 1x speaker connection terminal 25W @ 4-8Ohm per channel (minimum impedance 4Ω/channel)
- 2x external remote potentiometer connection clamps
- 1x SMA connector for external bluetooth antenna (if installed not in the room, but in a technical compartment)
