Fracarro 6.7mm indoor coaxial cable with PVC jacket PAS4016102
FRA PAS4016102
8016978052097

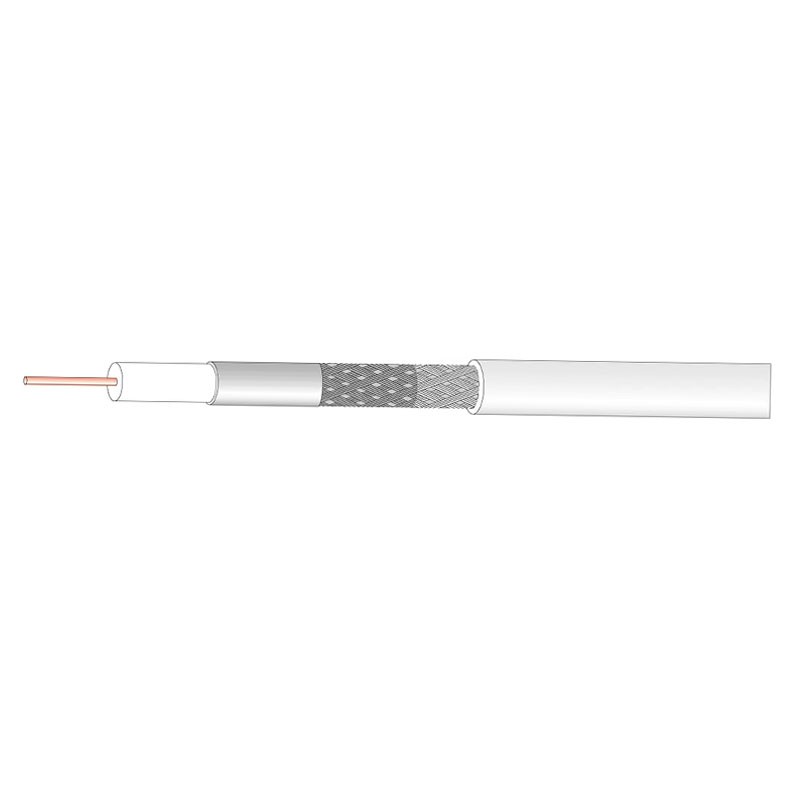

Fracarro 6.7mm indoor coaxial cable with copper (Cu) inner conductor and tinned copper (CuSn) braid; white PVC outer jacket and CPR Eca class.
The selling price is intended per meter.
Minimum saleable quantity: 100 meters.
Fracarro 6.7mm indoor coaxial cable with PVC jacket PAS4016102
€0.56
Tax included
€0.56
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 26000
: 4240
Pay in installments with Klarna
Specifications:
- Capacity: 52
- Propagation rate: 85%
- Minimum bending radius mm: 35
- Resistance: Ohm/Km 22.5
- Outer conductor resistance: Ohm/Km 27
- Inner conductor: Material: Cu
- Dielectric: Material: Pee, Diameter: 4.7
- First screen foil material: Al/Pet
- First screen foil coverage: 100%
- Braid material: CuSn
- Braid coverage: 40%
- Anti-migrating foil: Pet
- Outer sheath: white Pvc material - Diameter 6.7
Attenuation (100m):
- Attenuation 5 dB 1.6
- Attenuation 50 dB 4.6
- Attenuation 200 dB 9.0
- Attenuation 470 dB 14.5
- Attenuation 800 dB 18.6
- Attenuation 1000 dB 21.1
- Attenuation 1350 dB 25.0
- Attenuation 1750 dB 27.9
- Attenuation 2150 dB 31.7
- Attenuation 2400 dB 33.2
- Attenuation 2700 dB 35.8
Reflection loss:
- 30-470 MHz dB >30
- 470-862 MHz dB >25
- 862-1750 MHz dB >20
- 1750-2400 MHz dB >20
Shielding efficiency:
- 5-30 MHz dB >75
- 30-1000 MHz dB >85
- 1000-2150 MHz dB >85
- Shielding class (EN-50117-9-2): B
tutto ok spedizione veloce, prodotto ok
il prodotto mi sembra Buono, per il resto lo vedremo nel tempo
Data sheet
- Diameter: 6,7mm
- Type: TV/SAT Cables
