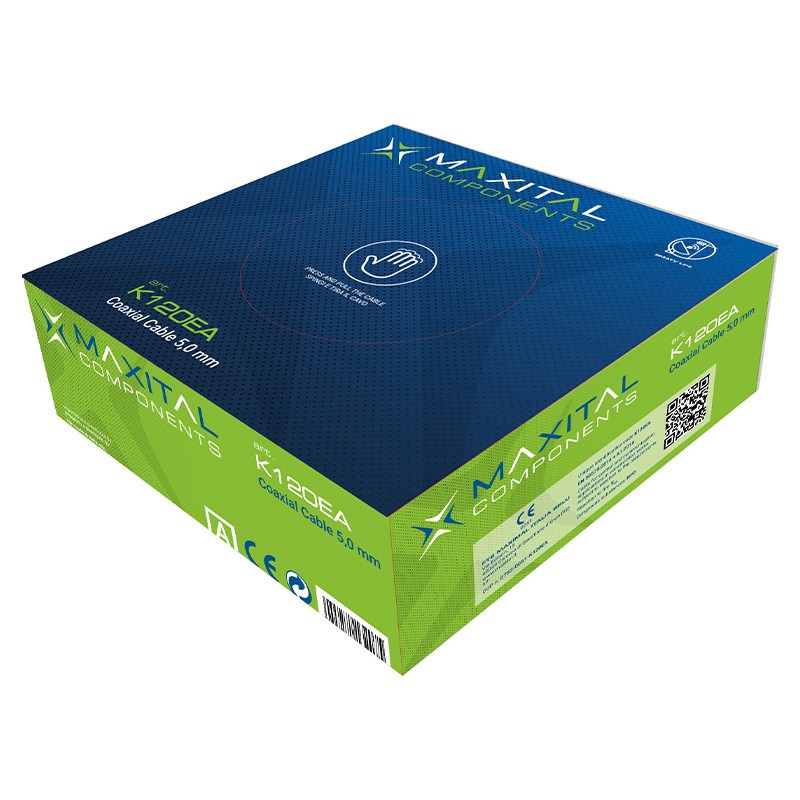

TVSAT Coaxial Cable FTE K120EA 5mm PVC K120EA
FTE K120EA
8055271132075

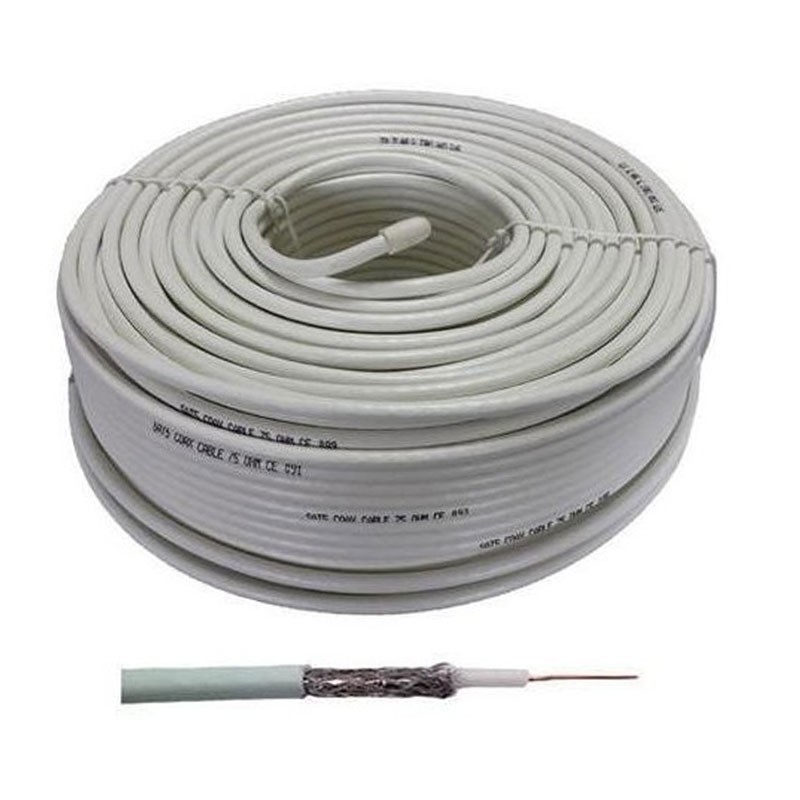

TV-SAT Fte coaxial cable, with CCS center conductor, 5 mm cross section in Class A, constructed with the appropriate specifications for low toxic gas dispersion in case of fire.
Inner conductor made of copper-plated steel, outer sheath of white PVC, braid coverage 55%, excellent shielding class A, CPR Euroclass Eca.
Suitable for distributing TV and SAT signals along medium/short distance.
Sale price is per meter, minimum sellable quantity hank of 100 meters.
TVSAT Coaxial Cable FTE K120EA 5mm PVC K120EA
€0.24
Tax included
€0.24
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 8199
: 3440
Pay in installments with Klarna
Specifications:
- Inner conductor material CCS - Copper-plated steel
- Inner conductor diameter - mm 0.8
- Dielectric material PE foam
- Dielectric diameter: 3.55 mm
- Tape material: Al/Pet
- Braid material: Al
- Number of braid wires: 64 (16 x 4)
- Braid wire diameter: 0.12mm
- Braid optical coverage: 55mm
- Shield type: double
- Outer sheath diameter: 5.0 ± 0.1mm
- Outer sheath material: white PVC - UV resistant
- Reaction to fire - CPR class: Eca
- Minimum bending radius: 100mm
- Impedance: Ohm 75
- Capacity - pF / m 53
- Propagation rate: 83%
- DC resistance inner/outer conductor - Ohm/km: <235 / <58
- Attenuation @ 175 MHz - dB/100m 11.9
- Attenuation @ 470 MHz - dB/100m 17.9
- Attenuation @ 862 MHz - dB/100m 24
- Attenuation @ 950 MHz - dB/100m 25.2
- Attenuation @ 1350 MHz - dB/100m 30.4
- Attenuation @ 1750 MHz - dB/100m 34.9
- Attenuation @ 2150 MHz - dB/100m 38.9
- Attenuation @ 2400 MHz - dB/100m 41.2
- Reflection loss @ 5 ÷ 470 MHz - dB >23
- Reflection loss @ 470 ÷ 1000 MHz - dB >20
- Reflection loss @ 1000 ÷ 2000 MHz - dB >18
- Reflection loss @ 2000 to 3000 MHz - dB >15
- Shielding efficiency: Class A
- Shielding efficiency @ 30 ÷ 1000 MHz - dB >=85
- Shielding efficiency @ 1000 ÷ 2000 MHz - dB >=75
- Shielding efficiency @ 2000 ÷ 3000 MHz - dB >=65
- Minimum installation temperature: -20°C
- Operating temperature: -20/+70°C
Davvero molto comodo è efficace; ottimo materiale
Soddisfatto del acquisto prodotto eccellente
Prodotto eccellente soddisfatto del acquisto
Data sheet
- Diameter: 5mm
- Type: TV/SAT Cables
