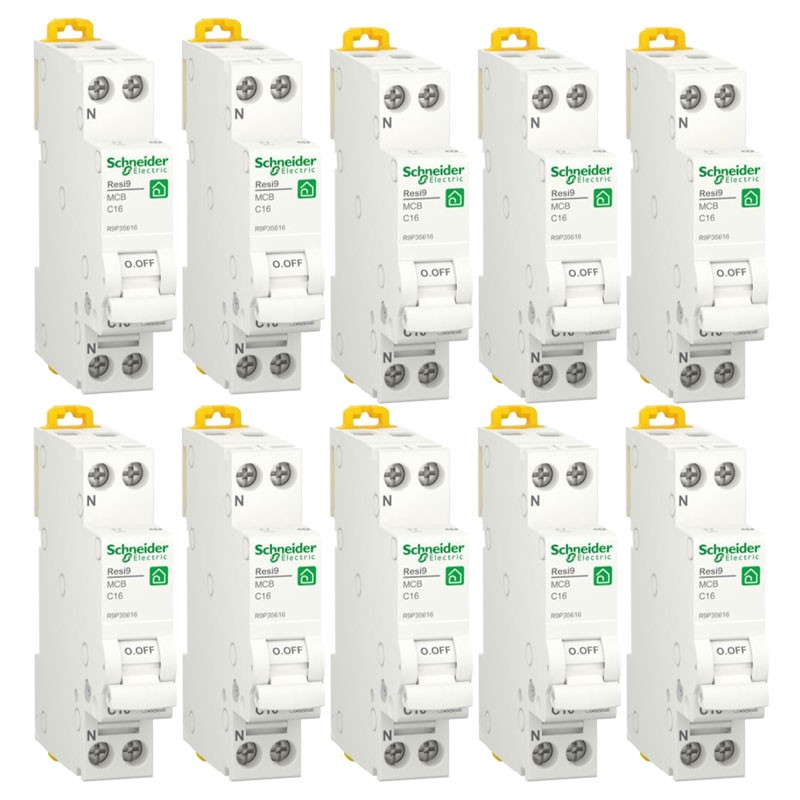

Schneider circuit breaker kit 16A 1P+N 4.5KA C 1 module R9P35616
KIT R9P35616
Kit 10 Pieces Schneider 16A Circuit Breakers, with the following characteristics:
- Poles 1P+N
- Interrupting power 4,5KA
- Intervention curve C
- 1 Module
- Rated insulation voltage 440V
- DIN connection (universal for any switchboard on the market).
With the kit you save compared to individually purchased items
Schneider circuit breaker kit 16A 1P+N 4.5KA C 1 module R9P35616
€66.47
Tax included
€66.47
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 13
Further Schneider circuit breaker combinations:
C curve, trip threshold from 5 to 10 times In, for application of ohmic-inductive circuits with medium inrush currents. And widely used in domestic installations, residential and functional buildings.
A circuit breaker is a safety device capable of automatically (i.e. without external intervention) interrupting the flow of electrical current in an electrical circuit in the event of an overcurrent.
- Schneider Series
- Thermal magnetic circuit breaker
- Rated insulation voltage 440 Vac
- Current In 16A
- Interrupting capacity Icn 4,5kA
- DIN rail mounting bracket
- Nominal operating voltage Ue 230 V AC
- Mains frequency 50/60 Hz
- Switching curve C
- 1 modules
- 1P+N poles
- Height 81 mm
- Recessed depth 44 mm
- Width 18 mm
- Product weight 110 gr
- Clamp connection
- Tightening torque 2 Nm upper or lower part
- Degree of protection IP20.
Prodotti come da descrizione a prezzo competitivo!
Todo perfecto. Trato y envío perfectos. Muchas Gracias.
Ras .produits conformes neuf et bien emballés. Je recommande ce site qui propose des produits de marque a des prix très compétitifs.
Livraison sans aucun soucis.
Precio-calidad excelente.
Todavía no lo he probado, pero me ha gustado su aspecto.
Envío rapidísimo.
Pienso que el embalaje es un poco flojo.
Producto de calidad,nuevo y en perfecto estado
Produit de qualité . Sera jugé à la longue
Transaction Parfaite, rapide et comme indiqué .
tutto bene materiale arrivato nei tempi previsti.
Prodotto come da foto, spedizione veloce
Parfait, rien à rajouter
Data sheet
- KIT:
- Kit Circuit breakers
- Voltage:
- 400VAC
- Modules:
- 1
- Poles:
- 1P+N
- Curve:
- C
- Power:
- 4.5KA
- Amps:
- 16A
- Circuit Protections:
- Circuit breakers
