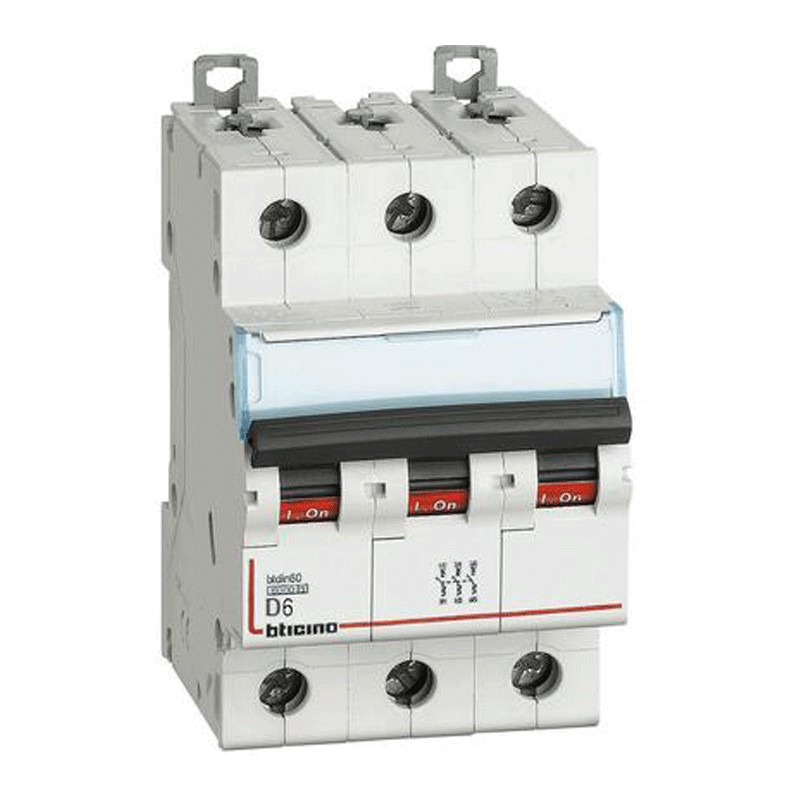

Bticino thermal-magnetic circuit breaker 6A 3 Poles 6KA Curve D 3 Modules FN83D6
BTI FN83D6
8005543476758
Bticino thermal-magnetic circuit breaker:
- Current In 6A
- 3 Poles
- Breaking capacity Icn 6KA
- Tripping curve D
- 3 Modules
Bticino thermal-magnetic circuit breaker 6A 3 Poles 6KA Curve D 3 Modules FN83D6
€104.02
Tax included
€104.02
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 4
: 2
Pay in installments with Klarna
Curve D, trip threshold of 10 to 20 times In, for application of circuits with high inrush currents (motors, transformers, etc.).
A circuit breaker is a safety device that can automatically (i.e., without external intervention) interrupt the flow of electric current in an electrical circuit in the event of an overcurrent.
Characteristics:
- Reference Standard IEC EN 60898-1
- Voltage 400Vac
- Degree of protection IP20
- Height 83mm
- Width 53.4mm
- Depth 76mm
- Maximum cable cross section 25/35mmq
There are no reviews
Data sheet
- Voltage: 400VAC
- Modules: 3
- Poles: 3P
- Curve: D
- Power: 6KA
- Amps: 6A
- Circuit Protections: Circuit breakers
