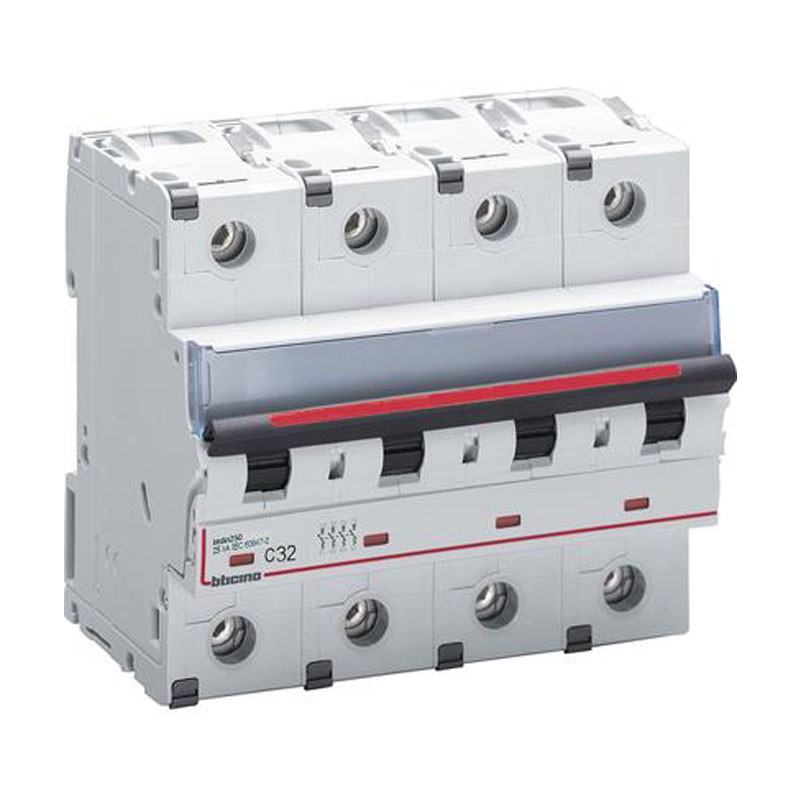

Bticino thermomagnetic circuit breaker 32A 4 Poles 25KA C 6 Modules FV84C32
BTI FV84C32
8005543468340
Bticino Circuit breaker:
- Current In 32A
- Poles 4
- Intervention curve C
- Interrupting power Icu 25KA
- 6 Modules
- Voltage 400Vac
Bticino thermomagnetic circuit breaker 32A 4 Poles 25KA C 6 Modules FV84C32
€227.01
Tax included
€227.01
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 2
Pay in installments with Klarna
C curve, trip threshold from 5 to 10 times In, for application of ohmic-inductive circuits with medium inrush currents. It is widely used in domestic installations.
The circuit breaker is located next to the circuit breaker and integrates a magnetic protection to a thermal one and in case of need interrupts the electric current.
Characteristics:
- Reference standard CEI EN 60947-2
- Degree of protection IP20
- Dimensions: Height 83mm - Width 71.2mm - Depth 76mm
- Maximum cable section 25/35mmq
- Series IT Btdin
There are no reviews
Data sheet
- Voltage: 400VAC
- Modules: 6
- Poles: 4P
- Curve: C
- Power: 25KA
- Amps: 32A
