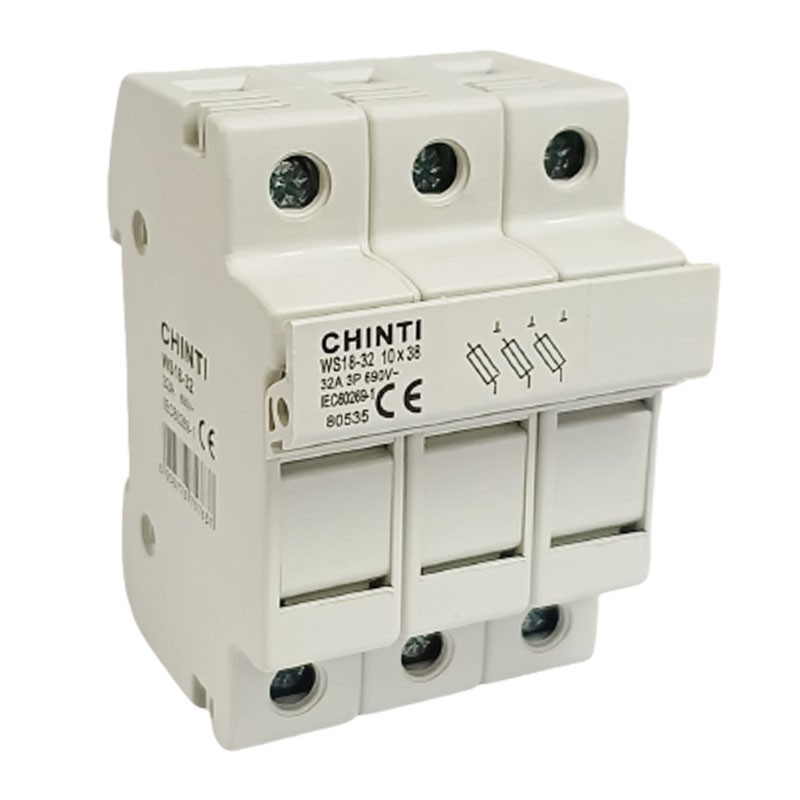

Chint Disconnectable Fuse Holder Base WSB18-32 32A 3P 3 Modules 80535
CHT 80535
8058776757637
Chint sectional fuse holder base WSB18-32 with the following characteristics:
- Number of Poles: 3P
- Rated current: 32 A
- Rated voltage: 230/400 Vac
- Insulation voltage: 690 Vac
- Fuse size: Ø 10.3X38 mm
- Degree of protection: IP20
- Number of modules: 3
Chint Disconnectable Fuse Holder Base WSB18-32 32A 3P 3 Modules 80535
€8.08
Tax included
€8.08
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 5
: 2
Pay in installments with Klarna
Fuse holder bases for housing WS18/32 series cylindrical fuses for protection against overcurrents due to overloads or short circuits. For fuses with dimensions: 10.3x38 mm.
Features:
- Reference standard: IEC/EN 60269-2
- Number of Poles: 3P
- Rated current: 32 A
- Rated voltage: 230/400 Vac
- Isolation voltage: 690 Vac
- Fuse size: cylindrical
- Fuse size: Ø 10.3X38 mm
- Power Dissipation: 9 W
- Number of DIN Modules (1 DIN = 18 mm): 3
- Degree of Protection: IP20
- Dimensions: 62.5x80x54 mm (HxWxD)
There are no reviews
Data sheet
- Type: Fuse holder
- Size: 10.3X38
- Voltage: 230/400VAC
- Modules: 3
- Poles: 3P
- Degree of protection: IP20
- Amps: 32A
