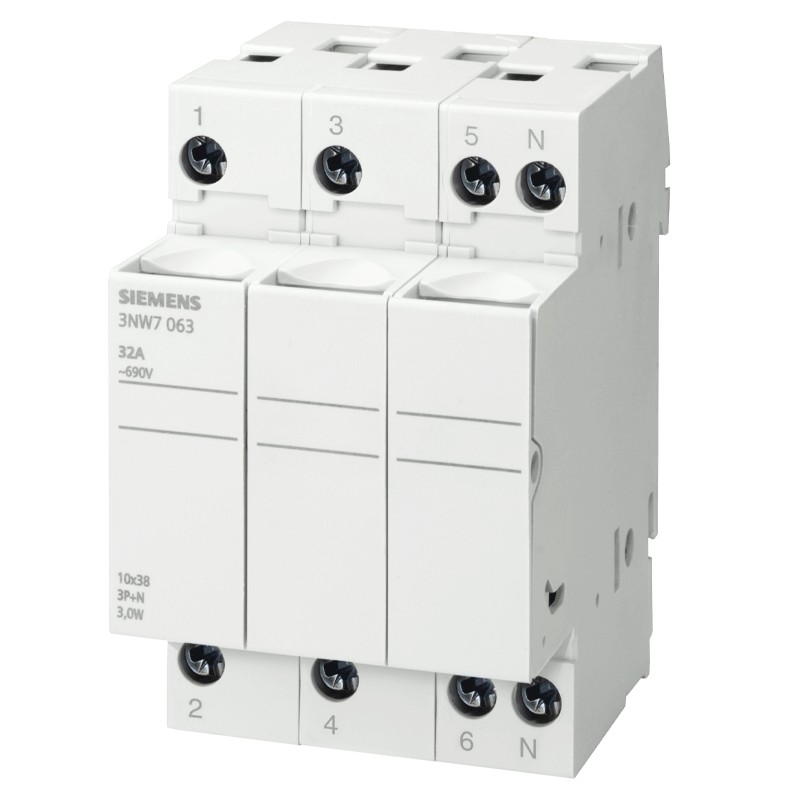

Siemens cylindrical fuse holder 3NW7 3P+N 32A 10,3X38 3M 3NW7063
SIE 3NW7063
4001869315638
Fuse holder for Siemens cylindrical cartridges, series 3NW7, with the following features
- 3 poles+N
- 3 modules
- Fuse cartridge size 10.3 x 38 mm
- Operating voltage at AC nominal value 690 Vac
- Operating current at AC nominal value 32A
Siemens cylindrical fuse holder 3NW7 3P+N 32A 10,3X38 3M 3NW7063
€15.75
Tax included
€15.75
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 404
: 95
Frequently bought together
Fuses offer optimal protection of lines, systems, devices in case of overload and short circuit.
They ensure safe and fast disconnection, for example, to minimize the effect of a short circuit, thus allowing you to protect property and lives.
Features:
- Siemens series
- 3 poles+N
- 3 modules
- Construction size of the fuse cartridge 10.3 x 38 mm
- Operating voltage with AC nominal value 690 Vac
- Protection class IP20
- Operating current at AC nominal value 32A
- Height 81 mm
- Width 54 mm
- Depth 64 mm
- Net weight 196 gr
There are no reviews
Data sheet
- Type:
- Fuse holder
- Size:
- 10.3X38
- Voltage:
- 690VAC
- Modules:
- 3
- Poles:
- 3P+N
- Amps:
- 32A
