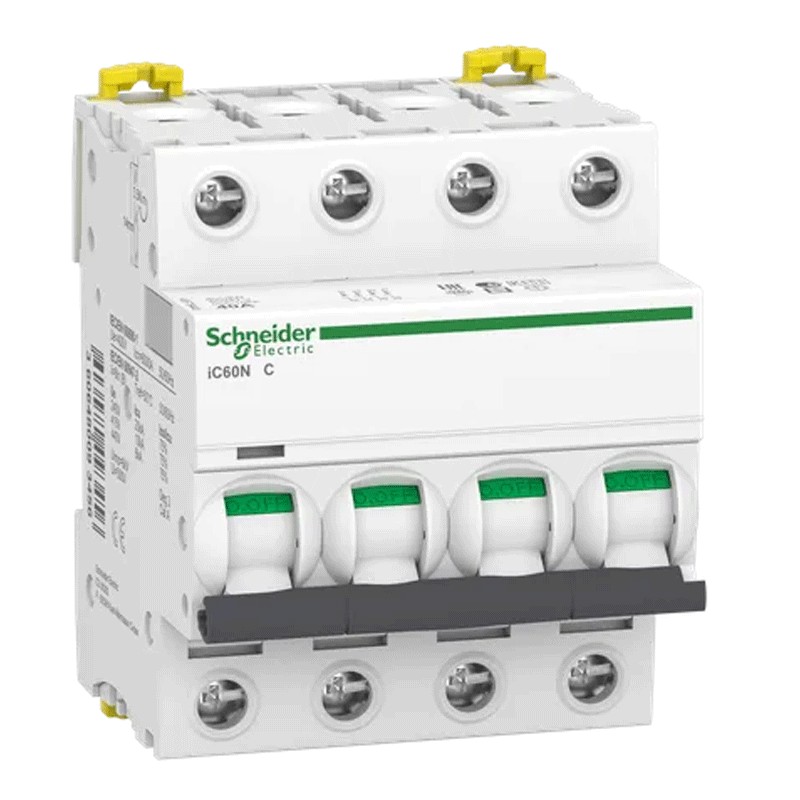

Circuit breaker-Schneider 4P 50A 6 KA C 4 modules A9F79450
SNR A9F79450
3606480093463
Circuit breaker-Schneider 4P 50A 6 KA C 4 modules A9F79450
Circuit breaker-Schneider 4P 50A 6 KA C 4 modules A9F79450
€165.87
Tax included
€165.87
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 32
: 2
Device application: Distribution Range: Acti 9 Type of product or component: Switch, modular product Name: IC60 short Name: IC60N Number of poles: 4P Number of poles protected: 4 rated Current [In]: 50 network Type: AC, DC, Technology trip unit: thermal magnetic Code of the curve: C rated breaking capacity: 10 kA Icu conforming to EN 60947-2 - 180...250 V DC 10 kA Icu conforming to EN 60947-2 - 380...415 V AC 50/60 Hz, 10 kA Icu conforming to IEC 60947-2 - 180...250 V DC 10 kA Icu conforming to IEC 60947-2 - 380...415 V AC 50/60 Hz 20 kA Icu conforming to EN 60947-2 - 220...240 V AC 50/60 Hz 20 kA Icu conforming to IEC 60947-2 - 220...240 V AC 50/60 Hz 36 kA Icu conforming to EN 60947-2 - 12...133 V AC 50/60 Hz 36 kA Icu conforming to IEC 60947-2 - 12...133 V AC 50/60 Hz, 6 kA Icu conforming to EN 60947-2 - 440 V AC 50/60 Hz 6 kA Icu conforming to IEC 60947-2 - 440 V AC 50/60 Hz 6000 A Icn conforming to EN 60898-1 - 400 V AC 50/60 Hz 6000 A Icn conforming to IEC 60898-1 - 400 V AC 50/60 Hz utilization Category: Category A conforming to EN 60947-2 Category A conforming to IEC 60947-2 Attitude to slicing: Yes conforming to EN 60898-1, Yes conforming to EN 60947-2, You conform to IEC 60898-1, It conforms to IEC 60947-2 reference Standards: EN 60898-1, EN 60947-2, IEC 60898-1, IEC 60947-2
Data sheet
- Voltage:
- 400VAC
- Modules:
- 4
- Poles:
- 4P
- Curve:
- C
- Power:
- 6KA
- Amps:
- 50A
- Circuit Protections:
- Circuit breakers
