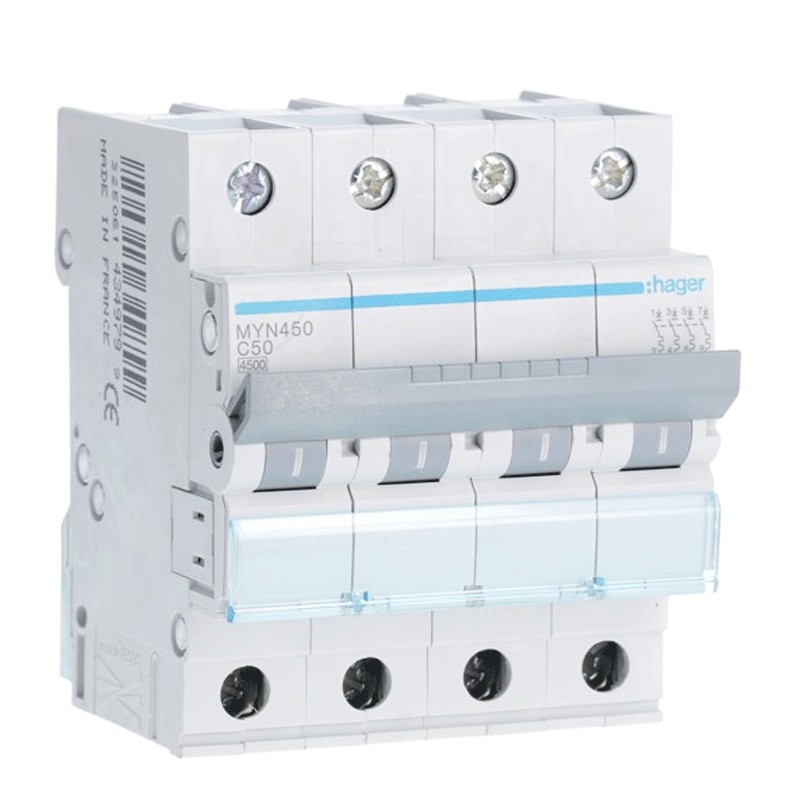

Circuit breaker Hager 4P 50A 4.5 KA C 4 modules MYN450
HAG MYN450
3250614349799
Circuit breaker Hager 4P 50A 4.5 KA C 4 modules MYN450
Circuit breaker Hager 4P 50A 4.5 KA C 4 modules MYN450
€74.61
Tax included
€74.61
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 11
: 1
Pay in installments with Klarna
Technical characteristics Rated operational voltage ac: 230/400 V Rated frequency: 50/60 Hz Rated current in A: 50 To A Poles: 4 P Power rated breaking capacity Icn: 4.5 kA Breaking capacity Icu: 6 kA Curve: C Number of modules 17.5 mm: 4 Power dissipated per pole: 1.3 W Capacity short-circuit - NF EN 60898: 4,5 kA Rated voltage insulation: 500 V The number of operations (mechanical endurance): 20000 Electrical life and number of cycles: 4000 Protection index IP: IP20 Operating temperature: -25 to 60 °C Storage temperature: -25 to 80 °C Tightening torque: 2,8 Nm Execution tropicalized for all climates
There are no reviews
Data sheet
- Voltage: 400VAC
- Modules: 4
- Poles: 4P
- Curve: C
- Power: 4.5KA
- Amps: 50A
- Circuit Protections: Circuit breakers
