Clivet EZCool Quadri Split Inverter Air Conditioner 9+12+12+12BTU R32 A++/A+
KIT CLVEZ9222

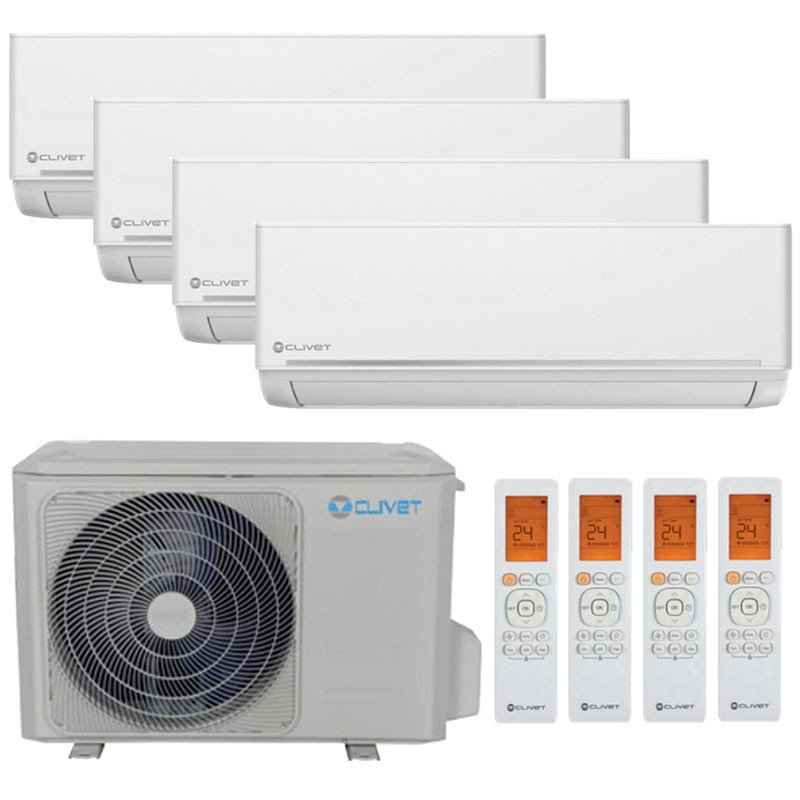

Clivet EZCool 9000+12000+12000+12000BTU Quadri Split inverter air conditioner composed of:

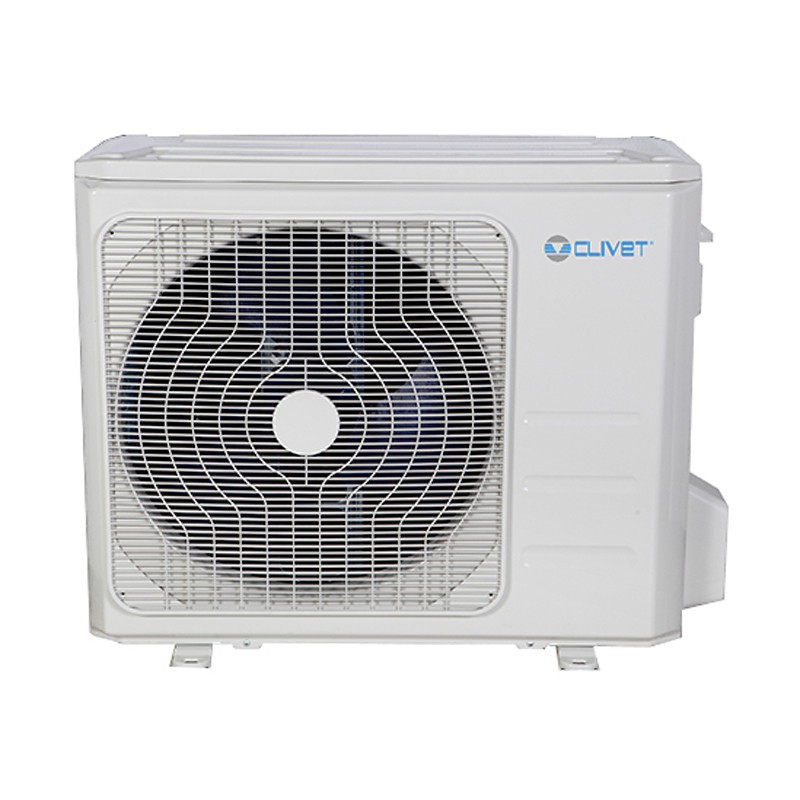

- 1 outdoor unit 10.5KW (36000BTU) with 4 connections MU2-Y105M

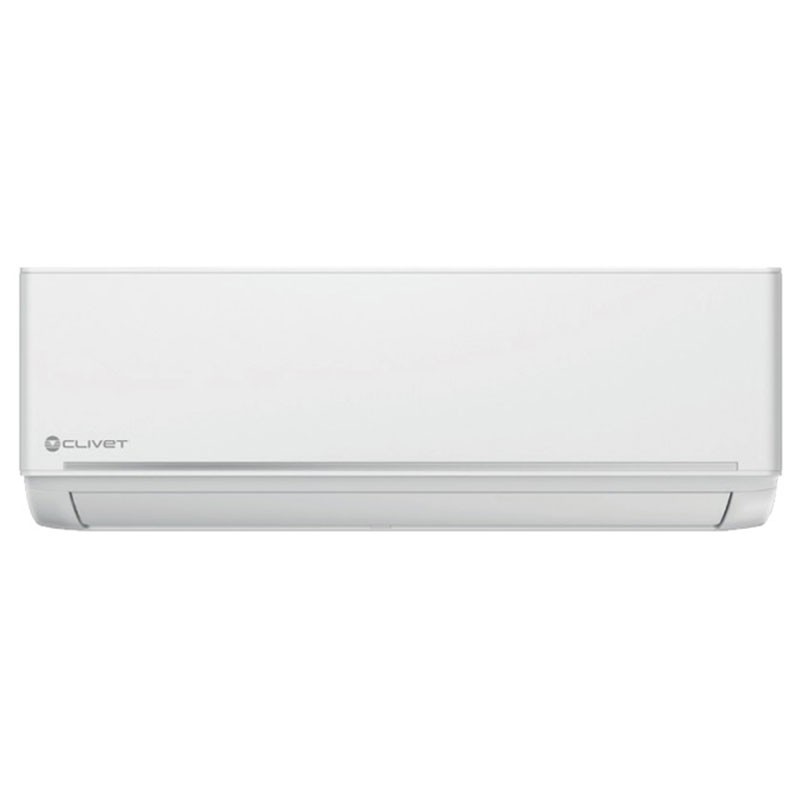

- 1 indoor Split unit EZCool Series 9000BTU 2.7KW ILA1-Y27M
- 3 indoor Split units Series EZCool 12000BTU 3.5KW ILA1-Y35M
- 4 infrared remote controls (RG10A-D2S-BGEF).
Ability to manage Smart: via smartphone with The NetHome Plus app and provision for voice control with Amazon Alexa and Google Assistant (Wifi to be purchased separately code NWMX).
The air conditioner will be delivered pre-charged with gas R32
For three rooms of approx. 35m² and 27m²
The air conditioner is also an heat pump, therefore also suitable for heating environments in winter.
Clivet EZCool Quadri Split Inverter Air Conditioner 9+12+12+12BTU R32 A++/A+
€2,479.99
Tax included
€2,479.99
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 13
: 3
Pay in installments with Klarna
Air conditioners of the same series
Frequently bought together
- -50%
- -50%
Thanks to the optional accessory Wifi Kit (not included) code NWMX you can adjust the temperature, On/OFF and timer of the indoor unit from your smartphone.
Advantages:
- Quiet operation and low power consumption
- MONOSplit/MULTISplit compatible
- Follow-me function: the system gives priority to the temperature sensor in the remote control and adjusts accordingly
Comfort:
- Continuously regulated indoor ventilation
- Super quiet
- Anti Cold Air
- Multi-directional flow
Reliability:
- Self diagnosis
- Emergency function
- Opposing fan rotation
Practicality:
- Universal Mono/Multi Split Indoor Units
- Auto-Restart
Energy Saving:
- 1W Standby
- Sleep Function
- Gear Function (for Multi)
Health:
- High Density Filter
- Cold Catalyst Filter.
Clivet EZCool Specifications 9000 2.7KW
Cooling:
- Min/Max Capacity: 9000 Btu (3100-11600) KW 2.6 (0.9-3.4)
- Rated input power: Min/Max 799W (100-1240)
- SEER 6.20
- Energy class: A++
- EER 3.30
- Indicative annual energy consumption kW/a 147
Heating:
- Min/Max Capacity: 10000 Btu (2800-11500) KW 2.9 (0.8-3.4)
- Rated power consumption Min/Max 789W (120-1200)
- SCOP: 4.00
- Seasonal energy efficiency class A+
- COP 3.71
- Indicative annual energy consumption: kWh/a 804
Indoor Unit Features:
- Dimensions: (WxDxH) 726x210x291mm
- Weight 7.8Kg
- CCF Air Filter
- Treated Air Max cubic meters/min Hi/Mid/Lo 451/325/255
- Dehumidification capacity l/hr 1.0
- Sound pressure level Hi/Mid/Lo dBa 37/29/26
- Sound Power Level dBA 52
- Infrared remote control included with settable temperature from 17 to 30 degrees
- Power supply 230V - 50Hz - 1 Phase
Technical Features Clivet EZCool 12000 3.5KW
Cooling:
- Min/Max Capacity: 12000 Btu (3800-14200) KW 3.5 (1.1-4.2)
- Rated input power: Min/Max 1088W (130-1580)
- SEER 6.10
- Energy class: A++
- EER 3.23
- Indicative annual energy consumption kW/a 201
Heating:
- Min/Max capacity: 13000 Btu (3700-14400) KW 3.8 (1.1-4.2)
- Rated power consumption Min/Max 1018W (100-1680)
- SCOP: 4.00
- Seasonal energy efficiency class A+
- COP 3.74
- Indicative annual energy consumption: kWh/a 906
Indoor Unit Features:
- Dimensions: (WxDxH) 835x208x295mm
- Weight 8.4Kg
- CCF Air Filter
- Treated air Max cubic meters/min Hi/Mid/Lo 575/493/454
- Dehumidification capacity l/hr 1.2
- Sound pressure level Hi/Mid/Lo dBa 38/29/25
- Sound Power Level dBA 54
- Infrared remote control included with settable temperature from 17 to 30 degrees
- Power Supply 230V - 50Hz - 1 Phase
Features 10.5kW Quadri Outdoor Unit (MU2-Y105M):
- Dimensions: (WxDxH) 946x410x810mm
- Weight 68.8 kg
- 4 connections
- Cooling capacity 10.5kW (2.1-10.5)
- Heating capacity 10.8kW (2.3-11.1)
- Sound Pressure Level dBa 62
- Sound Power Level dBA 70
- Power Supply Single-phase 220-240 / 50Hz Phases 1
- Gas piping 3 x (Φ9.52 - 3/8") + 1 x (Φ12.7 - 1/2")
- Liquid piping 4 x (Φ6.35 - 1/4")
- Max/min piping length (each branch) 35 meters
- Max piping length (Total) 80 meters
- Refrigerant Type: R32 Gas
- Max ODU/IDU height difference 15 meters
- Max height difference IDU/IDU 10 meters
- Refrigerant precharge Kg/m 2.1/4x7.5)
- Additional refrigerant charge g/m 12
- Cooling operating range -15-50 Degrees (Outdoor)
- Heating operating range -15-24 Degrees (Outdoor)
There are no reviews
Data sheet
- Air conditioners: Quadrisplit
- Gas: R32
- Power: 9+12+12+12 BTU
- Room Size: 35m²+35m²+35m²+27m²
- Energy class: A++
- Series: EZCool
