Clivet Duct 2 Ducted Air Conditioner 14.1kW 48000BTU R32 A++
KIT ID3-XY140M

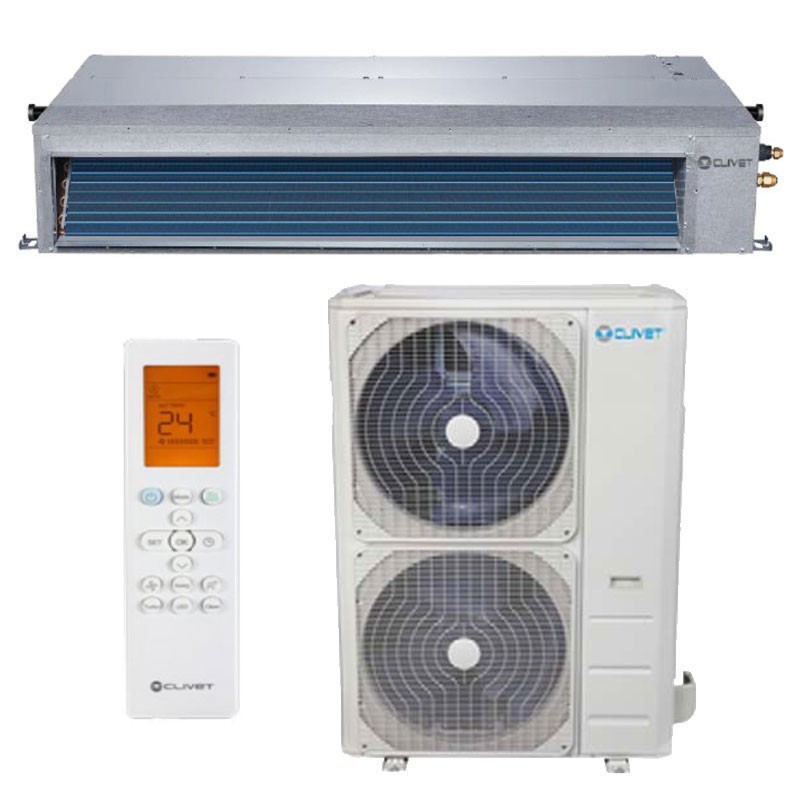

Ducted air conditioner Clivet 14,1kW 48000BTU, for Light Commercial systems, with Gas R32, composed by:
- 1 piece Indoor unit (code ID3-XY140M),
- 1 piece outdoor unit (code MC3-Y140T)
- 1 standard remote control RG10A-D2S-BGEF.
For a room of approximately 180m²
The air conditioner will be delivered pre-charged with gas R32
The air conditioner is also an heat pump, therefore also suitable for heating environments in winter.
Clivet Duct 2 Ducted Air Conditioner 14.1kW 48000BTU R32 A++
€2,823.97
Tax included
€2,823.97
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 2
Pay in installments with Klarna
Air conditioners of the same series
Frequently bought together
- -50%
- -50%
Advantages:
- Constant flow function: the fan adapts the head to the pressure drop
- Air intake from the rear or from below can be modified directly on site
- Up to 160 Pa available head
- Built-in condensate drainage pump, 750mmh2O head
SET Specifications:
Cooling:
- Cooling Capacity kW 14.1 (3.5-15.5)
- Cooling Capacity BTU 48.000 (12000-53000)
- Cooling Energy Class A++
- Seer 6.10
Heating:
- Heating capacity kW 16.1 (4.1-18.2)
- Heating Capacity in BTU 55.000 (14000-62000)
- Scop 4.0
- Prev.disp. 0-160
- Heating energy class A+
TECHNICAL SPECIFICATIONS Indoor Unit:
- Dimensions: W x D x H 1200x874x300
- Weight Kg 47,6
- Air Filter R/W
- Air Flow m3/h (Hi/Mid/Lo) 2400/2040/1680
- Sound Power Hi dB(A) 68
- Sound pressure Hi/Mid/Lo dB(A) 51/50/48
- Power supply 230V - 50Hz Phases 1
TECHNICAL SPECIFICATIONS Outdoor unit:
- Dimensions: L x W x H 952x415x1.333
- Weight Kg 106,7
- Sound Power dB(A) 72
- Sound pressure dB(A) 66
- Refrigerant R-32 / 675
- Power supply 400V / 50hz / Phases 3 + N
- Liquid connection diameter 9,52 (3/8")
- Gas connection diameter 15,9 (5/8")
- Refrigerant precharge Kg/m 2,8/5
- Equivalent length Max 65 meters
- Maximum height difference EU/UI 30 meters
- Additional refrigerant charge 24 g/m
Electrical connections:
Outdoor Unit:
- Power supply 400V 50Hz Phases 3+N
- Number of cables / Section 4x2,5mmq + G
- Signal 2x0,2mmq
Indoor Unit:
- Power supply 230V 50Hz Phases 1
- Number of cables / Section 2x1mmq + G
- Signal 2x0,2mmq
Machine functions:
- Follow Me
- Turbo
- Do not disturb
- Continuous speed adjustment
- External fan with 7 speed levels
- Anti cold air function
- Temperature compensation
- Refrigerant leakage alarm
- Auto diagnosis
- Emergency function
- Auto defrost
- Technical room air conditioning
- Condensate drain pump
- On/Off contact
- Remote alarm port
- Timer
- Sleep function
- Gear
- Air Inlet
- I-Clean
Accessory
Clivet wired control for ducted and cassette air conditioners KJR120C1E.
There are no reviews
Data sheet
- Air conditioners: Ducted
- Gas: R32
- Power: 48000 BTU (14 Kw)
- Room Size: 180m²
- Energy class: A++
- Series: Duct 2
