Clivet Duct Ducted Air Conditioner 2 10.6kW 36000BTU R32 A++
KIT ID3-XY105M

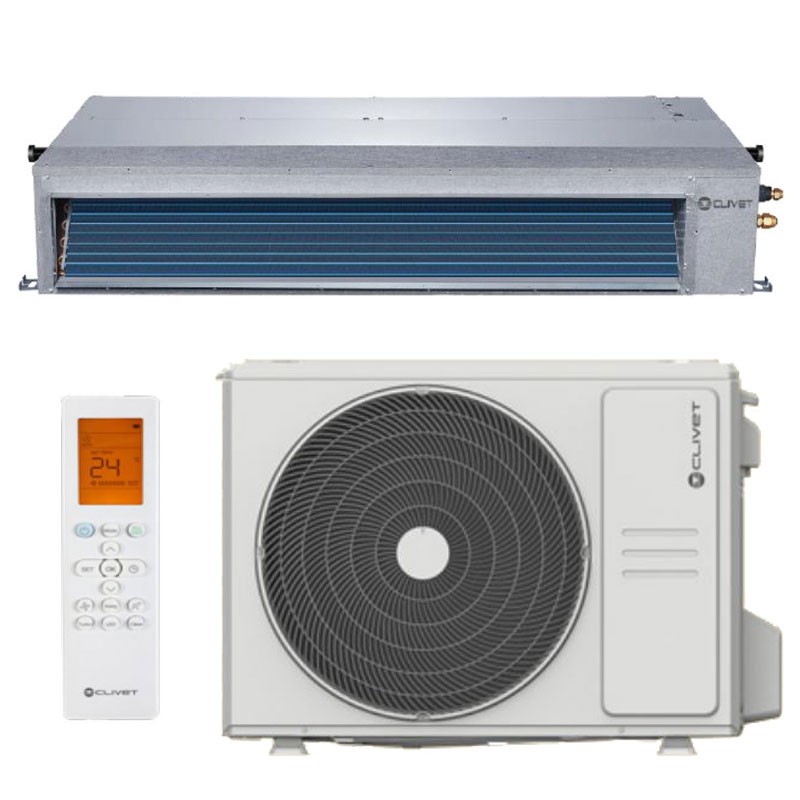

Clivet Ducted air conditioner 10,6kW 36000BTU, for Light Commercial systems, with Gas R32, consisting of:
- 1 Indoor unit (code ID3-XY105M)
- 1 outdoor unit (code MC3-Y105T)
- 1 standard remote control RG10A-D2S-BGEF.
For a room of approximately 150m²
The air conditioner will be delivered pre-charged with gas R32
The air conditioner is also an heat pump, therefore also suitable for heating environments in winter.
Clivet Duct Ducted Air Conditioner 2 10.6kW 36000BTU R32 A++
€2,552.97
Tax included
€2,552.97
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 2
Pay in installments with Klarna
Air conditioners of the same series
Frequently bought together
- -50%
- -50%
Advantages:
- Constant flow function: the fan adapts the head to the pressure drop
- Air intake from the rear or from below can be modified directly on site
- Up to 160 Pa available head
- Built-in condensate drainage pump, 750mmh2O head
SET Specifications:
Cooling:
- Cooling Capacity kW 10.6 (2.7-11.8)
- Cooling Capacity BTU 36.000 (9300-40200)
- Energy Class Cooling A++
- Seer 6.10
- Annual Energy Consumption Kwh/a 602
Heating:
- Heating Capacity kW 11.7 (2.8-12.8)
- Heating Capacity BTU 40.000 (9500-43800)
- Scop 4.0
- Heating energy class A+
TECHNICAL SPECIFICATIONS Indoor Unit:
- Dimensions: L x W x H 1360x774x249
- Weight Kg 40,5
- Air Filter R/W
- Air Flow m3/h (Hi/Mid/Lo) 1400/1150/750
- Sound power Hi dB(A) 63
- Sound pressure Hi/Mid/Lo dB(A) 47/43/40
- Power supply 230V 50 Hz
TECHNICAL SPECIFICATIONS Outdoor unit:
- Dimensions: L x W x H 946x410x810
- Weight Kg 81,5
- Sound Power dB(A) 68
- Sound pressure dB(A) 64
- Refrigerant R-32 / 675
- Power supply 400V/50/3+1
- Cooling operating range (indoor 17-32 degrees) (outdoor -15-50 degrees)
- Heating operating range (indoor 0-30 degrees) (outdoor -20-24 degrees)
- Equivalent length max 65 meters
- Maximum height difference Ui/UE 30 meters
- Refrigerant precharge Kg/m 2,4/5
- Additional refrigerant charge g/m 24
- Connection diameter: Liquid 9.52 (3/8")
- Gas connection diameter: 15,9 (5/8")
Machine functions:
- Follow Me
- Turbo
- Do not disturb
- Continuous speed adjustment
- External fan with 7 speed levels
- Anti cold air function
- Temperature compensation
- Refrigerant leakage alarm
- Auto diagnosis
- Emergency function
- Auto defrost
- Technical room air conditioning
- Condensate drain pump
- On/Off contact
- Remote alarm port
- Timer
- Sleep function
- Gear
- Air Inlet
- I-Clean
Accessory
Clivet wired control for ducted and cassette air conditioners code PEKA00005(IA3-XY.
There are no reviews
Data sheet
- Air conditioners: Ducted
- Gas: R32
- Power: 36000 BTU (10 Kw)
- Room Size: 150m²
- Energy class: A++
- Series: Duct 2
