Giacomini valve F-M butterfly handle red 1F x 1M R259X007
GIA R259X007
8009902003067
Giacomini ball valve, with female-male connections. Connections G 1 "F x G 1 "M. Size 1 "F x 1 "M.
Suitable for heating/cooling water and non-hazardous gas and liquid hydrocarbon systems.
Giacomini valve F-M butterfly handle red 1F x 1M R259X007
€13.24
Tax included
€13.24
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 89
: 34
Pay in installments with Klarna
Features:
- Giacomini series
- Finishing: chromed brass
- Handle type: butterfly
- Handle colour: red
- Standard passage
- For hydraulic systems and liquid hydrocarbons
- Minimum operating temperature: -20 °C with 50 % glycol solutions
- Maximum operating temperature with dry saturated steam: 185 °C with 1,05 MPa (10,5 bar)
- Maximum operating pressure at 20 °C with water and non-hazardous gases: 4,2 MPa (42 bar) for 1/2 "F, 3/4 "F 3,5 MPa (35 bar) for 1 "F, 1-1/4 "F
- Temperature range with liquid hydrocarbons: -20÷60 °C
- Maximum working pressure at 20 °C with liquid hydrocarbons*: 1,2 MPa (12 bar)
- Valve in brass UNI EN 12165 CW617N chrome plated or non chrome plated
- Control rod with double O-ring seal
- Nut with anti-corrosion coating, warranty seal and hologram
- Red painted aluminium butterfly handle

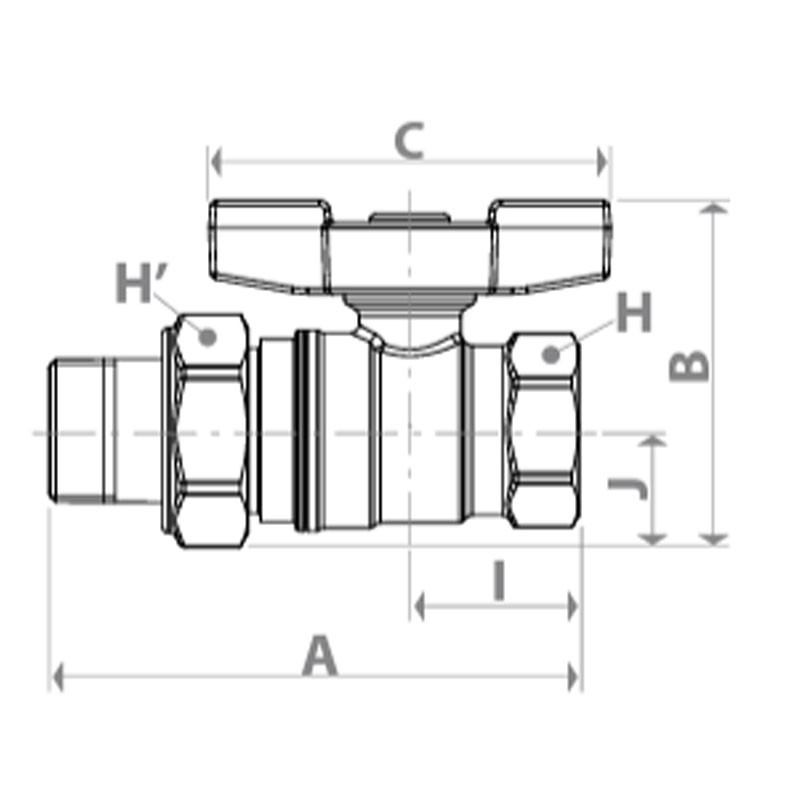

- Dimensions:
- DN22
- A110
- I38
- B72
- J26
- C73
- H ch 39 mm
- H' ch 46 mm
- Kv 36,3
Tutto bene, sembra buono lo devo ancora montare vedremo.
Produit conforme au remplacement vanne actuelle
Data sheet
- Type: Ball valves
- Connection: M/F
- System: Water
- Hoses: 1
