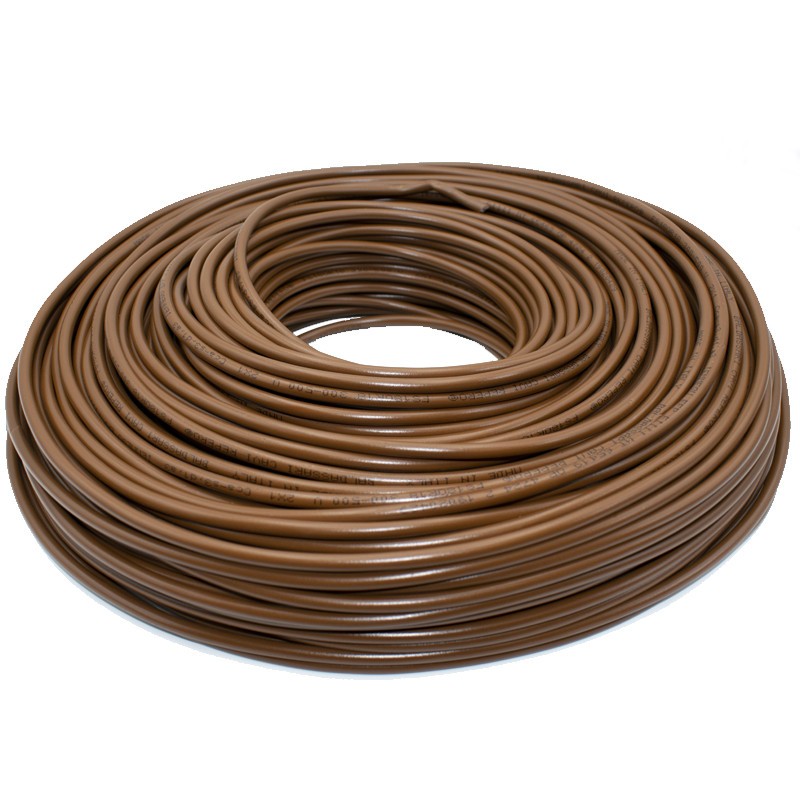

CPR cable FS18OR18 5 G 2,5 mmq 300/500V Cca-s3 d1a3
9X9 FS18R5G2,5
CPR cable FS18OR18 5 G 2,5 mmq with yellow/green: (replaces the old Fror):
- Power, signaling and control cable
- Nominal voltage Uo/U: 300/500
- Insulated in PVC quality S18 under sheath of PVC quality R18
- With particular characteristics of reaction to fire and in compliance with the Construction Products Regulation CPR (EU) n°305/11
- Suitable for fixed installation or for temporary installation in places with fire hazards
- For indoor use in dry or wet rooms.(CEI 20-40).
The producers of our cables are:
- Baldassari cavi
- Icel
- La Triveneta
- Prysmian
This product doesn t benefit from the right of withdrawal Cable cut and therefore non-refundable
CPR cable FS18OR18 5 G 2,5 mmq 300/500V Cca-s3 d1a3
€2.32
Tax included
€2.32
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 623
Pay in installments with Klarna
Two-year warranty
Features:
- Conductor Flexible annealed red copper wire, class 5
- Insulation PVC compound of S18 quality
- Outer sheath R18 quality PVC compound
- Color Energy cores (from 2 to 5 conductors): colored cores according to CEI UNEL 00722 or numbered in black color with or without protection conductor Signaling and control (>5 cores): black color with progressive numbering according to CEI UNEL 00722 with or without protection conductor
- Sheath color Brown
- Rated voltage Uo/U: 300/500 V
- Maximum working temperature: 70°C
- Minimum operating temperature: -15°C (in the absence of mechanical stress)
- Minimum installation temperature: 0°C
- Maximum short circuit temperature: 160°C
- Maximum tensile stress: 50 N/mm2
- Minimum bending radius: 4 times the maximum outer diameter
- Application Suitable for fixed installation or temporary installation in places with fire hazard
- For indoor use in dry or wet rooms (ref. CEI 20-40)
The FS18OR18 cables belong to the AFIAM line and are marked Cca-s3,d1,a3, to indicate that they comply with the Construction Products Regulation (CPR) in accordance with the requirements prescribed in the Standard EN 50575:2014+A1:2016 and to indicate that they are of the non-fire propagating type in accordance with the self-extinguishing requirements prescribed in the Standard CEI EN 50399 in whose tests are also measured heat emission, smoke production and possible dripping during the flame development test.
FS18OR18 cables are also flame retardant on the single vertical cable as per EN and IEC 60332-1-2 (CEI 20-35) tests. In addition, to prevent further risks arising from substances emitted during the combustion of plastic materials, the FS18OR18 cables are made with special compounds with reduced emission of halogens, with a quantity of hydrochloric acid, contained in the fumes emitted in case of combustion, less than 18%.
FS18OR18 cables belong to the ecological line called ECOGAMMA marked by the symbol of the Windmill. In these ecological cables, lead has been eliminated, a heavy metal, dangerous for the environment and for man if present in excessive quantities.
Come da specifiche
.
le scotch qui l'entoure de mauvaise qualité (trop de colle qui s'accroche partout)
ottimo prodotto. lo consiglio per la qualità dei materiali usati
Vorrei maggiori informazioni sul prodotto, sul suo uso, sulle specifiche.
Data sheet
- Section: 2.5 mmq
- With yellow/green: No
- Number of cables: 5
