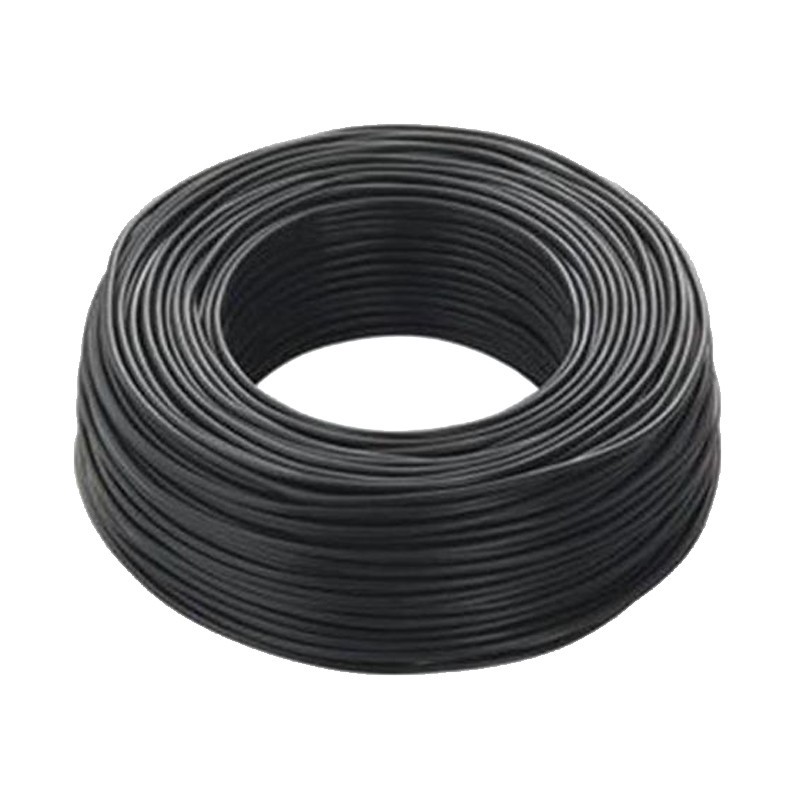

Cable FG17 1X2,5mmq 450/750V Black 100 Metres

Brand: Cavi

Cod: 9X9 FG171X2,5NEM EAN:

Cable FG17 1X2,5mmq 450/750V Black skein 100 M for low voltage, reaction to fire compliant with CPR Regulation 305/2011/EU.

The producers of our cables are:

Baldassari cavi
Icel
La Triveneta
Prysmian

The delivery of the cable from one manufacturer rather than another is dictated by the availability of the moment. All our cables comply with the relevant legal regulations.

Cable FG17 1X2,5mmq 450/750V Black 100 Metres

€57.80 Tax included

€57.80

Cable FG17 1X2,5mmq 450/750V Black 100 Metres

€57.80
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion

Items Available: 331

: 127

Altre disponibilità dal produttore

Pay in installments with Klarna

Two-year warranty

Easy return within 14 days

Purchase with tax breaks

Are you a professional ?

Request access to

Description

Features:

Conductor: bare copper, flexible training, class 5
Insulation: elastomeric crosslinked LS0H, quality G17
Nominal voltage Uo/U: 450/750 V
Maximum operating temperature: 90°C
Minimum operating temperature: -30°C (without mechanical stress)
Maximum temperature of short circuit: 250°C
Good sliding properties in pipes, good abrasion resistance, excellent spellabilità
Minimum temperature of installation: -15°C
The minimum bending radius recommended: 4 times the cable diameter
The maximum tensile stress recommended: 50 N/mm2 of the section of the copper
Diameter approximate conductor 2.0 mm
Average thickness of insulation-0.8 mm
Max outside diameter 4.1 mm
Electrical resistance max at 20°C /km 7,98.

Suitable in environments where it is essential to the preservation of the people: schools, offices, theatres, subways, hospitals, places of worship, malls and places of public entertainment and entertainment. For installation within a pipe, or recessed or closed systems similar. For fixed installation and protected within lighting fixtures or equipment, break and command. When the installation is protected inside of equipment or interruption of command for this cable is permitted for voltages up to 1000 V ac or 750 V in c.c. in relation to the earth. Suitable for installations beam in environments with a greater risk in the event of a fire. Not suitable for laying outdoors.

Reference Regulation the Construction Products 305/2011 EU Norm EN 50575: Given the properties of the limit the development of the fire and noxious fumes, the cable is suitable for power supply in buildings and other civil engineering works.

Reaction to fire:
