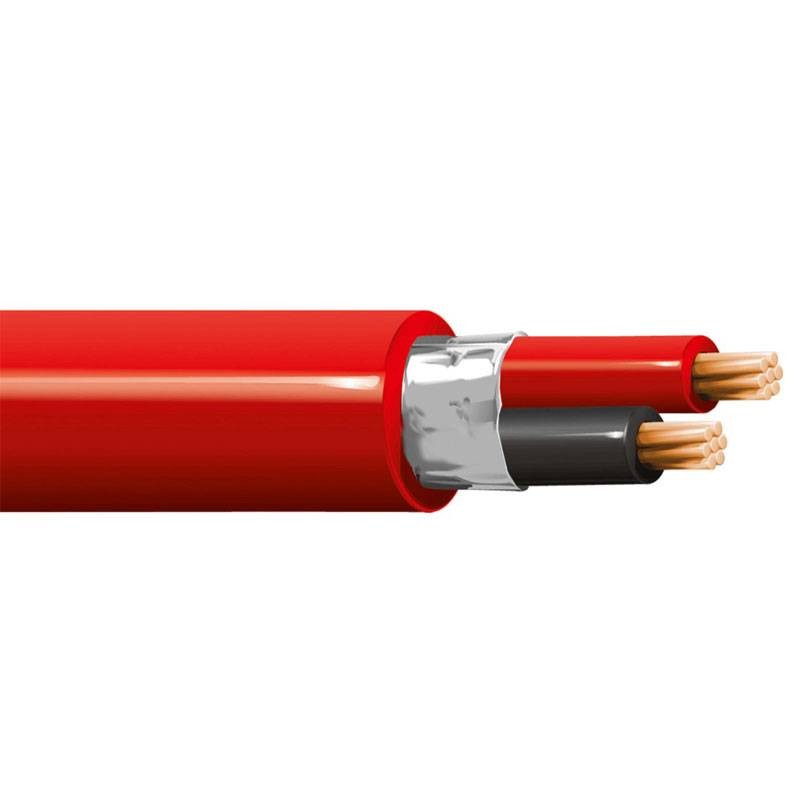

Fire Fighting Cable TW/SCH 2x2.5 sq. mm red EN50200PH120
ITC SF225RZ1000
Firefighting cable TW/SCH 2x2.5 sq. mm red EN50200PH120 with the following characteristics:
- Insulation: G29 low capacitance
- Conductor color: red, black
- Outer sheath color: red
- Outer sheath diameter: 8.5mm
- Rated voltage: 100/100V
- Operating temperature -20 / +90 °C
- Test voltage 2.5 KVac
The selling price is intended per meter.
The producers of our cables are:
- Baldassari cavi
- Icel
- La Triveneta
- Prysmian
This product doesn t benefit from the right of withdrawal Cable cut and therefore non-refundable
Fire Fighting Cable TW/SCH 2x2.5 sq. mm red EN50200PH120
€2.03
Tax included
€2.03
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 500
Pay in installments with Klarna
Two-year warranty
Shielded 30-minute fire-resistant cables for fixed automatic fire detection and fire alarm systems. Halogen-free, very low smoke and toxic gas emission, and non-fire propagating. Suitable for addressed systems, indoor installations in rooms open to the public, humid and outdoor (non-severe) environments and for cohabitation with 450/750V and 0.6/1kV energy cables.
Features:
- Conductor 1 CU 2x2.50 mm²
- Conductor 1 (Resistance) 8 Ohm/Km
- Insulation G29 low capacitance
- Conductor color Red, Black
- Foil 1 Al/Pet 100 %
- Outer Sheath Thermoplastic LSZH Quality M16 Red
- Outer sheath (Diameter) 8.5 mm
- Mutual or coaxial cable capacitance: MUTUA 140 pF/m
- Characteristic inductance 0.65 mH/Km
- Insulation Resistance (20°C) Min 500 GOhm x Km
- Continuity wire CUSn 16 x 0.20 mm
- Rated voltage 100/100 V
- Operating temperature range -20 / +90 °C
- Sheath insulation C-4 (U0=400V)
- Test voltage 2.5 KVac
- Minimum bending radius 12 x O.D
Ideal for addressed systems, Permitted for outdoor or underground installation in conduit.
CPR Fire rating according to EN 50575: Ccas1b,d1,a1.
There are no reviews
Data sheet
- Section: 2.5 mmq
- Number of cables: 2
