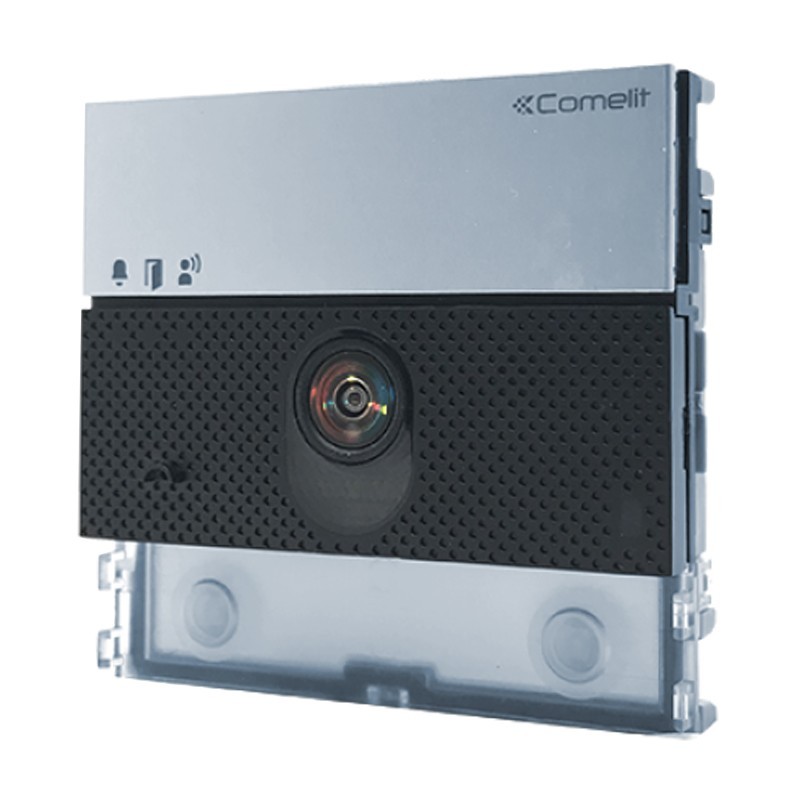

Comelit audio and video module for Ultra Simplebus1 UT1020 push-button panel
COE UT1020
8023903400007
Comelit audio and video module for Ultra push-button panel Simplebus 1 system. To be used in systems with power supply unit Art. 1595 and Art. 4888C.
Comelit audio and video module for Ultra Simplebus1 UT1020 push-button panel
€565.42
Tax included
€565.42
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 1
Frequently bought together
Benefits:
- Easy to install and simple to configure thanks to smart programming of call buttons
- Twilight sensor to automatically turn off the backlight of name tags during daylight hours
- Omni-directional digital microphone and dual speakers for high fidelity audio
- Wide-angle colour camera (field of view: 120° horizontal, 90° vertical)
- Audio/visual aid signals for the disabled activated by programming
- Ready for 2 call buttons
- To be completed with cap, single button or double button made of professional plastic with anti-yellowing and anti-opacification treatment or aluminium
- Adjustments and programming without removing the module
- Dimensions: 1 Ultra module
- ULTRA, the new most technologically advanced push-button panel with maximum ease of installation.
Features:
- Modular typology
- Dimensions: Product height (mm) 90 - Product width (mm) 100 - Product depth (mm) 35
- Product weight (g) 275
- Product colour Black RAL9005, Transparent, Aluminium
- Material Polycarbonate, Aluminium alloy
- Flush Mounting Yes, with dedicated accessory
- Wall mounting Yes, with dedicated accessory
- Audio/video Simplebus 2 with power supply unit art. 4888C
- Microphone Digital audio MEMS sensor, omnidirectional
- Loudspeaker 28mm (Ø), 8 Ohm, 1W (2)
- Sensor type 1/3" CMOS
- Camera Color
- Lens (mm) 1.79
- Viewing angle (H x V - °) 120 x 90
- Sensitivity (lux) 0.45
- Resolution (H x V - pixels) 1288 x 968
- External power supply
- Supply voltage 33VDC
- Absorption in stand-by (W) 1.5
- Maximum absorption (W) 6
- Type of call Buttons
- Number of buttons (No.) 2
- Colour of backlighting White, Off
- Terminals L V+ V- COM NC NO SE GND RTE TX- TX+ RX- RX+
- Number of inputs (No.) 1
- Number of outputs (No.) 2
- Communication ports Micro-USB
- Twilight sensor Yes
- Speaker volume
- Microphone volume
- Backlight brightness
- Operating temperature (°C) -25 ÷ 55
- Operating humidity (RH max - %) (%) 25 ÷ 95
- Environmental class IV
- Compliance and Certifications RoHS II - 2011/65/EU (EN 50581:2012), EMC 2014/30/EU (EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011)
- Door opener Yes
- Number of auxiliary relays (n°) 1
- Input for local door opener button Yes
- Input for door open signalling Yes
- Yes Visual signalling of system status
- Acoustic signalling of system status Yes
- Voice synthesis of system status Yes
There are no reviews
Data sheet
- Type:
- Door stations/Outdoor Intercoms
- Components:
- Modules
