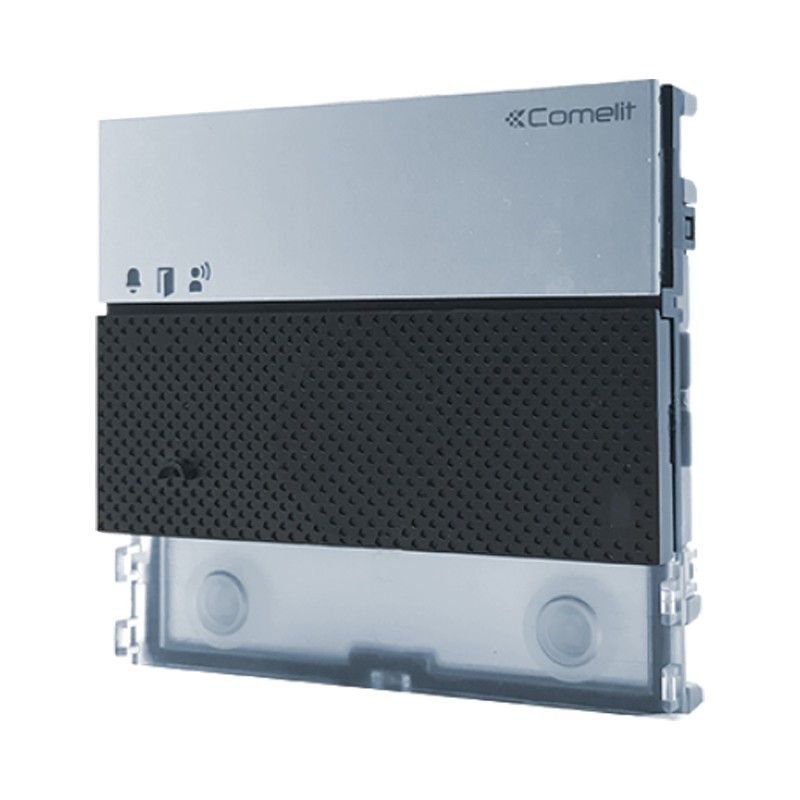

Comelit audio module for Ultra Simplebus1 push-button panel UT1010

Brand: Comelit

Cod: COE UT1010 EAN: 8023903399950

Comelit audio module for Ultra push-button panel Simplebus1 system. To be used in systems with power supply unit art.1595 and art. 4888C.

€176.99 Tax included

€176.99

€176.99
Tax included

EXTRA

Add the coupon code in the payment page

Limited-time promotion

Items Available: 3

Pay in installments with Klarna

Two-year warranty

Easy return within 14 days

Are you a professional ?

Request access to

COE 1595

€68.12

COE 4888C

€304.22

Benefits:

Easy to install and simple to configure thanks to smart programming of call buttons
Twilight sensor to automatically turn off the backlight of name tags during daylight hours
Omni-directional digital microphone and dual speakers for high fidelity audio
Audio/visual aid signals for the disabled that can be activated via programming.
Ready for 2 call buttons
To be completed with cap, single button or double button in professional plastic with anti-yellowing and anti-opacification treatment or in aluminium.
Adjustments and programming without removing the module
Dimensions: 1 Ultra module
ULTRA, the new most technologically advanced push-button panel with maximum ease of installation.

Features:

Modular typology
Dimensions: Product height (mm) 90 - Product width (mm) 100 - Product depth (mm) 35
Product weight (g) 275
Product colour Black RAL9005, Transparent, Aluminium
Material Polycarbonate, Aluminium alloy
Flush Mounting Yes, with dedicated accessory
Wall mounting Yes, with dedicated accessory
Audio/video Simplebus 2 with power supply unit art. 4888C
Audio Simplebus 1
Microphone MEMS digital audio sensor, omnidirectional
Loudspeaker 28mm (Ø), 8 Ohm, 1W (2)
External power supply
Supply voltage 33VDC
Stand-by power consumption (W) 1.5
Maximum power consumption (W) 3.5
Call type Buttons
Number of buttons (No.) 2
Colour of backlighting White, Off
Terminals L V+ V- COM NC NO SE GND RTE TX- TX+ RX- RX+
Number of inputs (No.) 1
Number of outputs (No.) 2
Communication ports Micro-USB
Twilight sensor Yes
Speaker volume Yes
Microphone Volume Yes
Backlight brightness Yes
Operating temperature (°C) -25 ÷ 55
Operating humidity (RH max - %) 25 ÷ 95
Environmental class IV
Conformity and Certifications RoHS II - 2011/65/EU (EN 50581:2012), EMC 2014/30/EU (EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011)
Door opener Yes
Number of auxiliary relays (n°) 1
Input for local door opener button Yes
Input for door open signalling Yes
Yes Visual signalling of system status
Yes Acoustic signalling of system status
Voice synthesis of system status Yes
Button type Mechanical.
