Kit Single-family Video Door Phone Comelit 2-wire Hands-free Quadra And Maxi 8461X

Comelit
COE 8461X 8023903288612

Single-house video entry kit QUADRA and MAXI, 2 wires simplebus 2 composed by:

  • 1 Quadra series wall-mounted door unit art. 4893M
  • 1 Colour hand-free monitor Maxi series art. 6801W
  • 1 Power supply unit item 1209
  • 1 Built-in box art. 6817
  • 1 Wall bracket art. 6820
  • 1 Termination clamp art. 1216
Request info about this product

Kit Single-family Video Door Phone Comelit 2-wire Hands-free Quadra And Maxi 8461X

€620.71 Tax included
€620.71

Kit Single-family Video Door Phone Comelit 2-wire Hands-free Quadra And Maxi 8461X

€620.71
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion
Items Available: 5
Altre disponibilità dal produttore
qty

Kit Single-family Video Door Phone Comelit 2-wire Hands-free Quadra And Maxi 8461X

€620.71

Buy it within and receive it from Thursday, 25 September
Two-year warranty
Secure Payment
Easy return within 14 days
Purchase with tax breaks

Frequently bought together

Technical specifications of the KIT components:



DOOR STATION KIT QUADRA VIDEO. S2 4893M

  • Quadra series wall-mounted video door entry unit
  • Die-cast aluminium front panel, wide-angle colour camera and single LED for night lighting
  • Mechanical keys with possibility of setting from 1 to 4 call keys via DIP-switch
  • LED signalling for call sent, door opener activated, speech activated and system busy
  • Loudspeaker volume and speech balance adjustment
  • Power supply from bus line
  • Dimensions: 95x195x28 mm.

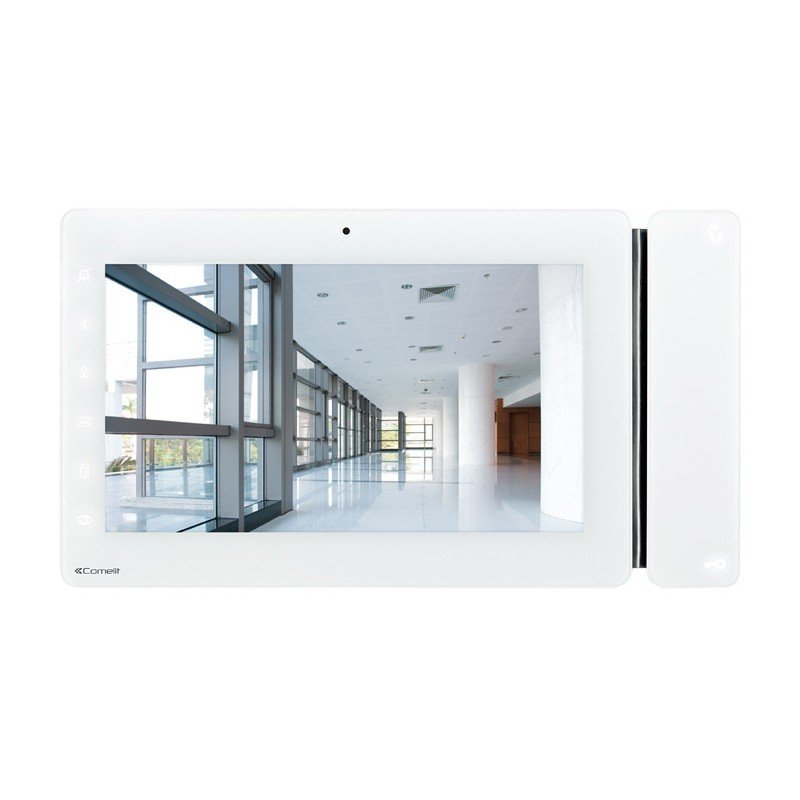

2-WIRE MAXI VIDEOINTERCOM 6801W

  • Flush-mounting (using optional box item 6817) or wall-mounting (with optional bracket item 6820) Maxi colour monitor with 7" / 16:9 screen, full-duplex hands-free phonic and touch-sensitive controls.
  • Brightness, contrast, audio volume and ringer volume can be adjusted.
  • It is possible to customize the ringtone by choosing between different melodies
  • Equipped as standard with door opener button, phonic enable/disable button with relevant signalling LEDs and 6 other buttons for auto switch-on, privacy service and other programmable functions
  • Standard management of out-of-door call and call repetition and complete with 2 8-position dip-switches for programming the user code and button programming.
  • Equipped with upright shunt terminal Art. 1214/2C
  • The monitor can be used on Simplebus2 2-wire digital systems.
  • Dimensions (L x H x D): 223x124x25 mm.

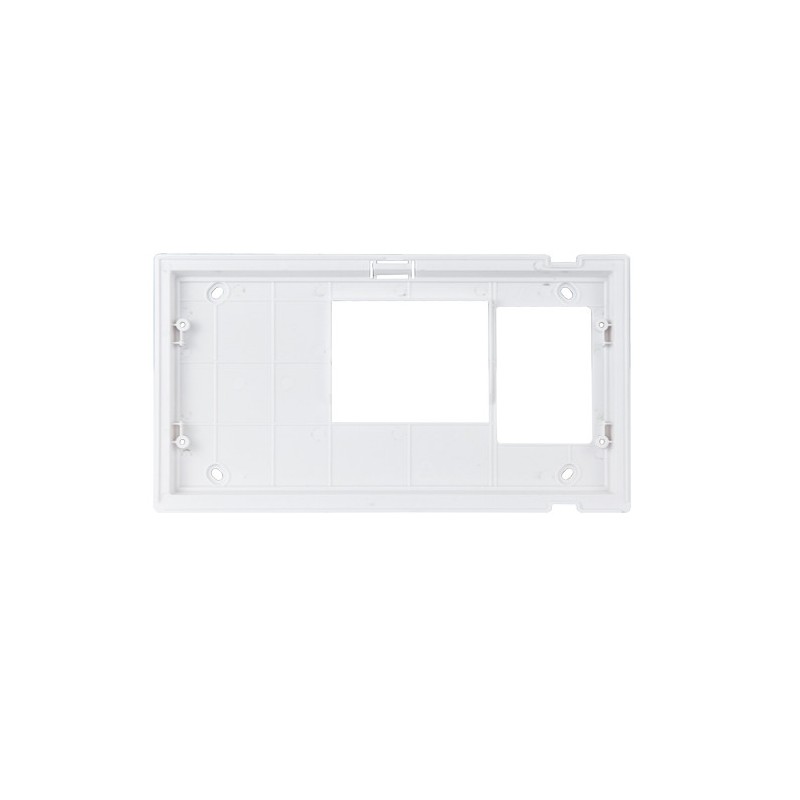

WALL BRACKET FOR MAXI S2 AND VIP 6820 MONITORS

  • Wall bracket for Maxi monitors in UV resistant ABS.
  • Colour white RAL9003
  • Dimensions (W x H x D): 216.4x117.5x14 mm.

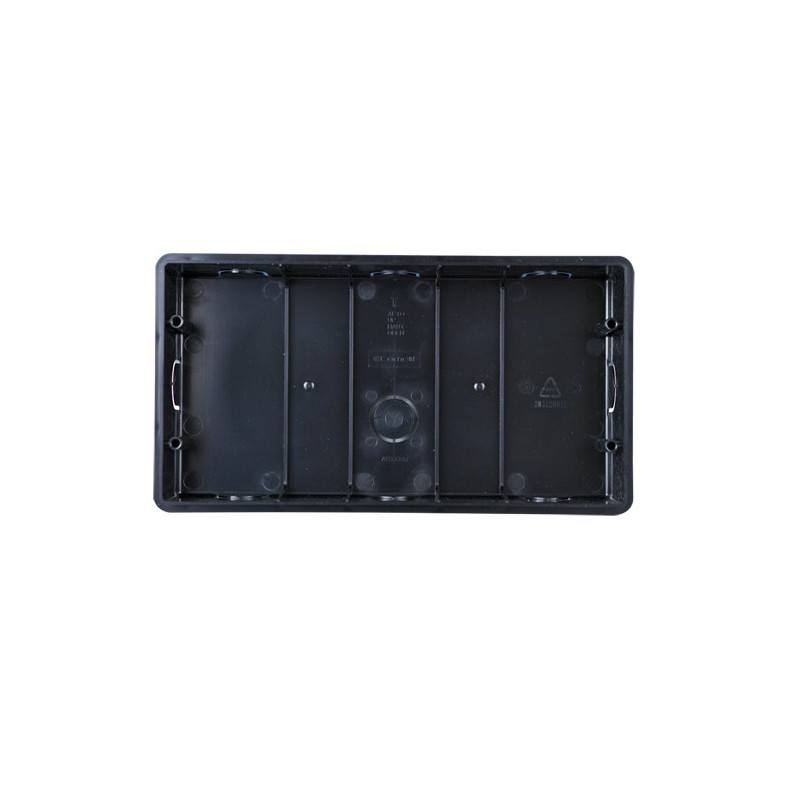

RECESSED BOX FOR MAXI MONITOR 6817

  • Recessed box for Maxi monitor in black ABS plastic
  • Dimensions (W x H x D): 212x115x50mm.

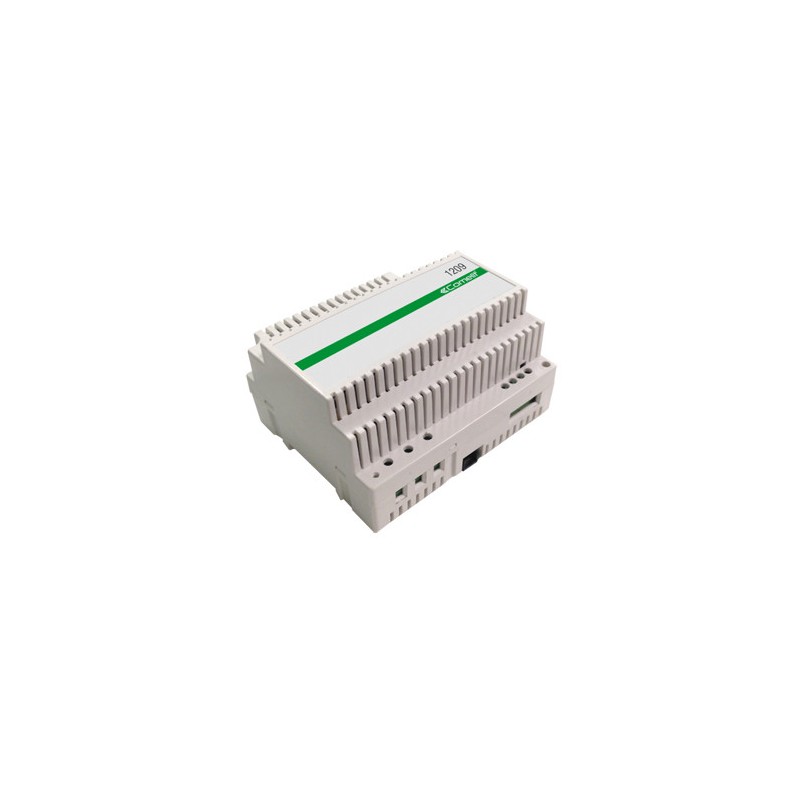

VIDEO KIT POWER SUPPLY. S2 1209

  • 33 VDC power supply for 2-wire kit for direct connection to door unit and apartment station.
  • Equipped with overload and short-circuit protection
  • Input voltage 110-240 VAC
  • Dimensions: 106 x 62 x 89 mm (6 DIN modules).

SIMPLEBUS2 TERMINATION TERMINAL 1216

  • Line termination terminal
  • Supplied with the mixer (4 pcs)
  • To be mounted at the end of the riser, according to the indications in the technical documentation, to optimise signal distribution

Kit videocitofono di buona fattura ed esteticamente gradevole

Read all reviews

Data sheet

KIT:
Video Doorphone Kit
Model:
Single-family house
System:
2-Wire
