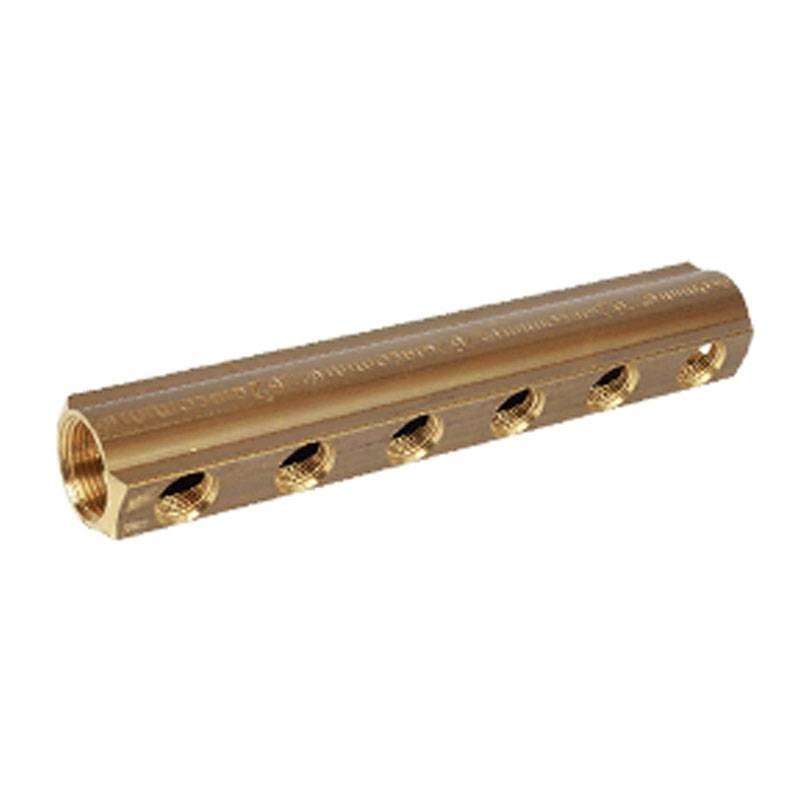

Giacomini brass distribution manifold F/F 1 1/4 x 3/4 3 connections R551Y103
GIA R551Y103
8009902299743
Giacomini brass distribution manifold with female threaded main and branch connections with the following features:
- Connection: Female/Female
- Fittings: 1 inch 1/4 x 3/4
- Maximum working pressure: 16 bar
- Center distance 70 mm
- Number of detachments: 3
- Material: Brass
Giacomini brass distribution manifold F/F 1 1/4 x 3/4 3 connections R551Y103
€25.71
Tax included
€25.71
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 23
: 3
R551 manifolds in sizes 3/4, 1 inch and 1 inch 1/4, can be mounted inside R500 boxes with R588 support clamps or inside R500-2 boxes with R588Z support clamps. To intercept the flow and facilitate any maintenance work, male threaded ball shut-off valves or intermediate manifold fittings can be installed at the inlet of the manifold. End assemblies or end caps for manifolds can be installed at the end of the manifold.
There are no reviews
Data sheet
- Type:
- Modular Manifolds
- Connection:
- F/F
- Hoses:
- 1-1/4
3/4
