Far 3753 coplanar manifold right chrome 3/4" with valves 3753 34
FRU 3753 34
8032628352683

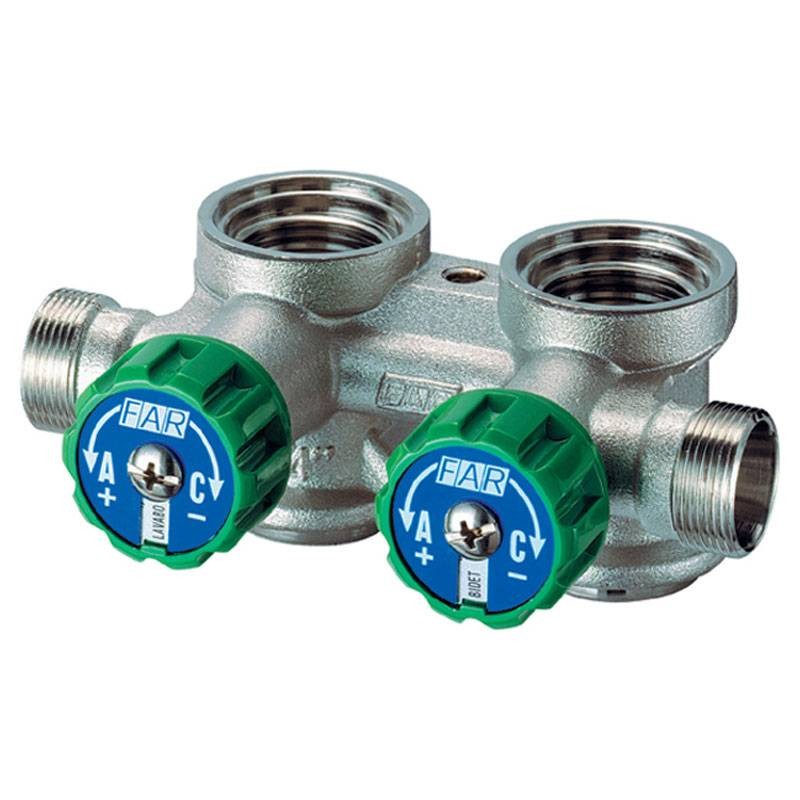

Far 3753 right chromed coplanar manifold with stop valves size 3/4" inch, 2 branches.
Each manifold comes with M8 clamping screw and ORING for coupling.
Interchangeable connections for copper, plastic and multilayer pipe.
Far 3753 coplanar manifold right chrome 3/4" with valves 3753 34
€27.02
Tax included
€27.02
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 50
Pay in installments with Klarna
SPECIFICATION ITEMS:
- Chromed brass modular coplanar right (return) manifold with 2 outlets for sanitary, heating or cooling systems, with 3/4 connections, M8 clamping screw and o-ring for coupling, shut-off valves having: double o-ring seal on the Rod, rubber shutter plate and hand wheel with two silk-screened discs for user or circuit identification; outlets with interchangeable connection for copper, plastic and multilayer pipe 45mm spacing. Max operating temperature 95°C. Max working pressure 10 bar.
FAR coplanar manifolds are of the modular type and, thanks to the careful study of the coupling system, sealing characteristics and materials used, guarantee great versatility of use. Two versions are available, a traditional version without stops and a version with stops where it is possible, through a handwheel placed on each branch, to open or close the water passage within the connected utilities.
Features:
- Manifold body material: brass CB753S
- Max operating temperature: 95°C
- Pressure rating: 10 bar
- Usable fluids: Water
Coplanar manifolds with stops are suitable for installation on sanitary water systems. Compared to conventional ones, they have built-in valves on the branches for closing and opening individual connected utilities for any installation, maintenance or replacement work.
There are no reviews
Data sheet
- Type: Modular Manifolds
- Hoses: 3/4
