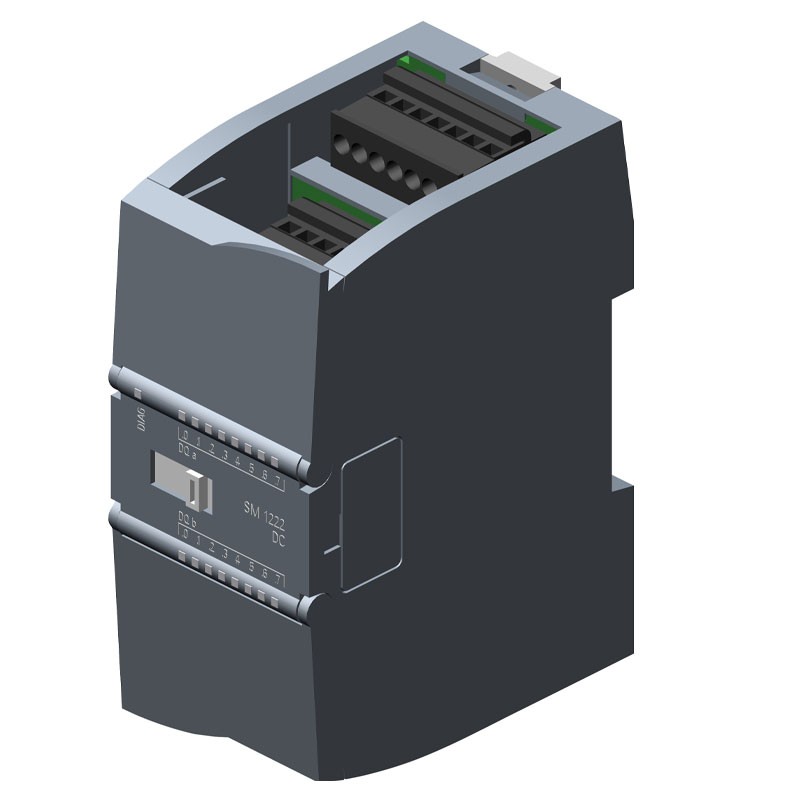

Siemens S7-1200 SM1222 16DO 24VDC Output Module 6ES72221BH320XB0

Brand: Siemens

Cod: SIE 6ES72221BH320XB0 EAN: 6940408101951

Digital output module Siemens S7-1200 SM 1222, DQ 16x24 VDC/0.5 A, with the following characteristics:

Supply voltage: Allowable range, lower limit (DC) 20.4V - Allowable range, upper limit (DC) 28.8V
Input current from the backplane bus DC 5 V, max. 140 mA
Power dissipation: typ. 2,5W
Digital outputs: 16
Short-circuit protection No (to be provided externally)
Limitation of opening inductive extra voltage on tip. (L+) -48 V
Output voltage: Nominal value DC 24V, for signal "0," max. 0.1V; with load of 10 kOhm, for signal "1," min. DC 20V
Output current: for signal "1" nominal value 0.5A - for signal "0" residual current, max. 10 µA
Cable length: with shielding, max. 500 m - without shielding, max. 150 m
Diagnostic alarm: yes

€231.57 Tax included

€231.57

€231.57
Tax included

EXTRA

Add the coupon code in the payment page

Limited-time promotion

Items Available: 50

Pay in installments with Klarna

Two-year warranty

Easy return within 14 days

Are you a professional ?

Request access to

Other technical features:

LED diagnostic display for output status: yes
IP20 degree of protection
Free fall: Drop height, max. 0.3 m; five times, in shipping packaging
Ambient temperature for storage/transportation: -40/+70°C
Atmospheric pressure according to IEC 60068-2-13: Storage/transport, min. 660 hPa - Storage/transport, max. 1 080 hPa
Relative humidity: Operating at 25 °C without condensation, max. 95 %.
Front connector required
Housing material: plastic
Dimensions: Width 45mm - Height 100mm - Depth 75mm
Weight: 220 grams approx.
