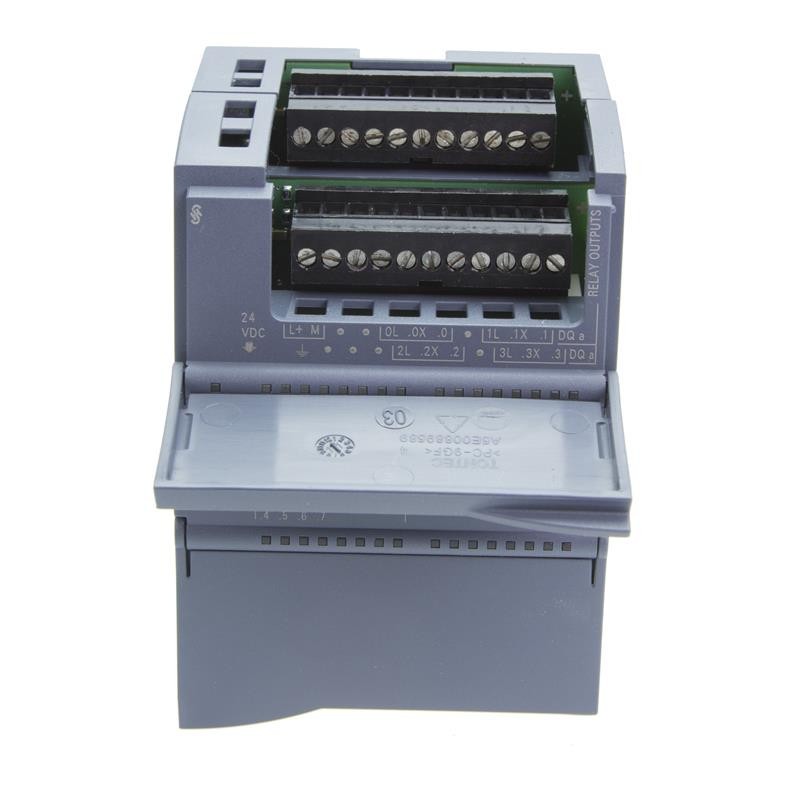

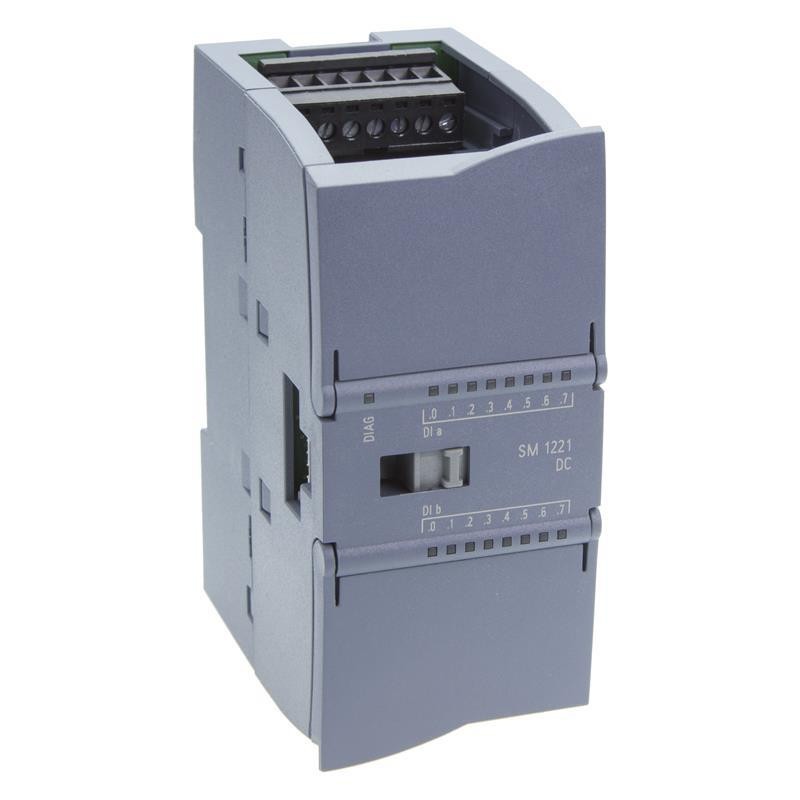

Siemens S7-1200 SM1221 16DI 24VDC Output Module 6ES72211BH320XB0
SIE 6ES72211BH320XB0
Siemens S7-1200 output module, with the following characteristics:
- Input current: from the backplane bus DC 5V, max. 130mA
- Digital inputs: from load voltage L+ (no load), max: 4mA per channel
- Product function/supply voltage for transmitter: YES
- Power dissipation: typ. 2,5W
- Digital inputs: number of inputs 16 - in groups of 4
- Input characteristic according to IEC 61131, Type 1: SI
- Degree of protection IP20
Siemens S7-1200 SM1221 16DI 24VDC Output Module 6ES72211BH320XB0
€312.93
Tax included
€312.93
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 97
: 3
Pay in installments with Klarna
Other technical features
- Siemens series
- Free fall: drop height, max. 0.3 m; five times, in shipping packaging
- Connection technique/header: front connector required: yes
- Mechanics/material: housing material (on the front side): plastic Yes
- Ambient temperature for storage/transport: min -40 °C - max +70 °C
- Atmospheric pressure according to IEC 60068-2-13: Storage/transport, min 660 hPa - Storage/transport, max 1 080 hPa
- Operation at 25 °C without condensation, max: 95 %
Supply voltage:
- Rated value (DC) 24V
- Allowable range, lower limit (DC) 20.4V
- Allowable range, upper limit (DC) 28.8V
Input voltage:
- Rated value (DC) 24V
- for signal "0" DC 5 V with 1 mA
- for signal "1" DC 15 V with 2.5 mA
Input current:
- for signal "0", max. (allowable quiescent current) 1 mA
- for signal "1," min. 2.5 mA
- for signal "1", typ. 4 mA
Ambient temperature in operation:
- Min -20 °C
- Max 60 °C
- Allowable temperature variation 5°C ... 55°C, 3°C / minute
Dimensions and weights:
- Width 45 mm
- Height 100 mm
- Depth 75 mm
- Weight: about 210 grams
There are no reviews
Data sheet
- Type: Digital output module
