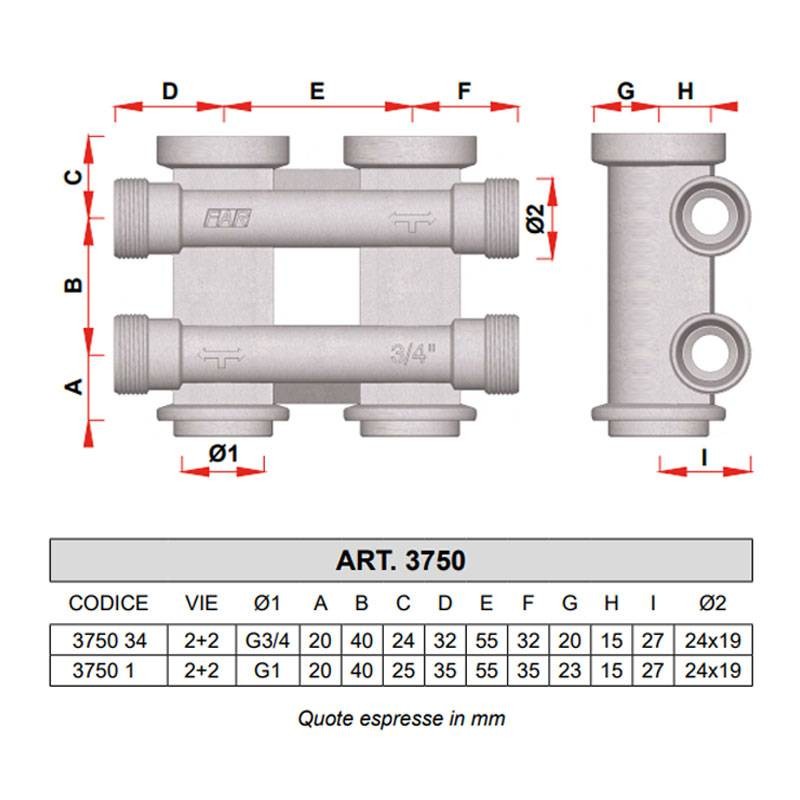

Far 3750 3/4" chrome-plated sectional coplanar manifold 3750 34
FRU 3750 34
Far 3750 coplanar manifold:
- 3/4" size
- Compound chrome plated
- 2+2 branch
- Interchangeable connections for copper, plastic and multilayer pipe
Each manifold comes with M8 clamping screw and ORING for coupling.
Far 3750 3/4" chrome-plated sectional coplanar manifold 3750 34
€24.67
Tax included
€24.67
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 80
SPECIFICATION ITEMS:
- Modular coplanar manifold, for heating and cooling systems, made of chrome-plated brass with M8 clamping screw and o-ring for coupling, 3/4 or 1 connections, branches with interchangeable connection for copper, plastic and multilayer pipe.
FAR coplanar manifolds are modular in design, and thanks to the careful study of the coupling system, sealing characteristics and materials used, they guarantee great versatility of use. Two versions are available, a traditional version without stops and a version with stops where it is possible, through a handwheel placed on each branch, to open or close the passage of water to the inside of the connected utilities.
Features:
- Manifold body material: brass CB753S
- Max operating temperature: 95°C
- Pressure rating: 10 bar
- Usable fluids: Water.
There are no reviews
Data sheet
- Type:
- Modular Manifolds
- Hoses:
- 3/4
