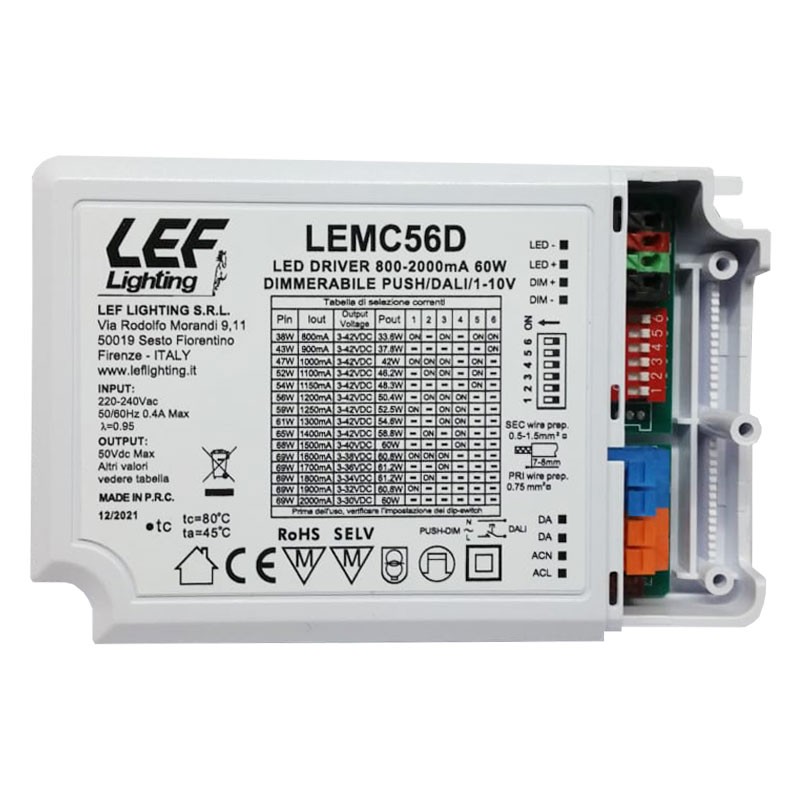

LEF 33.6-60W 800-2000MA multi-current LED power supply unit dimmable LEMC56D
LEF LEMC56D
8054521530227
LEF multicurrent LED power supply:
- 33.6 to 60W output power
- Output current from 800-2000mA
- Dimmable
- Mains frequency 50-60Hz
- PUSH DALI 1-10V POT470K control
- Output voltage 3-42VDC to 3-30VDC
LEF 33.6-60W 800-2000MA multi-current LED power supply unit dimmable LEMC56D
€62.31
Tax included
€62.31
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 3
: 2
Pay in installments with Klarna
Features:
- Input voltage 220-240Vac
- Input frequency 50÷60Hz
- Constant output current 800÷2000mA (settable via micro-switches)
- Factory setting: 2000mA
- Brightness adjustment via: - button (PUSH 230Vac) - DALI signal - 1-10V signal - 470Kohm potentiometer
- "LEVEL MEMORY" and "STATUS MEMORY" function (The power supply after a power failure turns back on to the state it was left in previously)
- Synchronization of multiple power supplies via wiring (max 10 SLAVE)
- Open circuit protection (OCP)
- Over-temperature protection (OTP)
- Short circuit protection (SCP)
- Power factor factor (PFC) 0.95
- Ambient operating temperature Ta -10°C/+40°C
- Maximum temperature at point Tc 75°C
- Plastic enclosure
- Power supply unit for independent use
- Electrical class of protection II
- Degree of protection IP40
There are no reviews
Data sheet
- Type: Power supplies
- Voltage: 3/42V-3/30V
- Shape: Rectangular
- Degree of protection: IP40
- Watts: 51 to 100W
- Dimmable: Si
