Far Manifold with Manual Stops 3825 MF 2-Way 3/4" 3825 34
FRU 3825 34

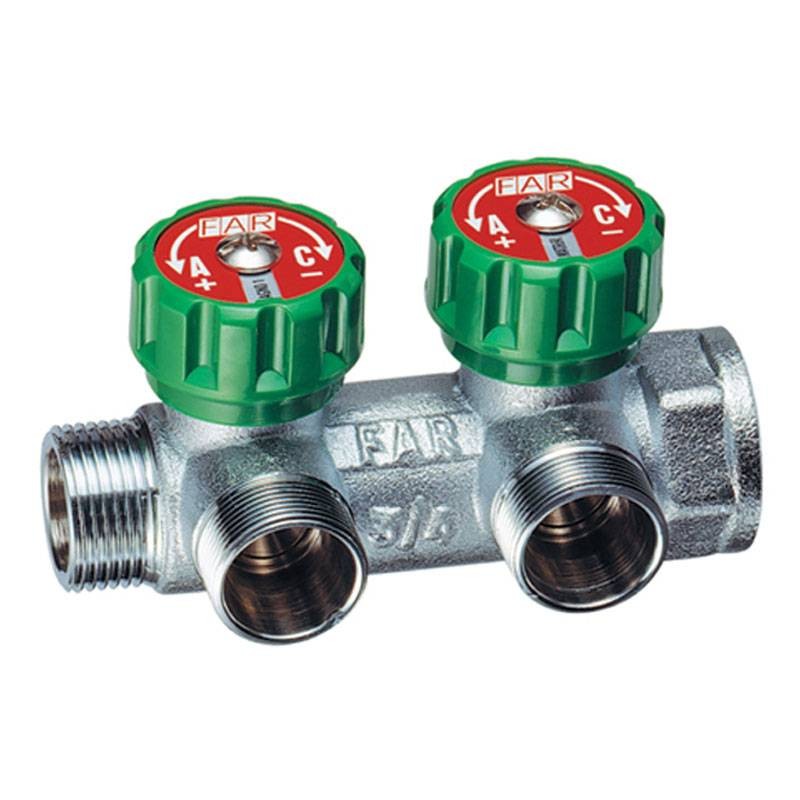

Far Multifar 3825 chrome-plated sectional manifold, for plumbing or heating systems, with manual 2-lead stops:
- Interchangeable connections for copper, plastic and multilayer pipe
- Side connections: 3/4 male-female
- Branch spacing: 45 mm
Each stop is equipped with a handwheel with two silk-screen-printed discs with which the utility connected to each branch can be identified.
Far Manifold with Manual Stops 3825 MF 2-Way 3/4" 3825 34
€19.14
Tax included
€19.14
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 59
Pay in installments with Klarna
TENDER ITEMS: Chromed brass modular Multifar manifold with 2 outlets for sanitary, heating or cooling systems, with 3/4 male-female side connections, shut-off valves having: double o-ring seal on the Rod, rubber shutter plate and handwheel with two screen-printed discs for user or circuit identification; outlets with interchangeable connections for copper, plastic and multilayer pipe, 45 mm spacing. Max. operating temperature 95°C. Max operating pressure 10 bar.
Overview: MULTIFAR manifolds are modular manifolds with built-in stops or lockshields that can be used on sanitary water systems and heating systems. Shut-offs located on each branch allow connected utilities to be directly excluded from the inspection box for any work, such as installation, maintenance or replacement. Installed in distribution boxes, they feature valve control knobs and lockshield adjustment screw on the front, allowing the user convenient operation.
There are no reviews
Data sheet
- Type: Modular Manifolds
- Connection: M/F
- Hoses: 3/4
