Comelit CIAO MINI 2 wires single family intercom kit KCA2061A

Brand: Comelit

Cod: COE KCA2061A EAN: 8023903383980

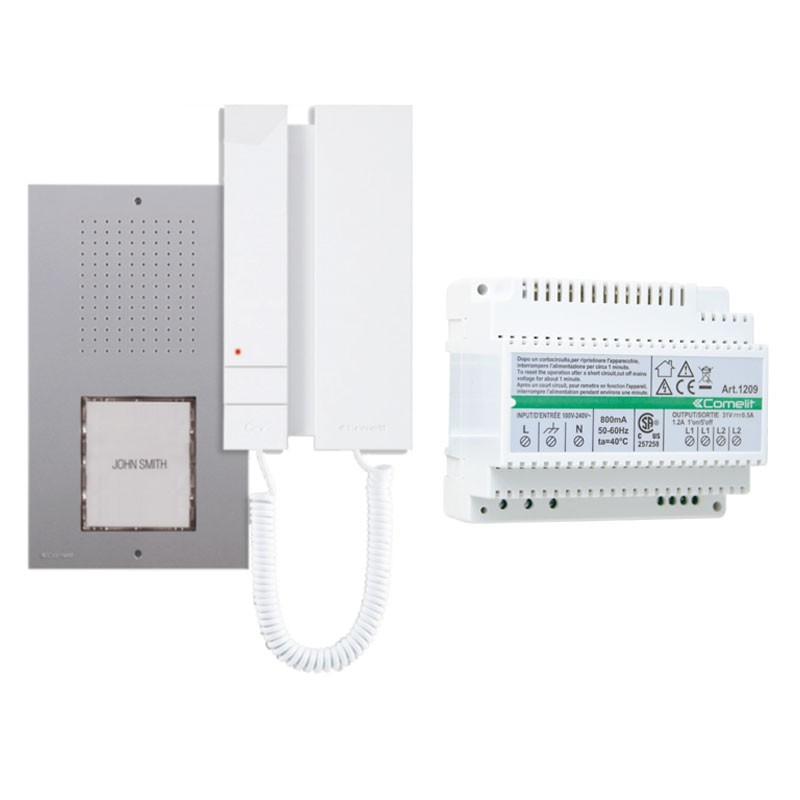

Single-family intercom KIT CIAO MINI Comelit, with 2-wire handset.

The kit includes:

1 piece outdoor push-button panel Ciao series (code CA2100A).
1 piece Mini series intercom with handset for Simplebus 2 audio systems (code 2738W/A), and from all the necessary accessories for the implementation of the system
1 piece power supply unit SIMPLEBUS2 VIDEO KIT (code 1209)

It is possible to expand the kit with outdoor pushbuttons and intercoms.

Suitable for installation in residences, businesses or offices.

The kit is supplied already programmed and ready to use.

Comelit CIAO MINI 2 wires single family intercom kit KCA2061A

€156.56 Tax included

€156.56

Comelit CIAO MINI 2 wires single family intercom kit KCA2061A

€156.56
Tax included

-20€

EXTRA

Add the coupon code in the payment page

Limited-time promotion

Items Available: 89

: 4

Altre disponibilità dal produttore

Pay in installments with Klarna

Two-year warranty

Easy return within 14 days

Purchase with tax breaks

Are you a professional ?

Request access to

Description

KIT component specifications:

1 piece Ciao series outdoor pushbutton panel (code CA2100A): Ciao series audio outdoor pushbutton panel for Simplebus 2 system and arranged for 1 to 8 call systems. Front panel made of technopolymers, weatherproof (IP54 rating and paint with anti-UV treatment) and vandal-resistant (IK08 rating). Smart button programming function. Wall mounting bracket included. Pushbuttons for 1-, 2-, 4- or 8-call configurations purchased separately. Up to 4 pushbutton modules art. CA2200A can be placed side by side (either horizontally or vertically) to the pushbutton panel up to a maximum number of 72 call buttons.

Technical characteristics of the push-button panel:

Monoblock type
Height (mm) 172
Width (mm) 100
Depth (mm) 28
Color gray RAL 9006
Type coating materials Technopolymer
Wall mounting Yes
Compatible systems: Audio Simplebus 2 with power supply (code 1210/1210A)
Microphone 4mm (ø), Omnidirectional
Speaker 50mm (ø), 8 ohms, 0.2 watts
Power supply type: Power supply from video intercom bus
Supply voltage 33VDC
Stand-by power consumption 1.7W
Maximum power consumption 7.6W
Type of call Buttons
Type of buttons Mechanical
Number of buttons (n°) 8 C
oor of backlighting White Terminals L L COM DO RTE C NO NC SE+ SE
Removable terminals Yes
Number of inputs (no.) 2
Number of outputs (no.) 1
Type of outputs Relay (C-NO-NC, 4A@12÷24 VAC/VDC, inrush 10A), SE: unlock pulse of 4A, hold current of 200mA for 12VAC/DC locks (maximum impedance 18 Ohm)
Speaker volume Yes
Backlight brightness Yes
Degree of protection IP54
Vandal-proof degree of protection IK08
Operating temperature: -25/+55°C
Operating humidity (RH max) (%) 20 ÷ 95
Environmental class IV Certifications CE RoHS II - 2011/65/EU (EN IEC 63000:2018), EMC 2014/30/EU (EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011
Door opener Yes
Number of auxiliary relays (n°) 1
Input for local door opener button Yes
Input for door open signaling Yes
Visual signals system status Yes
Audible signals system status Yes
Voice synthesis system status Yes

1 piece Mini series intercom with handset for Simplebus 2 audio systems (code 2738W/A): Mini seriesintercom with handset for Simplebus 2 audio systems. It is equipped with door opener button, button for additional services such as calls to concierge switchboard..., call volume adjustment, Silent (Privacy) mode and floor call input. The attachment of the handset to the base plate is facilitated by invisible magnetic inserts. It is possible to purchase separately additional board item no. 2735 to have an additional button with voltage-free contacts and call repetition. Equipped with terminal code 1214/2C.

Technical characteristics of the intercom:

Height (mm) 190
Depth (mm) 28
Type ABS coating materials
Weight: 300 grams
Wall mounting Yes
Table base mounting Yes, with dedicated accessory
Compatible systems: Audio/video Simplebus 2 with power supply item 4888C Yes Audio/video Simplebus 2 with power supply item 1210/1210A Yes Audio/video Simplebus 2 kit with power supply item 1209 Yes Audio Simplebus 2 with power supply item 1210/1210A Yes
Microphone 9.6 (ø) x 6.9mm, omnidirectional
Speaker 50mm (ø), 50 ohms, 0.25 watts
Implemented Technologies Full-Duplex
Power supply type Power supply from video intercom bus
Supply voltage 22÷35VDC
Maximum power consumption 0.8 Watt
Type of buttons Mechanical
Service buttons Door opener
Terminals L L CFP CFP
Number of inputs 1
Chime volume Yes
Operating temperature (°C) -5/+40°C
Operating humidity (RH max) (%) 25 ÷ 90
Environmental class III CE RoHS certifications II - 2011/65/EU (EN IEC 63000:2018), EMC 2014/30/EU (EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011)
Door opener Yes
Absorption in call (mA) 25
Current consumption in communication (mA) 20
Maximum current consumption (mA) 25
Minimum current consumption (mA) 1
Call to switchboard Yes
Actuator control Yes Input for out-of-door call Yes
Silent Mode (Privacy) Yes

1 piece power supply unit KIT VIDEO SIMPLEBUS2 (code 1209): 33 VDC power supply for 2-wire KIT to which the door station and indoor station can be directly connected. Equipped with overload and short circuit protections. Input voltage 110-240 VAC. Dimensions: 106 x 62 x 89 mm (6 DIN modules).

Power supply features:
