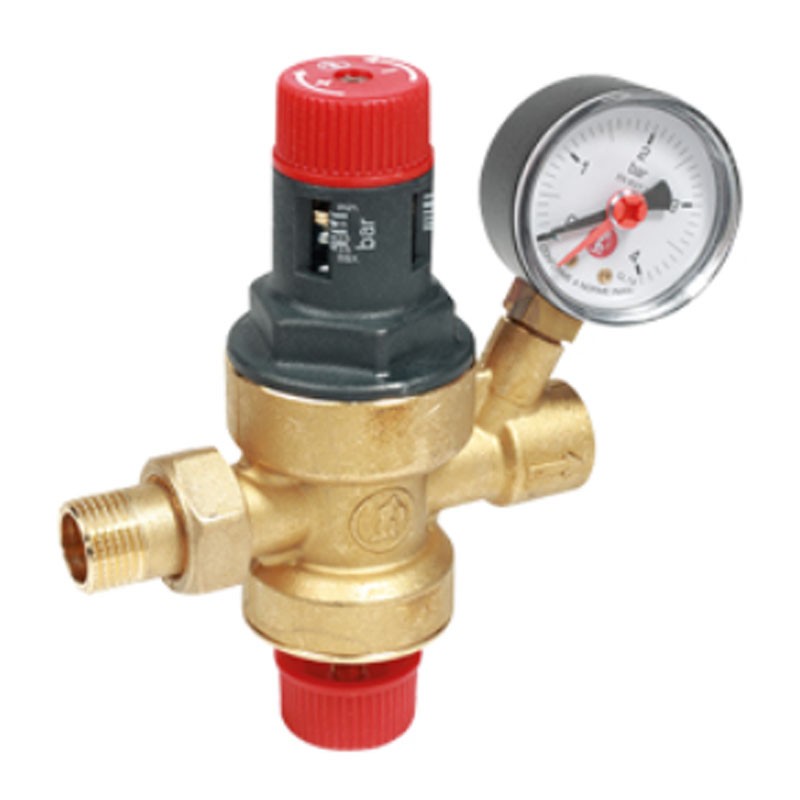

Giacomini automatic filling unit 1/2Mx1/2F R150MY003
GIA R150MY003
8009902312206
Giacomini automatic filling group for installation on water adduction pipe in closed circuit heating/cooling systems. Size 1/2 "M x 1/2 "F - with manometer.
Possibility of presetting the fluid pressure of the system. Removable cartridge and filter to facilitate cleaning and maintenance operations.
Antiscale function and pressure adjustment function with compensated seat.
Giacomini automatic filling unit 1/2Mx1/2F R150MY003
€47.72
Tax included
€47.72
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 108
: 5
Pay in installments with Klarna
The R150M unit is a device that is installed on the water adduction pipe in closed circuit heating/cooling systems, with automatic filling function.
Features:
- Giacomini series
- Working fluid: water
- Temperature range: 5÷70 °C
- Maximum inlet pressure: 16 bar ISO 9001 0006/7
- Adjustment range: 0,3÷4 bar (factory setting: 1,5 bar)
- Accuracy: ± 0,2 bar
- Filtering capacity: 300 μm
- Manometer scale (only for R150MY003): 0÷4 bar
Connections:
- Inlet: 1/2 "M with pipe union
- Outlet: 1/2 "F
- Manometer: 1/4 "F
Materials:
- Body: brass CW617N - UNI EN12165
- Upper screw and red knobs: PA66 GF 20
- Adjusting rod: stainless steel AISI304
- Gaskets: EPDM
- Cartridge: POM Filter: stainless steel
Data sheet
- Type: Filling units
