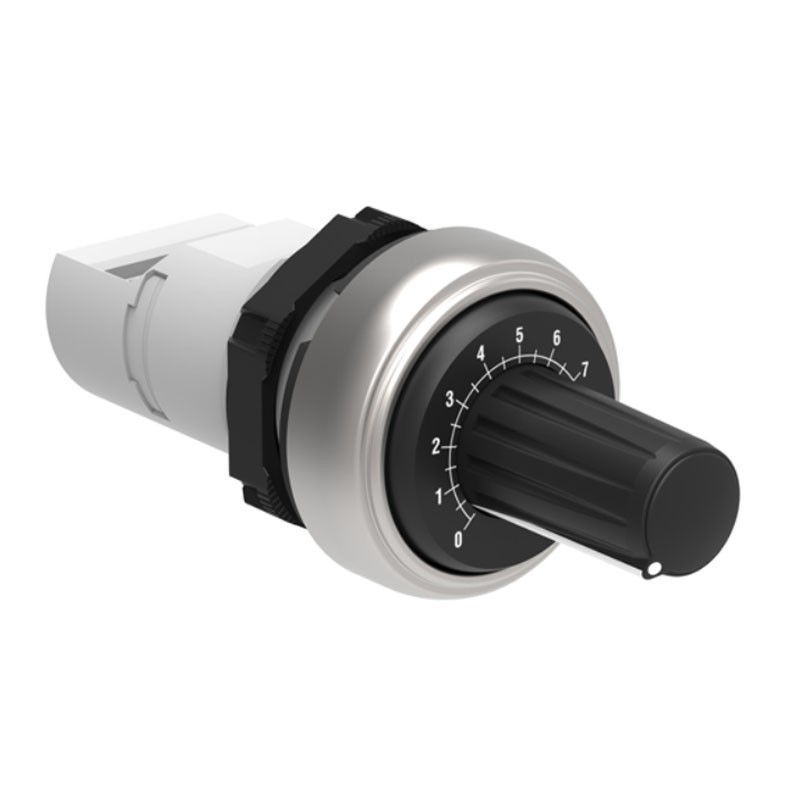

Lovato monoblock potentiometer 10KOHM LPCPA010
LOV LPCPA010
8013975215296
Lovato monoblock potentiometer with the following characteristics:
- IEC/EN rated insulation voltage Ui: V 250 V AC
- Rated impulse withstand voltage Uimp: kV 4
- Maximum power: 1W
- Resistance value : KΩ 10
- Material: Polyamide - Resistive material: cermet
- IEC Degree of Protection : IP66, IP67; IP96K on the front side and IP20 on the back side
- Mechanical travel: °290
- Weight: 40 grams
- UL degree of protection: 1, 2, 3R, 4, 4X, 12, 12K on the front side
- Operating temperature: min °C -25 - max °C +70
- Storage temperature: min °C -40 - max °C +85
- Resistance tolerance: % ±10%
Lovato monoblock potentiometer 10KOHM LPCPA010
€34.82
Tax included
€34.82
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 145
: 30
Pay in installments with Klarna
Potentiometer monoblock Lovato 10K. The potentiometers are used to adjust the parameters of multiple devices (e.g. speed of electric motors by static converters). The design of the body in the format of the monobloc allows the possibility of using iretto of potenzio meter through panel mounting with nut and subsequent tightening of the cables into the terminal box built-in. The potentiometer is made with technology Cermet which ensures stability and constancy of the resistance values from 1 to 500 kOhm. I know not all IP66,IP67 and IP69k.
